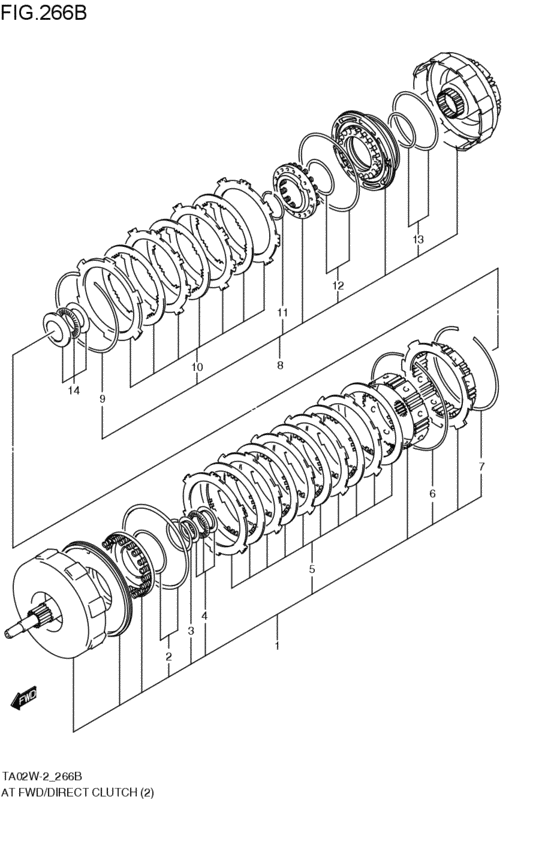

at - forward / direct clutch (AT:H25A; 2000-04-01~2002-09-01) Diagram Suzuki ESCUDO
- Year
- 2000
- Sales region
- Japan
- Engine
- H25A
- drive
- 4WD
- transmission
- AT
- Number of doors
- 5DR
- grade
- D2
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
26601-57B10-000
クラッチアッシ,マルチプルディスク
AT:H25A; 2000-04-01~2000-07-01 |
26601-57B10-000 |
— | ||
| replacements | |||||
|
1
|
1
26601-57B11-000 CLUTCH ASSY,FWD MULTIPLE DISKAT:H25A; 2000-04-01~2000-07-01 |
26601-57B11-000 |
US $1,458.56 |
||
|
1
|
1
26662-65DT0-000 BEARING SET,THRUST N0.8AT:H25A; 2000-04-01~2000-07-01 |
26662-65DT0-000 |
from US $44.33 |
||
|
1
|
1
26601-57B11-000 CLUTCH ASSY,FWD MULTIPLE DISKAT:H25A; 2000-07-01~2002-09-01 |
26601-57B11-000 |
US $1,458.56 |
||
|
2
|
2
26622-65DT0-000 O-RING SET,CLUTCHAT:H25A; 2000-04-01~2002-09-01 |
26622-65DT0-000 |
from US $20.86 |
||
|
3
|
3
26691-57B00-000 RING,RETAINING RETURN SPRINGAT:H25A; 2000-04-01~2002-09-01 |
26691-57B00-000 |
from US $7.94 |
||
|
4
|
4
26661-57BT0-000 BEARING SET,THRUST NO.7AT:H25A; 2000-04-01~2002-09-01 |
26661-57BT0-000 |
US $47.10 |
||
|
5
|
5
26631-65DU0-000 PLATE SET,DIRECT CLUTCHAT:H25A; 2000-04-01~2002-09-01 |
26631-65DU0-000 |
US $647.68 |
||
|
6
|
6
26823-60G10-000 RING,RETAINING O/D CLAT:H25A; 2000-04-01~2002-09-01 |
26823-60G10-000 |
US $5.74 |
||
|
7
|
7
26692-57B01-000 RING,RETAINING BACK PLATEAT:H25A; 2000-04-01~2002-09-01 |
26692-57B01-000 |
from US $11.54 |
||
|
8
|
8
26602-67D30-000 CLUTCH ASSY,DIRECT MULT DISCAT:H25A; 2000-04-01~2002-09-01 |
26602-67D30-000 |
US $1,224.64 |
||
|
9
|
9
26692-57B10-000 RING,DIRECT CLUTCHAT:H25A; 2000-04-01~2002-09-01 |
26692-57B10-000 |
US $14.06 |
||
|
10
|
10
26621-67DT0-000 PLATE SET,DIRECT CLUTCHAT:H25A; 2000-04-01~2002-09-01 |
26621-67DT0-000 |
US $542.08 |
||
|
11
|
11
26691-57B00-000 RING,RETAINING RETURN SPRINGAT:H25A; 2000-04-01~2002-09-01 |
26691-57B00-000 |
from US $7.94 |
||
|
12
|
12
26622-65DT0-000 O-RING SET,CLUTCHAT:H25A; 2000-04-01~2002-09-01 |
26622-65DT0-000 |
from US $20.86 |
||
|
13
|
13
26632-57BT1-000 O-RING SET,DIRECT CLAT:H25A; 2000-04-01~2002-09-01 |
26632-57BT1-000 |
from US $18.59 |
||
|
14
|
14
26662-57BT0-000 BEARING SET,THRUST NO.8AT:H25A; 2000-04-01~2000-07-01 |
26662-57BT0-000 |
US $52.26 |
||
| replacement | |||||
|
14
|
14
26662-65DT0-000 BEARING SET,THRUST N0.8AT:H25A; 2000-04-01~2000-07-01 |
26662-65DT0-000 |
from US $44.33 |
||
|
14
|
14
26662-65DT0-000 BEARING SET,THRUST N0.8AT:H25A; 2000-07-01~2002-09-01 |
26662-65DT0-000 |
from US $44.33 |
||
