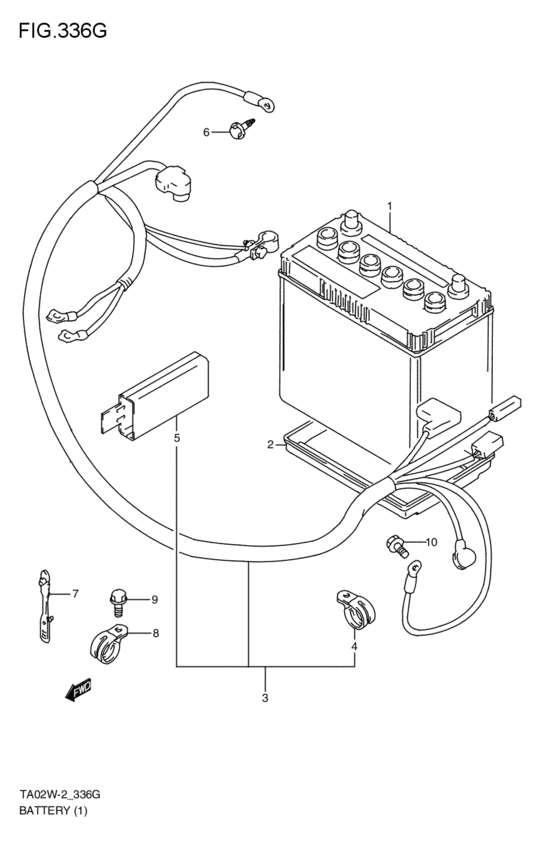

battery (H25A; 2000-04-01~2002-09-01) Diagram Suzuki ESCUDO
- Year
- 2000
- Sales region
- Japan
- Engine
- H25A
- drive
- 4WD
- transmission
- AT
- Number of doors
- 5DR
- grade
- D2
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
33610-77E20-000
バッテリ,55D23LーMF,12V48AH/5HR,FB
FB; H25A; 2000-04-01~2002-09-01 |
33610-77E20-000 |
— | ||
| replacement | |||||
|
1
|
1
33610-77EV8-000
BATTERY ASSY,75D23L (Cannot be supplied)
FB; H25A; 2000-04-01~2002-09-01 |
33610-77EV8-000 |
— | ||
|
2
|
2
33660-60G00-000 TRAY,BATTERYH25A; 2000-04-01~2001-02-01 |
33660-60G00-000 |
from US $8.87 |
||
|
2
|
2
33660-60G40-000 TRAY,BATTERYH25A; 2001-03-01~2002-09-01 |
33660-60G40-000 |
US $13.43 |
||
|
3
|
3
33800-67D10-000
CABLE ASSY,BTRY
H25A; 2000-04-01~2002-09-01 |
33800-67D10-000 |
— | ||
|
4
|
4
36991-77E00-000 Clamp, CableH25A; 2000-04-01~2002-09-01 |
36991-77E00-000 |
US $3.72 |
||
|
5
|
5
36992-65D20-000
PROTECTOR,BTRY CABLE
H25A; 2000-04-01~2002-09-01 |
36992-65D20-000 |
— | ||
|
6
|
6
09115-06001-000 Bolt, lhBolt (6x16) H25A; 2000-04-01~2002-09-01 |
09115-06001-000 |
US $0.86 |
||
| replacement | |||||
|
6
|
6
09115-06005-000 BOLT(6X16)H25A; 2000-04-01~2002-09-01 |
09115-06005-000 |
from US $0.86 |
||
|
7
|
7
09407-05403-000 CLAMP,L:88H25A; 2000-04-01~2002-09-01 |
09407-05403-000 |
from US $0.91 |
||
|
8
|
8
36649-67D00-000 CLAMP,BTRY CABLEH25A; 2000-04-01~2002-09-01 |
36649-67D00-000 |
US $3.39 |
||
|
9
|
9
01550-06163-000
Bolt
H25A; 2000-04-01~2002-09-01 |
01550-06163-000 |
— | ||
| replacements | |||||
|
9
|
9
01550-0616B-000 BoltH25A; 2000-04-01~2002-09-01 |
01550-0616B-000 |
from US $0.76 |
||
|
9
|
9
01550-0616A-000 BoltH25A; 2000-04-01~2002-09-01 |
01550-0616A-000 |
from US $0.76 |
||
|
10
|
10
01550-08163-000
Bolt, holder
H25A; 2000-04-01~2002-09-01 |
01550-08163-000 |
— | ||
| replacements | |||||
|
10
|
10
01550-0816B-000 BoltH25A; 2000-04-01~2002-09-01 |
01550-0816B-000 |
from US $0.91 |
||
|
10
|
10
01550-0816A-000 BoltBolt, rear H25A; 2000-04-01~2002-09-01 |
01550-0816A-000 |
from US $0.91 |
||
