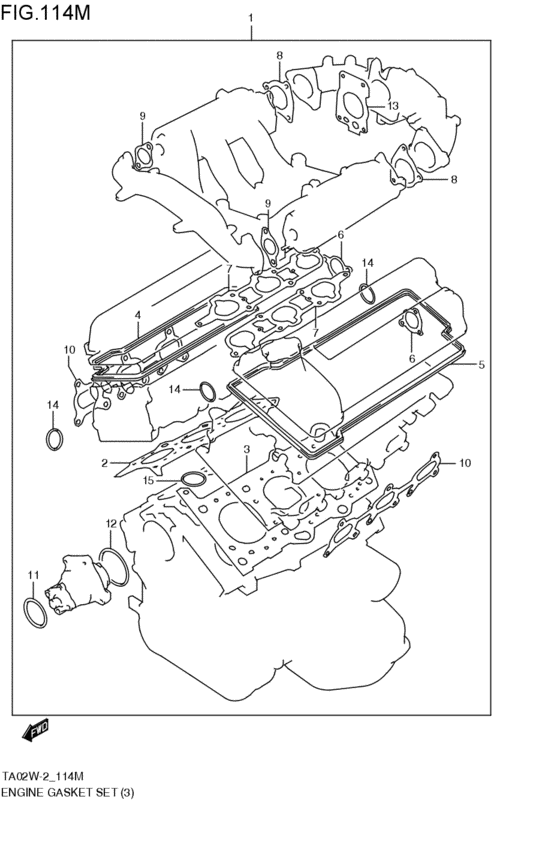

engine gasket set (H25A; 2000-04-01~2002-09-01) Diagram Suzuki ESCUDO
- Year
- 2000
- Sales region
- Japan
- Engine
- H25A
- drive
- 4WD
- transmission
- AT
- Number of doors
- 5DR
- grade
- D2
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11400-65873-000
ガスケットセット,エンジン
H25A; 2000-04-01~2002-09-01 |
11400-65873-000 |
— | ||
| replacement | |||||
|
1
|
1
11400-65874-000 GASKET SET,ENGINEH25A; 2000-04-01~2002-09-01 |
11400-65874-000 |
from US $348.37 |
||
|
2
|
2
11141-86FA1-000 GASKET,CYL HEAD,RH25A; 2000-04-01~2002-09-01 |
11141-86FA1-000 |
from US $88.97 |
||
|
3
|
3
11142-86FA1-000 GASKET,CYL HEAD,LH25A; 2000-04-01~2002-09-01 |
11142-86FA1-000 |
from US $91.73 |
||
|
4
|
4
11176-85FA0-000 GASKET,CYL HEAD COVER,RH25A; 2000-04-01~2002-09-01 |
11176-85FA0-000 |
from US $28.87 |
||
|
5
|
5
11186-85FA0-000 GASKET,CYL HEAD COVER,LH25A; 2000-04-01~2002-09-01 |
11186-85FA0-000 |
from US $29.09 |
||
|
6
|
6
17579-85FA0-000 GASKET,WTR OUTLET CAPH25A; 2000-04-01~2002-09-01 |
17579-85FA0-000 |
US $12.80 |
||
|
7
|
7
13119-77E00-000 GASKET,INTK MANFH25A; 2000-04-01~2002-09-01 |
13119-77E00-000 |
from US $13.91 |
||
|
8
|
8
13122-67D00-000 GASKET,COLLECTORH25A; 2000-04-01~2002-09-01 |
13122-67D00-000 |
from US $5.47 |
||
|
9
|
9
13139-67D00-000 GASKET,SURGE TANK PIPEH25A; 2000-04-01~2002-09-01 |
13139-67D00-000 |
from US $2.72 |
||
|
10
|
10
14140-67D02-000
ガスケット,エキゾーストマニホールド
H25A; 2000-04-01~2002-09-01 |
14140-67D02-000 |
— | ||
| replacement | |||||
|
10
|
10
14140-67D03-000 GASKET,EXH MANFH25A; 2000-04-01~2002-09-01 |
14140-67D03-000 |
from US $25.38 |
||
|
11
|
11
09280-62003-000 O RING(D:3.5,ID:60.7)H25A; 2000-04-01~2002-09-01 |
09280-62003-000 |
from US $3.42 |
||
|
12
|
12
09280-71003-000 O RING(D:3.5,ID:70)H25A; 2000-04-01~2002-09-01 |
09280-71003-000 |
from US $11.34 |
||
|
13
|
13
13421-77E00-000 GASKET,THROTTLE BODYH25A; 2000-04-01~2002-09-01 |
13421-77E00-000 |
from US $4.68 |
||
|
14
|
14
09280-34005-000 O RING(D:3.5,ID:33.7)H25A; 2000-04-01~2002-09-01 |
09280-34005-000 |
from US $2.08 |
||
|
15
|
15
09280-44008-000 O RING(D:2.4,ID:39.5)H25A; 2000-04-01~2002-09-01 |
09280-44008-000 |
from US $2.81 |
||
