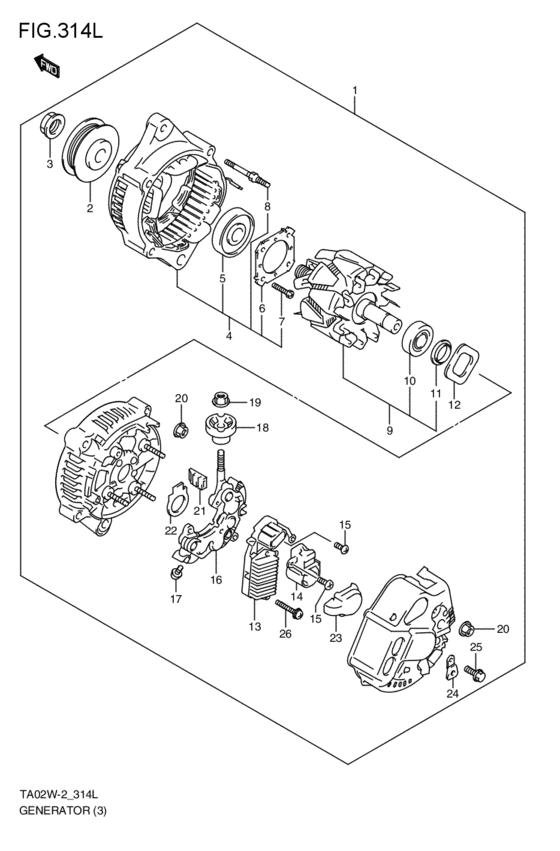

generator (H25A; 2000-04-01~2002-09-01) Diagram Suzuki ESCUDO
- Year
- 2000
- Sales region
- Japan
- Engine
- H25A
- drive
- 4WD
- transmission
- AT
- Number of doors
- 5DR
- grade
- D2
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
31400-77E12-000
ジェネレータアッシ
H25A; 2000-04-01~2002-09-01 |
31400-77E12-000 |
— | ||
| replacements | |||||
|
1
|
1
31400-77E11-REM
Alternator
H25A; 2000-04-01~2002-09-01 |
31400-77E11-REM |
— | ||
|
1
|
1
31400-52D10-REM
Generator assy
H25A; 2000-04-01~2002-09-01 |
31400-52D10-REM |
— | ||
|
1
|
1
31400-52D11-000 GENERATOR ASSYH25A; 2000-04-01~2002-09-01 |
31400-52D11-000 |
US $2,448 |
||
|
2
|
2
31171-77E10-000 PULLEYH25A; 2000-04-01~2002-09-01 |
31171-77E10-000 |
US $47.10 |
||
|
3
|
3
31775-86510-000 NUTH25A; 2000-04-01~2002-09-01 |
31775-86510-000 |
US $2.98 |
||
|
4
|
4
31580-77E10-000
Frame assy,drive end
H25A; 2000-04-01~2002-09-01 |
31580-77E10-000 |
— | ||
| replacement | |||||
|
4
|
4
31580-77E11-000 FRAME ASSY,DRIVE ENDH25A; 2000-04-01~2002-09-01 |
31580-77E11-000 |
US $393.76 |
||
|
5
|
5
31582-77E10-000
Bearing
H25A; 2000-04-01~2002-09-01 |
31582-77E10-000 |
— | ||
| replacement | |||||
|
5
|
5
31582-77E11-000 BEARING,BALLH25A; 2000-04-01~2002-09-01 |
31582-77E11-000 |
US $15.05 |
||
|
6
|
6
31585-77E10-000 RETAINER,BEARINGH25A; 2000-04-01~2002-09-01 |
31585-77E10-000 |
US $6.59 |
||
|
7
|
7
31586-77E10-000 SCREWH25A; 2000-04-01~2002-09-01 |
31586-77E10-000 |
US $1.69 |
||
|
8
|
8
31587-82110-000 BoltH25A; 2000-04-01~2002-09-01 |
31587-82110-000 |
US $10.82 |
||
|
9
|
9
31710-77E10-000
Rotor assy
H25A; 2000-04-01~2002-09-01 |
31710-77E10-000 |
— | ||
| replacement | |||||
|
9
|
9
31710-77E11-000 ROTOR ASSYH25A; 2000-04-01~2002-09-01 |
31710-77E11-000 |
US $478.72 |
||
|
10
|
10
31612-77E10-000
Bearing
H25A; 2000-04-01~2002-09-01 |
31612-77E10-000 |
— | ||
| replacement | |||||
|
10
|
10
31612-77E11-000 BEARING,REARH25A; 2000-04-01~2002-09-01 |
31612-77E11-000 |
from US $9.42 |
||
|
11
|
11
31613-82610-000 COVER,BEARINGH25A; 2000-04-01~2002-09-01 |
31613-82610-000 |
from US $2.98 |
||
|
12
|
12
31615-77E10-000 WASHERH25A; 2000-04-01~2002-09-01 |
31615-77E10-000 |
US $5.89 |
||
|
13
|
13
32500-80G00-000
レギュレータアッシ
H25A; 2000-04-01~2002-09-01 |
32500-80G00-000 |
— | ||
| replacement | |||||
|
13
|
13
32500-80G10-000 REGULATOR ASSYH25A; 2000-04-01~2002-09-01 |
32500-80G10-000 |
US $290.72 |
||
|
14
|
14
31656-77E10-000 HOLDER ASSY,BRUSHH25A; 2000-04-01~2002-09-01 |
31656-77E10-000 |
US $32.20 |
||
|
15
|
15
02112-04063-000
Screw
H25A; 2000-04-01~2002-09-01 |
02112-04063-000 |
— | ||
| replacement | |||||
|
15
|
15
02112-0406B-000 SCREWH25A; 2000-04-01~2002-09-01 |
02112-0406B-000 |
from US $0.76 |
||
|
16
|
16
31621-77E10-000 Rectifier AssyH25A; 2000-04-01~2002-09-01 |
31621-77E10-000 |
US $172.96 |
||
|
17
|
17
31516-77E10-000 SCREWH25A; 2000-04-01~2002-09-01 |
31516-77E10-000 |
US $1.69 |
||
|
18
|
18
31514-77E11-000 INSULATOR,TERMINALH25A; 2000-04-01~2002-09-01 |
31514-77E11-000 |
US $5.67 |
||
|
19
|
19
08361-15063-000
Nut
H25A; 2000-04-01~2002-09-01 |
08361-15063-000 |
— | ||
| replacement | |||||
|
19
|
19
08361-1506A-000 NUTH25A; 2000-04-01~2002-09-01 |
08361-1506A-000 |
from US $0.74 |
||
|
20
|
20
08316-10053-000
Nut
H25A; 2000-04-01~2002-09-01 |
08316-10053-000 |
— | ||
| replacement | |||||
|
20
|
20
08316-1005A-000 NUTH25A; 2000-04-01~2002-09-01 |
08316-1005A-000 |
from US $0.77 |
||
|
21
|
21
31622-77E10-000 INSULATORH25A; 2000-04-01~2002-09-01 |
31622-77E10-000 |
US $5.19 |
||
|
22
|
22
31619-77E10-000 SEAL RINGH25A; 2000-04-01~2002-09-01 |
31619-77E10-000 |
US $4.31 |
||
|
23
|
23
31620-77E10-000 SEAL RINGH25A; 2000-04-01~2002-09-01 |
31620-77E10-000 |
US $20.24 |
||
|
24
|
24
31512-77E10-000 PLATE,TERMINALH25A; 2000-04-01~2002-09-01 |
31512-77E10-000 |
US $2.91 |
||
|
25
|
25
31515-77E10-000 SCREWH25A; 2000-04-01~2002-09-01 |
31515-77E10-000 |
US $1.69 |
||
|
26
|
26
02112-74253-000
SCREW
H25A; 2000-04-01~2002-09-01 |
02112-74253-000 |
— | ||
| replacement | |||||
|
26
|
26
32642-80G10-000 SCREWH25A; 2000-04-01~2002-09-01 |
32642-80G10-000 |
US $1.69 |
||
