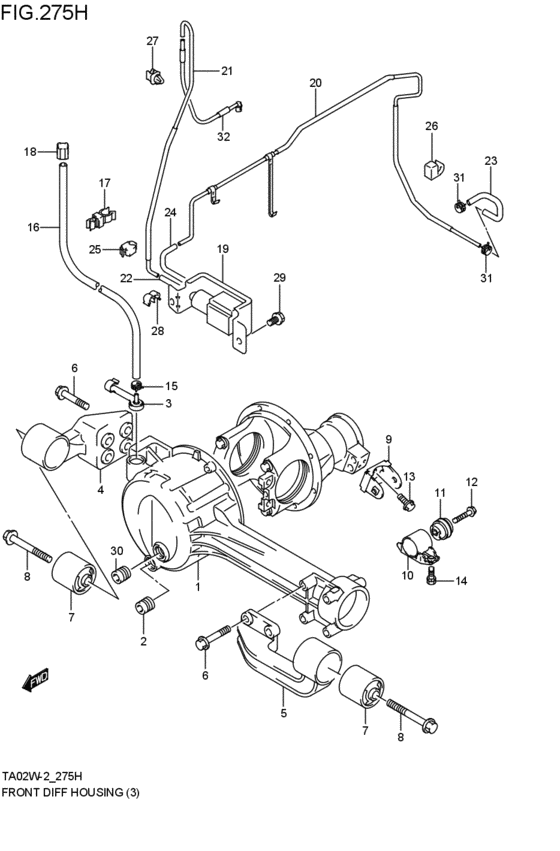

フロントデファレンシャルハウジング (200107 カラ; 4WD:H25A; 2001-07-01~2002-09-01) Diagram Suzuki ESCUDO
- Year
- 2000
- Sales region
- Japan
- Engine
- H25A
- drive
- 4WD
- transmission
- AT
- Number of doors
- 5DR
- grade
- D2
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
27611-82D00-000
Housing,differential
4WD:H25A; 2001-07-01~2002-09-01 |
27611-82D00-000 |
— | ||
| replacement | |||||
|
1
|
1
27611-82D01-000 HOUSING,DIFFERENTIAL4WD:H25A; 2001-07-01~2002-09-01 |
27611-82D01-000 |
US $461.12 |
||
|
2
|
2
09246-16010-000 PLUG4WD:H25A; 2001-07-01~2002-09-01 |
09246-16010-000 |
US $4.46 |
||
| replacement | |||||
|
2
|
2
09246-16021-000 Plug,t/m Oil Drain4WD:H25A; 2001-07-01~2002-09-01 |
09246-16021-000 |
from US $4.01 |
||
|
3
|
3
27895-65D00-000 UNION,DIFF BREATHER4WD:H25A; 2001-07-01~2002-09-01 |
27895-65D00-000 |
US $14.08 |
||
|
4
|
4
27611-65D00-000 BRACKET,DIFF MOUNT,R4WD:H25A; 2001-07-01~2002-09-01 |
27611-65D00-000 |
US $69.55 |
||
|
5
|
5
27621-65D00-000 BRACKET,MOUNTING,L4WD:H25A; 2001-07-01~2002-09-01 |
27621-65D00-000 |
US $134.40 |
||
|
6
|
6
01570-10303-000
Bolt
4WD:H25A; 2001-07-01~2002-09-01 |
01570-10303-000 |
— | ||
| replacement | |||||
|
6
|
6
01570-1030A-000 Bolt4WD:H25A; 2001-07-01~2002-09-01 |
01570-1030A-000 |
from US $1.12 |
||
|
7
|
7
27550-60A00-000 MOUNTING,DIFF4WD:H25A; 2001-07-01~2002-09-01 |
27550-60A00-000 |
US $92 |
||
|
8
|
8
09103-12033-000 BOLT(12X84)4WD:H25A; 2001-07-01~2002-09-01 |
09103-12033-000 |
from US $4.39 |
||
|
9
|
9
27630-52D00-000 BRACKET,DIFF MOUNT RR4WD:H25A; 2001-07-01~2002-09-01 |
27630-52D00-000 |
US $78.40 |
||
|
10
|
10
27641-52D00-000 BRACKET,DIFF MOUNT RR LOWER4WD:H25A; 2001-07-01~2002-09-01 |
27641-52D00-000 |
US $67.64 |
||
|
11
|
11
27550-52D00-000 MOUNTING,DIFF RR4WD:H25A; 2001-07-01~2002-09-01 |
27550-52D00-000 |
from US $34.52 |
||
|
12
|
12
09103-12044-000 BOLT(12X87)4WD:H25A; 2001-07-01~2002-09-01 |
09103-12044-000 |
from US $2.48 |
||
|
13
|
13
01551-12253-000
ボルト
4WD:H25A; 2001-07-01~2002-09-01 |
01551-12253-000 |
— | ||
| replacement | |||||
|
13
|
13
01551-1225A-000 Bolt4WD:H25A; 2001-07-01~2002-09-01 |
01551-1225A-000 |
US $1.28 |
||
|
14
|
14
09112-10020-000 BOLT(10X25)4WD:H25A; 2001-07-01~2002-09-01 |
09112-10020-000 |
US $26.50 |
||
|
15
|
15
09401-10409-000 CLIP4WD:H25A; 2001-07-01~2002-09-01 |
09401-10409-000 |
from US $1.12 |
||
|
16
|
16
27891-65D10-000 HOSE,BREATHER4WD:H25A; 2001-07-01~2002-09-01 |
27891-65D10-000 |
US $17.96 |
||
|
17
|
17
27892-65D00-000 CLAMP,DIFF BRTHR HOSE4WD:H25A; 2001-07-01~2002-09-01 |
27892-65D00-000 |
US $1.68 |
||
|
18
|
18
27991-65D01-000 PLUG,BREATHER4WD:H25A; 2001-07-01~2002-09-01 |
27991-65D01-000 |
from US $1.92 |
||
|
19
|
19
27940-65D02-000
ポンプアッシ,フリーアクスル
4WD:H25A; 2001-07-01~2002-09-01 |
27940-65D02-000 |
— | ||
| replacement | |||||
|
19
|
19
27940-65D03-000 PUMP ASSY,FREE AXLE4WD:H25A; 2001-07-01~2002-09-01 |
27940-65D03-000 |
from US $274.43 |
||
|
20
|
20
27960-65D20-000 PIPE,FREE AXLE NO.14WD:H25A; 2001-07-01~2002-09-01 |
27960-65D20-000 |
US $22.63 |
||
|
21
|
21
27970-65D20-000 PIPE,FREE AXLE NO.24WD:H25A; 2001-07-01~2002-09-01 |
27970-65D20-000 |
US $9.72 |
||
|
22
|
22
27981-65D00-000 HOSE,F/A NO.24WD:H25A; 2001-07-01~2002-09-01 |
27981-65D00-000 |
US $5.59 |
||
|
23
|
23
27985-65D01-000 HOSE,F/A DIFF4WD:H25A; 2001-07-01~2002-09-01 |
27985-65D01-000 |
US $5.70 |
||
| replacement | |||||
|
23
|
23
09355-45857-600 HOSE(4.5X8.5X600)4WD:H25A; 2001-07-01~2002-09-01 |
09355-45857-600 |
US $17.03 |
||
|
24
|
24
09355-45857-600 HOSE(4.5X8.5X600)L:600>260; 4WD:H25A; 2001-07-01~2002-09-01 |
09355-45857-600 |
US $17.03 |
||
|
25
|
25
51751-60B00-000 CLAMP,BRAKE PIPE4WD:H25A; 2001-07-01~2002-09-01 |
51751-60B00-000 |
US $1.60 |
||
|
26
|
26
51752-70B00-000 CLAMP,BK PIPE4WD:H25A; 2001-07-01~2002-09-01 |
51752-70B00-000 |
US $1.60 |
||
|
27
|
27
51771-63B00-000 CLAMP,BK PIPE,RR X MBR4WD:H25A; 2001-07-01~2002-09-01 |
51771-63B00-000 |
US $2.58 |
||
|
28
|
28
09408-00033-000 CLAMPClamp 4WD:H25A; 2001-07-01~2002-09-01 |
09408-00033-000 |
from US $1.60 |
||
|
29
|
29
01550-08163-000
Bolt, holder
4WD:H25A; 2001-07-01~2002-09-01 |
01550-08163-000 |
— | ||
| replacements | |||||
|
29
|
29
01550-0816B-000 BOLT4WD:H25A; 2001-07-01~2002-09-01 |
01550-0816B-000 |
from US $0.91 |
||
|
29
|
29
01550-0816A-000 BOLTBolt, rear 4WD:H25A; 2001-07-01~2002-09-01 |
01550-0816A-000 |
from US $0.91 |
||
|
30
|
30
09246-16010-000 PLUG4WD:H25A; 2001-07-01~2002-09-01 |
09246-16010-000 |
US $4.46 |
||
| replacement | |||||
|
30
|
30
09246-16021-000 Plug,t/m Oil Drain4WD:H25A; 2001-07-01~2002-09-01 |
09246-16021-000 |
from US $4.01 |
||
|
31
|
31
09401-08409-000 CLIP4WD:H25A; 2001-07-01~2002-09-01 |
09401-08409-000 |
from US $0.73 |
||
|
32
|
32
27980-65D00-000 HOSE ASSY,FREE AXLE4WD:H25A; 2001-07-01~2002-09-01 |
27980-65D00-000 |
US $9.16 |
||
