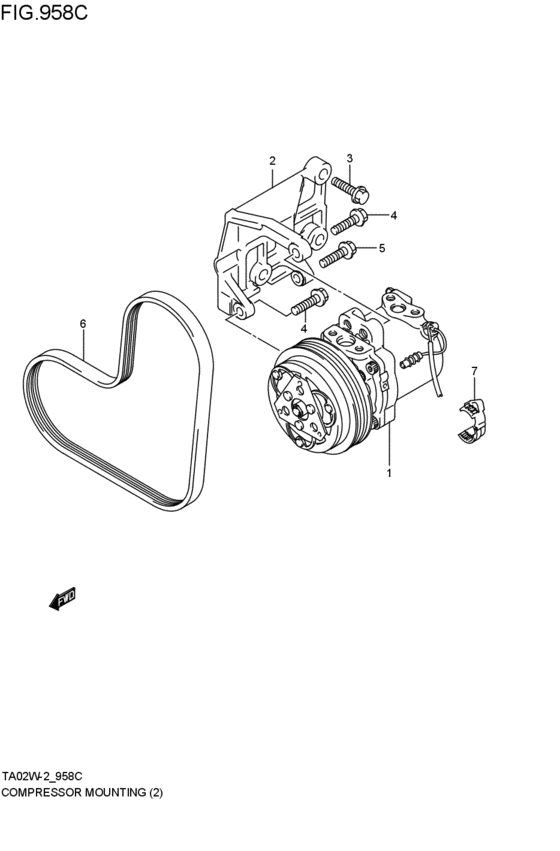

コンプレッサマウンチング (H25A; 2000-04-01~2002-09-01) Diagram Suzuki ESCUDO
- Year
- 2000
- Sales region
- Japan
- Engine
- H25A
- drive
- 4WD
- transmission
- AT
- Number of doors
- 5DR
- grade
- D2
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
95200-70CH0-000
コンプレッサアッシ
H25A; 2000-04-01~2002-09-01 |
95200-70CH0-000 |
— | ||
| replacements | |||||
|
1
|
1
99000-99088-7CH
COMPRESSOR ASSY
H25A; 2000-04-01~2002-09-01 |
99000-99088-7CH |
— | ||
|
1
|
1
95200-70CH1-000 COMPRESSOR ASSYH25A; 2000-04-01~2002-09-01 |
95200-70CH1-000 |
US $1,234.96 |
||
|
2
|
2
95110-77E00-000 BRACKET,CPRSRH25A; 2000-04-01~2002-09-01 |
95110-77E00-000 |
US $144.62 |
||
|
3
|
3
01550-10353-000
Bolt
H25A; 2000-04-01~2002-09-01 |
01550-10353-000 |
— | ||
| replacement | |||||
|
3
|
3
01550-1035A-000 BOLTBolt, fr fork upper H25A; 2000-04-01~2002-09-01 |
01550-1035A-000 |
from US $5.68 |
||
|
4
|
4
01550-08253-000
Bolt, rear
H25A; 2000-04-01~2002-09-01 |
01550-08253-000 |
— | ||
| replacements | |||||
|
4
|
4
01550-0825B-000 BOLTH25A; 2000-04-01~2002-09-01 |
01550-0825B-000 |
from US $0.96 |
||
|
4
|
4
01550-0825A-000 BOLTH25A; 2000-04-01~2002-09-01 |
01550-0825A-000 |
from US $1.06 |
||
|
5
|
5
01550-08353-000
Bolt, rear
H25A; 2000-04-01~2002-09-01 |
01550-08353-000 |
— | ||
| replacements | |||||
|
5
|
5
01550-0835B-000 BOLTH25A; 2000-04-01~2002-09-01 |
01550-0835B-000 |
from US $1.12 |
||
|
5
|
5
01550-0835A-000 BOLTH25A; 2000-04-01~2002-09-01 |
01550-0835A-000 |
from US $1.06 |
||
|
6
|
6
17521-85090-000 BELT,4PK1080H25A; 2000-04-01~2002-09-01 |
17521-85090-000 |
from US $79.22 |
||
|
7
|
7
09408-00184-000 CLAMPH25A; 2000-04-01~2002-09-01 |
09408-00184-000 |
from US $4.64 |
||
