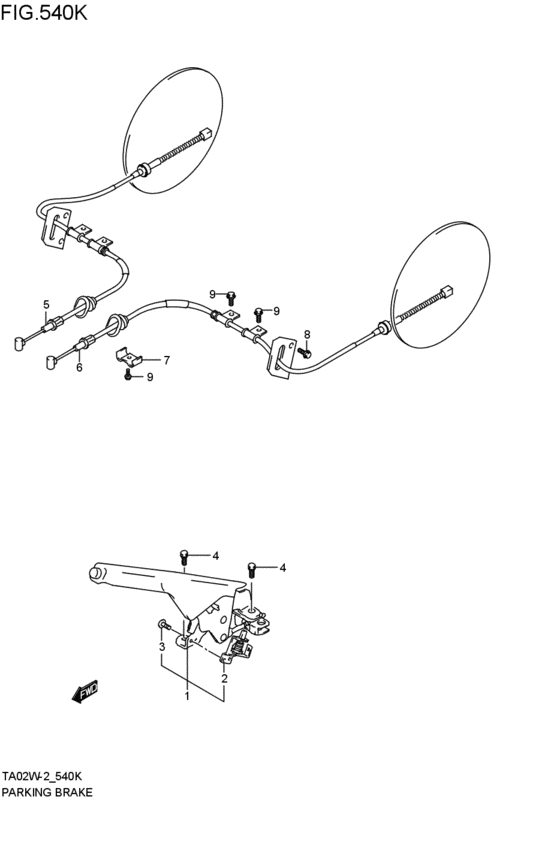

parking brakes (2000-04-01~2002-09-01) Diagram Suzuki ESCUDO
- Year
- 2000
- Sales region
- Japan
- Engine
- H25A
- drive
- 4WD
- transmission
- AT
- Number of doors
- 5DR
- grade
- D2
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
54100-65D00-000
LEVER ASSY,PARKING BK
2000-04-01~2002-09-01 |
54100-65D00-000 |
— | ||
| replacement | |||||
|
1
|
1
54100-65D01-000 LEVER ASSY,PARK BK2000-04-01~2002-09-01 |
54100-65D01-000 |
US $109.30 |
||
|
2
|
2
37940-60A10-000 SWITCH ASSY,PARKING BRAKE2000-04-01~2002-09-01 |
37940-60A10-000 |
US $13.12 |
||
|
3
|
3
02142-04103-000
Screw 4x10
2000-04-01~2002-09-01 |
02142-04103-000 |
— | ||
| replacement | |||||
|
3
|
3
02142-0410A-000 SCREW2000-04-01~2002-09-01 |
02142-0410A-000 |
from US $0.76 |
||
|
4
|
4
01570-08203-000
Bolt
2000-04-01~2002-09-01 |
01570-08203-000 |
— | ||
| replacements | |||||
|
4
|
4
01570-0820B-000 Bolt2000-04-01~2002-09-01 |
01570-0820B-000 |
US $17.30 |
||
|
4
|
4
01570-0820A-000 BOLT2000-04-01~2002-09-01 |
01570-0820A-000 |
from US $0.96 |
||
|
5
|
5
54410-65D10-000 CABLE,PARKING BRAKE,R5DR; 2000-04-01~2002-09-01 |
54410-65D10-000 |
US $81.60 |
||
|
6
|
6
54420-65D10-000 CABLE,PARKING BRAKE,L5DR; 2000-04-01~2002-09-01 |
54420-65D10-000 |
US $81.60 |
||
|
7
|
7
54431-56B00-000 CLAMP,PARKING CABLE5DR; 2000-04-01~2002-09-01 |
54431-56B00-000 |
US $4.82 |
||
|
8
|
8
09136-06134-000 BOLT(6X16)2000-04-01~2002-09-01 |
09136-06134-000 |
from US $1.12 |
||
|
9
|
9
01550-08123-000
Bolt
5DR; 2000-04-01~2002-09-01 |
01550-08123-000 |
— | ||
| replacements | |||||
|
9
|
9
01550-0812B-000 BoltPlug, drain 5DR; 2000-04-01~2002-09-01 |
01550-0812B-000 |
from US $0.96 |
||
|
9
|
9
01550-0812A-000 BOLT5DR; 2000-04-01~2002-09-01 |
01550-0812A-000 |
from US $0.91 |
||
