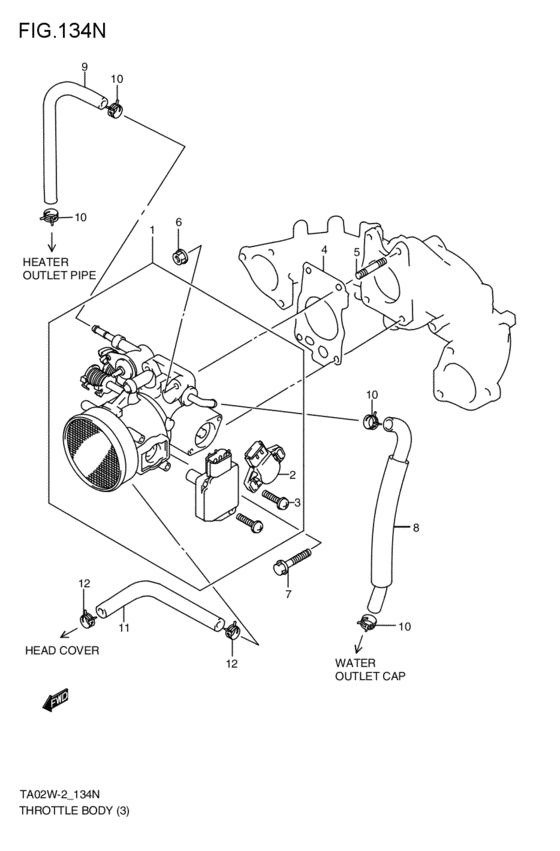

throttle body (H25A; 2000-04-01~2002-09-01) Diagram Suzuki ESCUDO
- Year
- 2000
- Sales region
- Japan
- Engine
- H25A
- drive
- 4WD
- transmission
- AT
- Number of doors
- 5DR
- grade
- D2
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
13400-67D00-000 BODY ASSY,THROTTLEH25A; 2000-04-01~2002-09-01 |
13400-67D00-000 |
US $2,240 |
||
|
2
|
2
13420-77E00-000 SENSOR,THROTTLE POSITIONH25A; 2000-04-01~2002-09-01 |
13420-77E00-000 |
US $279.68 |
||
|
3
|
3
13428-67D00-000
スクリュ,スロットルポジションセンサー,4X20
H25A; 2000-04-01~2002-09-01 |
13428-67D00-000 |
— | ||
| replacement | |||||
|
3
|
3
02112-74203-000
SCREW
H25A; 2000-04-01~2002-09-01 |
02112-74203-000 |
— | ||
|
4
|
4
13421-77E00-000 GASKET,THROTTLE BODYH25A; 2000-04-01~2002-09-01 |
13421-77E00-000 |
from US $4.68 |
||
|
5
|
5
01421-08353-000
Bolt, stud
H25A; 2000-04-01~2002-09-01 |
01421-08353-000 |
— | ||
| replacement | |||||
|
5
|
5
01421-0835A-000 BOLT,STUDStud bolt (8x35) H25A; 2000-04-01~2002-09-01 |
01421-0835A-000 |
from US $1.44 |
||
|
6
|
6
08316-10083-000
Nut
H25A; 2000-04-01~2002-09-01 |
08316-10083-000 |
— | ||
| replacement | |||||
|
6
|
6
08316-1008B-000 NUTH25A; 2000-04-01~2002-09-01 |
08316-1008B-000 |
from US $0.76 |
||
|
7
|
7
01550-08403-000
Bolt
H25A; 2000-04-01~2002-09-01 |
01550-08403-000 |
— | ||
| replacements | |||||
|
7
|
7
01550-0840B-000 BoltH25A; 2000-04-01~2002-09-01 |
01550-0840B-000 |
from US $1.12 |
||
|
7
|
7
01550-0840A-000 BOLTH25A; 2000-04-01~2002-09-01 |
01550-0840A-000 |
from US $1.12 |
||
|
8
|
8
13491-77E01-000
ホース,ウォータスロットル,インレット
H25A; 2000-04-01~2002-09-01 |
13491-77E01-000 |
— | ||
| replacement | |||||
|
8
|
8
11190-77810-000 HOSE&PIPE SET,PCV H25H25A; 2000-04-01~2002-09-01 |
11190-77810-000 |
from US $41.13 |
||
|
9
|
9
09356-75141-600 HOSE(7.5X14.5X600)L:600>210; H25A; 2000-04-01~2002-09-01 |
09356-75141-600 |
from US $6.30 |
||
|
10
|
10
09401-12410-000 CLIPClip, filter outlet H25A; 2000-04-01~2002-09-01 |
09401-12410-000 |
from US $1.19 |
||
|
11
|
11
09355-13207-600 HOSE(13X20X600)Hose, breather L:600>170; H25A; 2000-04-01~2002-09-01 |
09355-13207-600 |
from US $11.63 |
||
|
12
|
12
09401-18404-000 CLIPH25A; 2000-04-01~2002-09-01 |
09401-18404-000 |
from US $1.33 |
||
