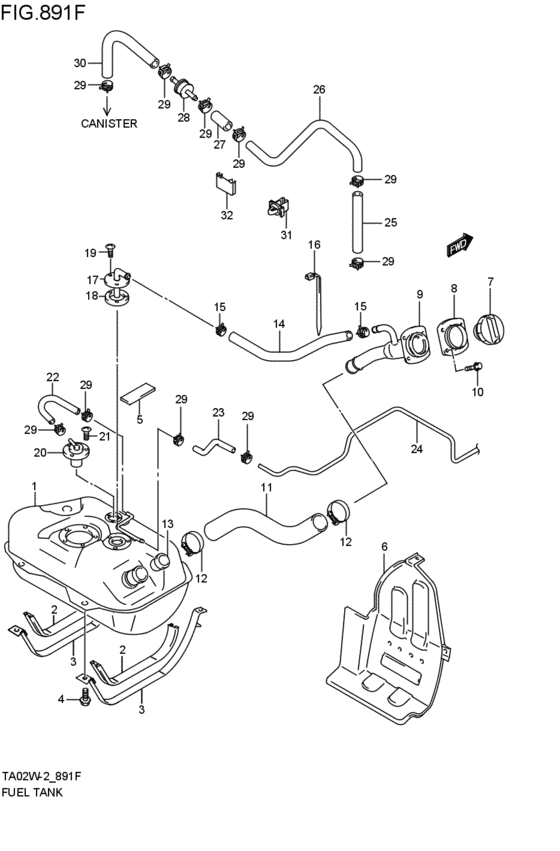

fuel tank (2000-04-01~2002-09-01) Diagram Suzuki ESCUDO
- Year
- 2000 - 2011
- Sales region
- Japan
- Engine
- H25A
- drive
- 4WD
- transmission
- AT
- Number of doors
- 5DR
- grade
- G2
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
89101-65DA0-000
タンクアッシ,フューエル
2000-04-01~2002-09-01 |
89101-65DA0-000 |
— | ||
| replacement | |||||
|
1
|
1
89101-65DA1-000 TANK ASSY,FUEL2000-04-01~2002-09-01 |
89101-65DA1-000 |
US $821.18 |
||
|
2
|
2
89385-65D00-000 PAD,FUEL TANK BELT2000-04-01~2002-09-01 |
89385-65D00-000 |
US $16.80 |
||
|
3
|
3
89360-65D00-000 BELT,FUEL TANK FIXER2000-04-01~2002-09-01 |
89360-65D00-000 |
US $50.40 |
||
|
4
|
4
09118-10052-000 BOLT(10X30)2000-04-01~2002-09-01 |
09118-10052-000 |
from US $1.44 |
||
|
5
|
5
89381-65D10-000 PAD,FUEL TANK2000-04-01~2002-09-01 |
89381-65D10-000 |
US $10.78 |
||
|
6
|
6
89311-65DA0-000 PROTECTOR,FILLER HOSE5DR; 2000-04-01~2002-09-01 |
89311-65DA0-000 |
US $39.38 |
||
|
7
|
7
89260-73H00-000 CAP ASSY,FUEL FILLER2000-04-01~2002-09-01 |
89260-73H00-000 |
from US $19.82 |
||
|
8
|
8
89285-75F00-000 PACKING,FUEL FILLER2000-04-01~2002-09-01 |
89285-75F00-000 |
US $5.17 |
||
|
9
|
9
89201-65D11-000
Neck assy,fuel filler
2000-04-01~2002-09-01 |
89201-65D11-000 |
— | ||
| replacement | |||||
|
9
|
9
89201-65D12-000 NECK ASSY,FUEL FILLER2000-04-01~2002-09-01 |
89201-65D12-000 |
US $93.84 |
||
|
10
|
10
09116-05014-000 BOLT(5X20)2000-04-01~2002-09-01 |
09116-05014-000 |
US $1.82 |
||
|
11
|
11
89241-65D30-000 HOSE,FUEL TANK FILLER2000-04-01~2002-09-01 |
89241-65D30-000 |
US $40.11 |
||
|
12
|
12
09400-45311-000 CLAMP2000-04-01~2002-09-01 |
09400-45311-000 |
US $1.92 |
||
|
13
|
13
89280-77A00-000 VALVE,FUEL TANK INLET2000-04-01~2002-09-01 |
89280-77A00-000 |
US $8.32 |
||
|
14
|
14
09355-11188-00B HOSE(11X17.8X2000)L:2000>620; 2000-04-01~2002-09-01 |
09355-11188-00B |
US $23 |
||
|
15
|
15
09401-16403-000 CLIPClip, 2nd air hose no.2 2000-04-01~2002-09-01 |
09401-16403-000 |
from US $3.86 |
||
|
16
|
16
09407-25401-000 CLAMP(L:235)Clamp (l:235) 2000-04-01~2002-09-01 |
09407-25401-000 |
from US $2.08 |
||
|
17
|
17
89250-65D00-000
Pipe comp,fuel tank breather
5DR; 2000-04-01~2002-09-01 |
89250-65D00-000 |
— | ||
| replacement | |||||
|
17
|
17
89250-65D01-000 PIPE,FUEL TANK BREATHER5DR; 2000-04-01~2002-09-01 |
89250-65D01-000 |
US $20.24 |
||
|
18
|
18
89255-65D00-000 GASKET,BREATHER PIPE2000-04-01~2002-09-01 |
89255-65D00-000 |
US $3.90 |
||
|
19
|
19
09136-05045-000 SCREW(5X10)2000-04-01~2002-09-01 |
09136-05045-000 |
US $0.96 |
||
|
20
|
20
89485-65D00-000 VALVE,FUEL CUT2000-04-01~2002-09-01 |
89485-65D00-000 |
from US $88.92 |
||
|
21
|
21
09136-05045-000 SCREW(5X10)2000-04-01~2002-09-01 |
09136-05045-000 |
US $0.96 |
||
|
22
|
22
09355-54128-600
Hose,5.4x12.2x600
L:600>180; 2000-04-01~2002-09-01 |
09355-54128-600 |
— | ||
| replacement | |||||
|
22
|
22
09355-56128-600 HOSE(5.6X12.4X600)L:600>180; 2000-04-01~2002-09-01 |
09355-56128-600 |
US $8.64 |
||
|
23
|
23
09355-54128-600
Hose,5.4x12.2x600
L:600>180; 2000-04-01~2002-09-01 |
09355-54128-600 |
— | ||
| replacement | |||||
|
23
|
23
09355-56128-600 HOSE(5.6X12.4X600)L:600>180; 2000-04-01~2002-09-01 |
09355-56128-600 |
US $8.64 |
||
|
24
|
24
89431-65D00-000 PIPE,EVAPORATION MAIN5DR:H25A; 2000-04-01~2001-02-01 |
89431-65D00-000 |
US $43.79 |
||
|
24
|
24
89431-65D10-000
PIPE,EVAPORATION MAIN
5DR:H25A; 2001-02-01~2002-09-01 |
89431-65D10-000 |
— | ||
|
25
|
25
09355-54128-600
Hose,5.4x12.2x600
L:600>200; 2000-04-01~2002-09-01 |
09355-54128-600 |
— | ||
| replacement | |||||
|
25
|
25
09355-56128-600 HOSE(5.6X12.4X600)L:600>200; 2000-04-01~2002-09-01 |
09355-56128-600 |
US $8.64 |
||
|
26
|
26
89432-65D11-000 PIPE,CANISTER INLET2000-04-01~2002-09-01 |
89432-65D11-000 |
US $8.72 |
||
|
27
|
27
09355-54128-600
Hose,5.4x12.2x600
L:600>60; 2000-04-01~2002-09-01 |
09355-54128-600 |
— | ||
| replacement | |||||
|
27
|
27
09355-56128-600 HOSE(5.6X12.4X600)L:600>60; 2000-04-01~2002-09-01 |
09355-56128-600 |
US $8.64 |
||
|
28
|
28
85451-75100-000 VALVE,2WAY CHECKValve, check 2000-04-01~2002-09-01 |
85451-75100-000 |
from US $30.40 |
||
|
29
|
29
09401-11415-000 CLIP2000-04-01~2002-09-01 |
09401-11415-000 |
from US $1.06 |
||
|
30
|
30
89463-65D00-000 HOSE,C/V TO CANISTER2001-03-01~2002-09-01 |
89463-65D00-000 |
US $10.19 |
||
|
30
|
30
09355-54128-600
Hose,5.4x12.2x600
L:600>190; 2000-04-01~2001-03-01 |
09355-54128-600 |
— | ||
| replacement | |||||
|
30
|
30
09355-56128-600 HOSE(5.6X12.4X600)L:600>190; 2000-04-01~2001-03-01 |
09355-56128-600 |
US $8.64 |
||
|
31
|
31
09403-06321-000 CLAMP2000-04-01~2002-09-01 |
09403-06321-000 |
US $21 |
||
|
32
|
32
09408-00181-000
クランプ
2000-04-01~2002-09-01 |
09408-00181-000 |
— | ||
| replacement | |||||
|
32
|
32
09408-00211-000 CLAMP2000-04-01~2002-09-01 |
09408-00211-000 |
US $23.20 |
||
