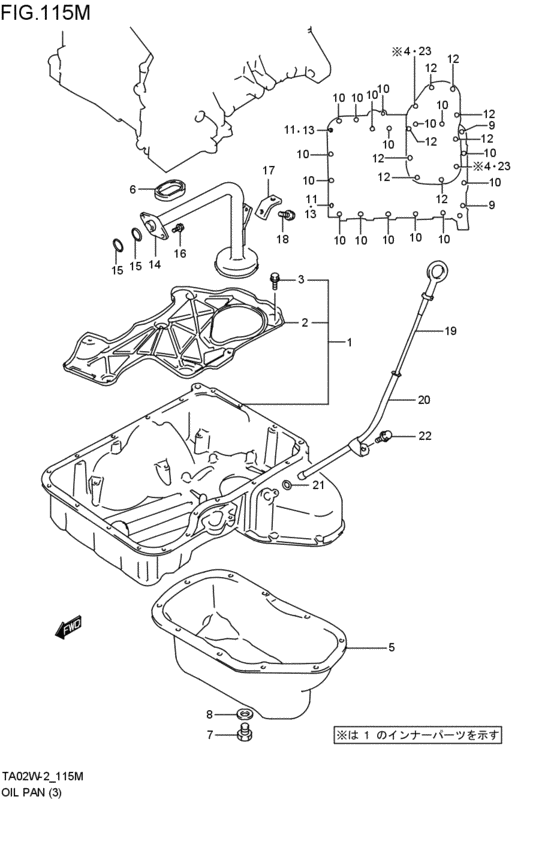

oil pan (H25A; 2000-04-01~2002-09-01) Diagram Suzuki ESCUDO
- Year
- 2000 - 2011
- Sales region
- Japan
- Engine
- H25A
- drive
- 4WD
- transmission
- AT
- Number of doors
- 5DR
- grade
- G2
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11500-85810-000
パンセット,オイル,アッパ
H25A; 2000-04-01~2002-09-01 |
11500-85810-000 |
— | ||
| replacement | |||||
|
1
|
1
11500-85813-000 PAN SET,OIL UPPERH25A; 2000-04-01~2002-09-01 |
11500-85813-000 |
US $468.80 |
||
|
2
|
2
11512-85F11-000 PLATE,OIL PAN BAFFLEH25A; 2000-04-01~2002-09-01 |
11512-85F11-000 |
US $22.80 |
||
|
3
|
3
01550-06123-000
Bolt
H25A; 2000-04-01~2002-09-01 |
01550-06123-000 |
— | ||
| replacements | |||||
|
3
|
3
01550-0612B-000 BOLTBolt, clamp H25A; 2000-04-01~2002-09-01 |
01550-0612B-000 |
from US $0.76 |
||
|
3
|
3
01550-0612A-000 BOLTH25A; 2000-04-01~2002-09-01 |
01550-0612A-000 |
from US $0.76 |
||
|
4
|
4
01421-06123-000
Stud m6x1x24
H25A; 2000-04-01~2002-09-01 |
01421-06123-000 |
— | ||
| replacement | |||||
|
4
|
4
01421-0612A-000 BOLT,STUDH25A; 2000-04-01~2002-09-01 |
01421-0612A-000 |
from US $1.12 |
||
|
5
|
5
11520-85F10-000 PAN,OIL LOWERH25A; 2000-04-01~2002-09-01 |
11520-85F10-000 |
US $97.15 |
||
|
6
|
6
16532-85F11-000 O-RING,OIL PANH25A; 2000-04-01~2002-09-01 |
16532-85F11-000 |
from US $2.59 |
||
|
7
|
7
09247-14027-000 PLUG(14X11.5)Plug, oil drain H25A; 2000-04-01~2002-09-01 |
09247-14027-000 |
from US $1.76 |
||
| replacement | |||||
|
7
|
7
09247-14044-000 DRAIN PLUG (M14x1.5)H25A; 2000-04-01~2002-09-01 |
09247-14044-000 |
from US $1.33 |
||
|
8
|
8
09168-14015-000 GASKET(14X20X1.5)Gasket, oil hose union H25A; 2000-04-01~2002-09-01 |
09168-14015-000 |
from US $1.17 |
||
|
9
|
9
09103-08230-000 BOLT(8X100)Bolt (8x100) H25A; 2000-04-01~2002-09-01 |
09103-08230-000 |
US $1.76 |
||
|
10
|
10
01550-06253-000
Bolt (6x25)
H25A; 2000-04-01~2002-09-01 |
01550-06253-000 |
— | ||
| replacements | |||||
|
10
|
10
01550-0625B-000 BOLTBolt, head cover H25A; 2000-04-01~2002-09-01 |
01550-0625B-000 |
from US $0.91 |
||
|
10
|
10
01550-0625A-000 BOLTBolt H25A; 2000-04-01~2002-09-01 |
01550-0625A-000 |
from US $0.96 |
||
|
11
|
11
01421-06203-000
Stud bolt (l:20)(green)
H25A; 2000-04-01~2002-09-01 |
01421-06203-000 |
— | ||
| replacement | |||||
|
11
|
11
01421-0620A-000 BOLT,STUDH25A; 2000-04-01~2002-09-01 |
01421-0620A-000 |
from US $1.12 |
||
|
12
|
12
09117-06033-000 BOLT(6X12)H25A; 2000-04-01~2001-11-01 |
09117-06033-000 |
US $1.06 |
||
|
12
|
12
09117-06061-000 BOLT(6X16)H25A; 2001-12-01~2002-09-01 |
09117-06061-000 |
from US $1.13 |
||
|
13
|
13
08316-10063-000
Nut
H25A; 2000-04-01~2002-09-01 |
08316-10063-000 |
— | ||
| replacement | |||||
|
13
|
13
08316-1006B-000 NUTH25A; 2000-04-01~2002-09-01 |
08316-1006B-000 |
from US $0.76 |
||
|
14
|
14
16520-85F11-000 STRAINER,OIL PUMPH25A; 2000-04-01~2002-09-01 |
16520-85F11-000 |
US $54.83 |
||
|
15
|
15
09280-22020-000 O RING(D:2.4,ID:21.8)O ring (d:2.4,id:21.8) H25A; 2000-04-01~2002-09-01 |
09280-22020-000 |
from US $1.60 |
||
|
16
|
16
01550-06163-000
Bolt
H25A; 2000-04-01~2002-09-01 |
01550-06163-000 |
— | ||
| replacements | |||||
|
16
|
16
01550-0616B-000 BOLTH25A; 2000-04-01~2002-09-01 |
01550-0616B-000 |
from US $0.76 |
||
|
16
|
16
01550-0616A-000 BOLTH25A; 2000-04-01~2002-09-01 |
01550-0616A-000 |
from US $0.76 |
||
|
17
|
17
16527-85F10-000 BRACKET,OIL STRAINER,NO.2H25A; 2000-04-01~2002-09-01 |
16527-85F10-000 |
US $3.75 |
||
|
18
|
18
01550-06123-000
Bolt
H25A; 2000-04-01~2002-09-01 |
01550-06123-000 |
— | ||
| replacements | |||||
|
18
|
18
01550-0612B-000 BOLTBolt, clamp H25A; 2000-04-01~2002-09-01 |
01550-0612B-000 |
from US $0.76 |
||
|
18
|
18
01550-0612A-000 BOLTH25A; 2000-04-01~2002-09-01 |
01550-0612A-000 |
from US $0.76 |
||
|
19
|
19
16910-85F12-000 GAUGE,OIL LEVELH25A; 2000-04-01~2002-09-01 |
16910-85F12-000 |
from US $16 |
||
|
20
|
20
16930-85F11-000 GUIDE,OIL LEVER GAUGEH25A; 2000-04-01~2002-09-01 |
16930-85F11-000 |
US $16.67 |
||
|
21
|
21
09280-10016-000 O RING(D:1.9,ID:9.8)O ring H25A; 2000-04-01~2002-09-01 |
09280-10016-000 |
from US $1.52 |
||
|
22
|
22
01550-06123-000
Bolt
H25A; 2000-04-01~2002-09-01 |
01550-06123-000 |
— | ||
| replacements | |||||
|
22
|
22
01550-0612B-000 BOLTBolt, clamp H25A; 2000-04-01~2002-09-01 |
01550-0612B-000 |
from US $0.76 |
||
|
22
|
22
01550-0612A-000 BOLTH25A; 2000-04-01~2002-09-01 |
01550-0612A-000 |
from US $0.76 |
||
|
23
|
23
08316-10063-000
Nut
H25A; 2000-04-01~2001-11-01 |
08316-10063-000 |
— | ||
| replacement | |||||
|
23
|
23
08316-1006B-000 NUTH25A; 2000-04-01~2001-11-01 |
08316-1006B-000 |
from US $0.76 |
||
|
23
|
23
09159-06077-000 NUTH25A; 2001-12-01~2002-09-01 |
09159-06077-000 |
US $1.28 |
||
