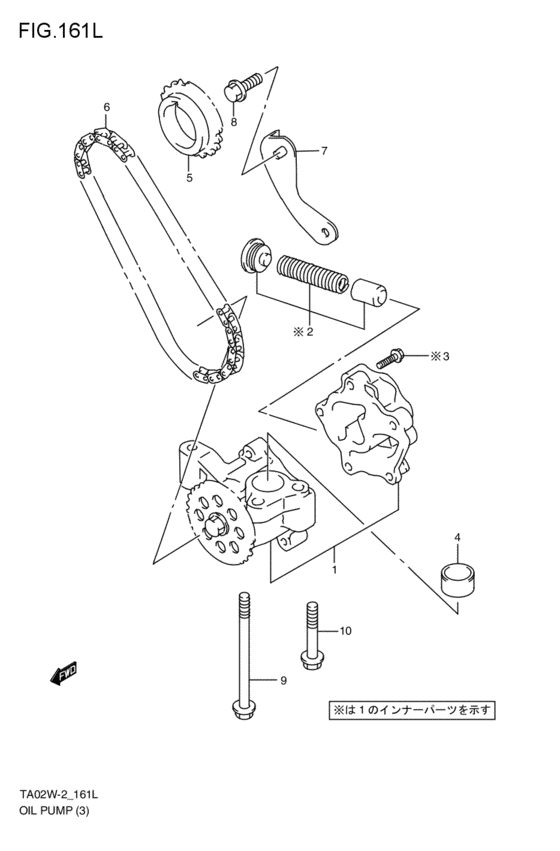

Oil pump (H25A; 2000-04-01~2002-09-01) Diagram Suzuki ESCUDO
- Year
- 2000 - 2011
- Sales region
- Japan
- Engine
- H25A
- drive
- 4WD
- transmission
- AT
- Number of doors
- 5DR
- grade
- G2
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
16100-85FA2-000 PUMP ASSY,OILH25A; 2000-04-01~2002-09-01 |
16100-85FA2-000 |
from US $262.24 |
||
|
2
|
2
16150-85FA0-000 VALVE SET,OIL PUMP RELIEFH25A; 2000-04-01~2002-09-01 |
16150-85FA0-000 |
US $16.52 |
||
|
3
|
3
07120-06253-000
Bolt, center
H25A; 2000-04-01~2002-09-01 |
07120-06253-000 |
— | ||
| replacement | |||||
|
3
|
3
07120-0625A-000 BOLTBolt, cylinder head (l25) H25A; 2000-04-01~2002-09-01 |
07120-0625A-000 |
from US $0.91 |
||
|
4
|
4
16114-85FA2-000 PIN,OIL PUMP CASEH25A; 2000-04-01~2002-09-01 |
16114-85FA2-000 |
US $4.56 |
||
|
5
|
5
12632-67D00-000 SPROCKET,OIL PUMP DRIVEH25A; 2000-04-01~2002-09-01 |
12632-67D00-000 |
from US $44.62 |
||
|
6
|
6
16760-85FA0-000 CHAIN,OIL PUMP DRIVEH25A; 2000-04-01~2002-09-01 |
16760-85FA0-000 |
US $85.60 |
||
|
7
|
7
16781-85FA0-000 GUIDE,OIL PUMP CHAINH25A; 2000-04-01~2002-09-01 |
16781-85FA0-000 |
from US $27.52 |
||
|
8
|
8
01550-06123-000
Bolt
H25A; 2000-04-01~2002-09-01 |
01550-06123-000 |
— | ||
| replacements | |||||
|
8
|
8
01550-0612B-000 BOLTBolt, clamp H25A; 2000-04-01~2002-09-01 |
01550-0612B-000 |
from US $0.76 |
||
|
8
|
8
01550-0612A-000 BOLTH25A; 2000-04-01~2002-09-01 |
01550-0612A-000 |
from US $0.76 |
||
|
9
|
9
09103-08230-000 BOLT(8X100)Bolt (8x100) H25A; 2000-04-01~2002-09-01 |
09103-08230-000 |
US $1.76 |
||
|
10
|
10
01550-08503-000
Bolt
H25A; 2000-04-01~2002-09-01 |
01550-08503-000 |
— | ||
| replacement | |||||
|
10
|
10
01550-0850B-000 BoltH25A; 2000-04-01~2002-09-01 |
01550-0850B-000 |
from US $1.22 |
||
