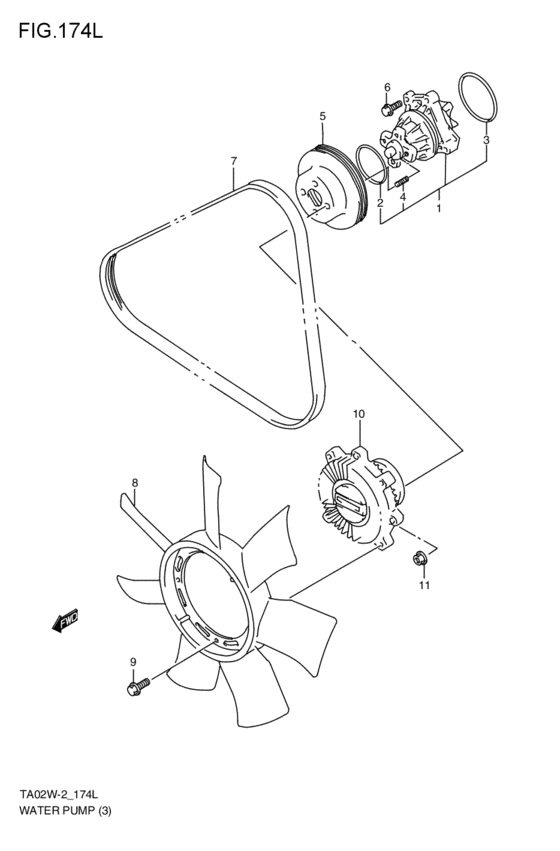

water pump (H25A; 2000-04-01~2002-09-01) Diagram Suzuki ESCUDO
- Year
- 2000 - 2011
- Sales region
- Japan
- Engine
- H25A
- drive
- 4WD
- transmission
- AT
- Number of doors
- 5DR
- grade
- G2
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17400-85830-000
Pump set,water
H25A; 2000-04-01~2002-09-01 |
17400-85830-000 |
— | ||
| replacement | |||||
|
1
|
1
17400-85831-000
PUMP SET,WATER
H25A; 2000-04-01~2002-09-01 |
17400-85831-000 |
— | ||
|
2
|
2
09280-62003-000 O RING(D:3.5,ID:60.7)H25A; 2000-04-01~2002-09-01 |
09280-62003-000 |
from US $3.42 |
||
|
3
|
3
09280-71003-000 O RING(D:3.5,ID:70)H25A; 2000-04-01~2002-09-01 |
09280-71003-000 |
from US $11.34 |
||
|
4
|
4
09108-08244-000 BOLT,STUDH25A; 2000-04-01~2002-09-01 |
09108-08244-000 |
US $1.92 |
||
|
5
|
5
17511-85FA0-000
プーリ,ウォータポンプ
H25A; 2000-04-01~2002-09-01 |
17511-85FA0-000 |
— | ||
| replacement | |||||
|
5
|
5
17511-85FA1-000 PULLEY,WATER PUMPH25A; 2000-04-01~2002-09-01 |
17511-85FA1-000 |
US $89.60 |
||
|
6
|
6
01550-08303-000
Bolt
H25A; 2000-04-01~2002-09-01 |
01550-08303-000 |
— | ||
| replacements | |||||
|
6
|
6
01550-0830B-000 BoltH25A; 2000-04-01~2002-09-01 |
01550-0830B-000 |
from US $1.06 |
||
|
6
|
6
01550-0830A-000 BOLTBolt, mount oil seal cover H25A; 2000-04-01~2002-09-01 |
01550-0830A-000 |
from US $1.12 |
||
|
7
|
7
17521-85FA0-000 BELT,WATER PUMP 4PK930H25A; 2000-04-01~2002-09-01 |
17521-85FA0-000 |
from US $31.82 |
||
|
8
|
8
17110-65D00-000 FAN,ENG COOLINGH25A; 2000-04-01~2002-09-01 |
17110-65D00-000 |
from US $72.25 |
||
|
9
|
9
01550-06203-000
Bolt
H25A; 2000-04-01~2002-09-01 |
01550-06203-000 |
— | ||
| replacement | |||||
|
9
|
9
01550-0620B-000 BOLTBolt, inspection cap H25A; 2000-04-01~2002-09-01 |
01550-0620B-000 |
from US $0.76 |
||
|
10
|
10
17120-77E05-000
クラッチアッシ,ファン
H25A; 2000-04-01~2002-09-01 |
17120-77E05-000 |
— | ||
| replacement | |||||
|
10
|
10
17120-77E07-000 CLUTCH ASSY,FANH25A; 2000-04-01~2002-09-01 |
17120-77E07-000 |
from US $207.63 |
||
|
11
|
11
08316-10083-000
Nut
H25A; 2000-04-01~2002-09-01 |
08316-10083-000 |
— | ||
| replacement | |||||
|
11
|
11
08316-1008B-000 NUTH25A; 2000-04-01~2002-09-01 |
08316-1008B-000 |
from US $0.76 |
||
