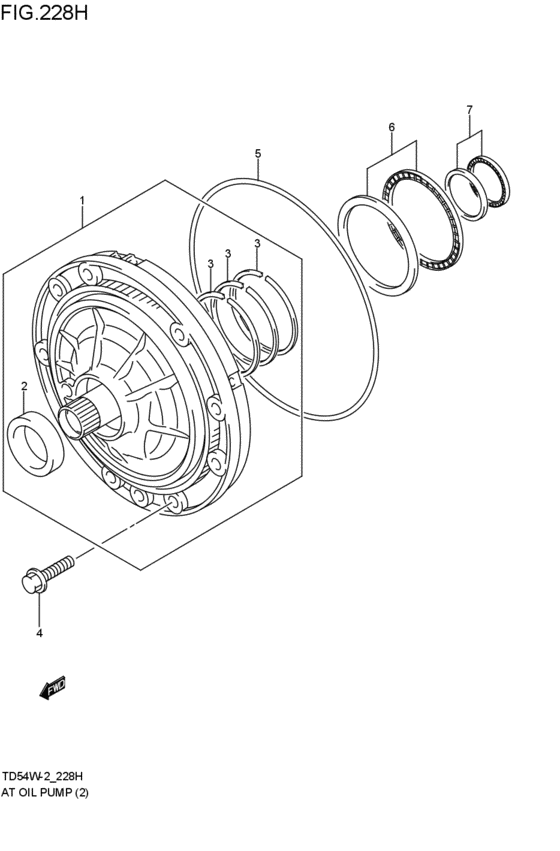

at - oil pump (AT:H27A; 2006-06-01~) Diagram Suzuki ESCUDO
- Year
- 2007 - 2011
- Sales region
- Japan
- Engine
- H27A
- transmission
- AT
- Number of doors
- 5DR
- grade
- XGC
- number of the gears
- 5AT
- air bag
- 2AB
- esp
- NESP
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
22800-54J10-000
ポンプアッシ,オイル
AT:H27A; 2006-06-01~ |
22800-54J10-000 |
— | ||
| replacement | |||||
|
1
|
1
22800-54J11-000 PUMP ASSY,OILAT:H27A; 2006-06-01~ |
22800-54J11-000 |
US $876.48 |
||
|
2
|
2
22881-54J10-000 SEAL,OIL PUMP OILAT:H27A; 2006-06-01~ |
22881-54J10-000 |
from US $10.87 |
||
|
3
|
3
22875-54J10-000
RING,OIL PUMP OIL SEAL
AT:H27A; 2006-06-01~ |
22875-54J10-000 |
— | ||
|
4
|
4
22814-54J10-000
BOLT,OIL PUMP
AT:H27A; 2006-06-01~ |
22814-54J10-000 |
— | ||
|
5
|
5
22885-54J30-000 O-RING,OIL PUMPAT:H27A; 2006-06-01~ |
22885-54J30-000 |
US $20.98 |
||
|
6
|
6
22894-54JT0-000 BEARING SET,THRUST NO.1AT:H27A; 2006-06-01~ |
22894-54JT0-000 |
US $33.30 |
||
|
7
|
7
22896-54JT0-000
BEARING SET,THRUST NO.10
AT:H27A; 2006-06-01~ |
22896-54JT0-000 |
— | ||
