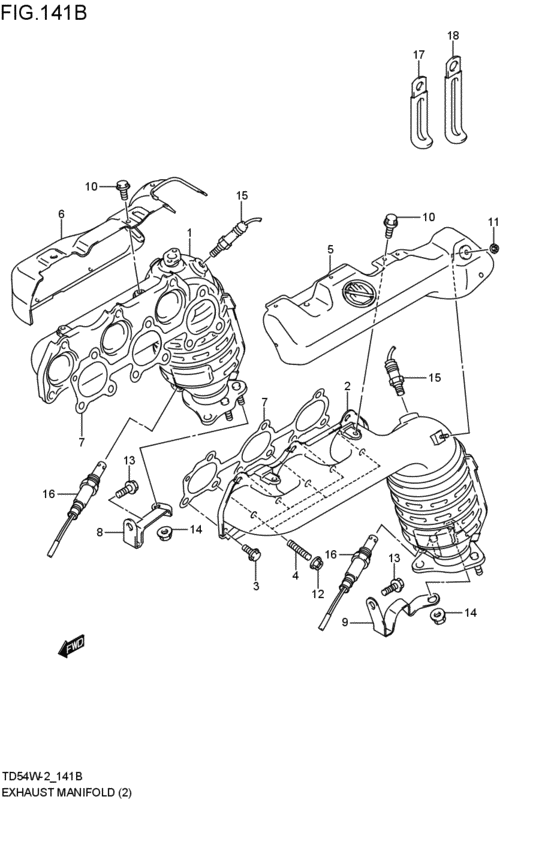

exhaust manifold (H27A; 2006-06-01~) Diagram Suzuki ESCUDO
- Year
- 2007 - 2011
- Sales region
- Japan
- Engine
- H27A
- transmission
- AT
- Number of doors
- 5DR
- grade
- XGC
- number of the gears
- 5AT
- air bag
- 2AB
- esp
- NESP
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
14110-66J21-000 MANIFOLD,EXH,RH27A; 2006-06-01~ |
14110-66J21-000 |
US $1,561.60 |
||
|
2
|
2
14110-66J31-000 MANIFOLD,EXH,LH27A; 2006-06-01~ |
14110-66J31-000 |
US $876.48 |
||
|
3
|
3
14118-52D00-000 BOLT,EXH MANFH27A; 2006-06-01~ |
14118-52D00-000 |
US $3.53 |
||
|
4
|
4
14118-77E03-000 STUD BOLT,EXH MANFH27A; 2006-06-01~ |
14118-77E03-000 |
US $1.82 |
||
|
5
|
5
14120-66J00-000 COVER,EXH MANF,LEFTH27A; 2006-06-01~ |
14120-66J00-000 |
US $48.58 |
||
|
6
|
6
14120-66J10-000 COVER,EXH MANF,RIGHTH27A; 2006-06-01~ |
14120-66J10-000 |
US $58.51 |
||
|
7
|
7
14140-67D03-000 GASKET,EXH MANFH27A; 2006-06-01~ |
14140-67D03-000 |
from US $25.38 |
||
|
8
|
8
14271-52D00-000 STIFFENER,EXH MANF,RH27A; 2006-06-01~ |
14271-52D00-000 |
US $10.12 |
||
|
9
|
9
14271-52D10-000 STIFFENER,EXH MANF,LH27A; 2006-06-01~ |
14271-52D10-000 |
US $10.12 |
||
|
10
|
10
09103-06265-000 BOLT(6X12)H27A; 2006-06-01~ |
09103-06265-000 |
US $1.28 |
||
|
11
|
11
09159-06077-000 NUTH27A; 2006-06-01~ |
09159-06077-000 |
US $1.28 |
||
|
12
|
12
09159-08034-000 NUTH27A; 2006-06-01~ |
09159-08034-000 |
from US $1.60 |
||
|
13
|
13
01550-1020A-000 BOLTBolt, bal sprocket H27A; 2006-06-01~ |
01550-1020A-000 |
from US $0.96 |
||
|
14
|
14
08316-1010A-000 NUTNut, kick starter H27A; 2006-06-01~ |
08316-1010A-000 |
from US $0.76 |
||
|
15
|
15
18213-66J20-000 SENSOR,A/FH27A; 2006-06-01~ |
18213-66J20-000 |
from US $324.34 |
||
|
16
|
16
18213-66J10-000
センサ,ヒーテツドオキシジェン,リヤ
H27A; 2006-06-01~2006-08-01 |
18213-66J10-000 |
— | ||
| replacement | |||||
|
16
|
16
18213-66J11-000 SENSOR,OXYGENH27A; 2006-06-01~2006-08-01 |
18213-66J11-000 |
from US $276.05 |
||
|
16
|
16
18213-66J11-000 SENSOR,OXYGENH27A; 2006-08-01~ |
18213-66J11-000 |
from US $276.05 |
||
|
17
|
17
09404-10417-000 CLAMP(L:97)H27A; 2006-06-01~ |
09404-10417-000 |
from US $3.71 |
||
|
18
|
18
09404-12202-000 CLAMP(L:103)H27A; 2006-06-01~ |
09404-12202-000 |
US $29.10 |
||
