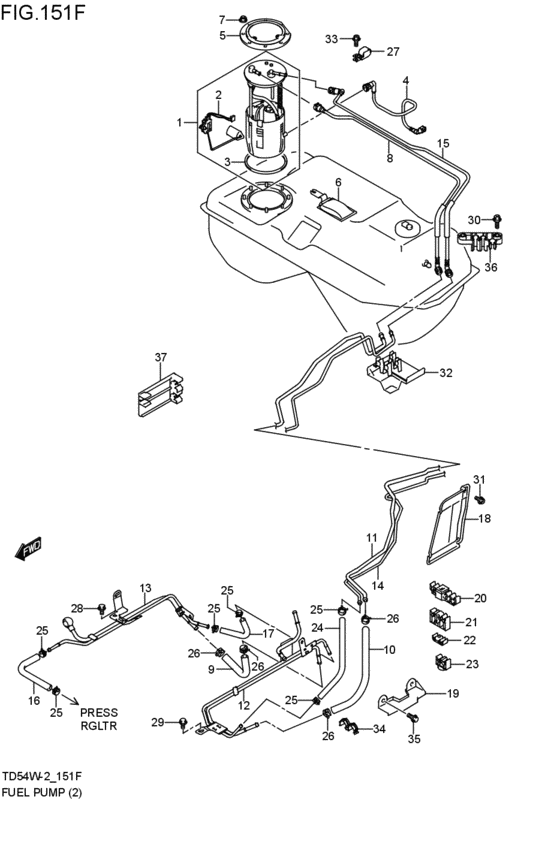

Fuel Pump (H27A; 2006-06-01~) Diagram Suzuki ESCUDO
- Year
- 2007 - 2011
- Sales region
- Japan
- Engine
- H27A
- transmission
- AT
- Number of doors
- 5DR
- grade
- XGC
- number of the gears
- 5AT
- air bag
- 2AB
- esp
- NESP
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
15100-65842-000 PUMP SET,FUELH27A; 2006-06-01~ |
15100-65842-000 |
US $697.68 |
||
|
2
|
2
34810-65J10-000 GAUGE ASSY,FUEL LEVELH27A; 2006-06-01~ |
34810-65J10-000 |
from US $75.44 |
||
|
3
|
3
15111-80J00-000 GASKET,FUEL PUMPH27A; 2006-06-01~ |
15111-80J00-000 |
from US $8.51 |
||
|
4
|
4
15112-65J00-000 PIPE,FUEL SUCTIONH27A; 2006-06-01~ |
15112-65J00-000 |
from US $31.46 |
||
|
5
|
5
15121-61J00-000 PLATE,FUEL PUMPH27A; 2006-06-01~ |
15121-61J00-000 |
US $10.56 |
||
|
6
|
6
15195-65J00-000 FILTER,FUEL SUCTIONH27A; 2006-06-01~ |
15195-65J00-000 |
from US $14.49 |
||
|
7
|
7
09159-06077-000 NUTH27A; 2006-06-01~ |
09159-06077-000 |
US $1.28 |
||
|
8
|
8
15814-65J01-000 PIPE,FUEL FEED PUMP TO PIPEポンプ ツー パイプ; H27A; 2006-06-01~ |
15814-65J01-000 |
US $104.80 |
||
|
9
|
9
15817-66J00-000
HOSE,FUEL NO.2 TO NO.1
NO.2 ツー NO.1; H27A; 2006-06-01~ |
15817-66J00-000 |
— | ||
|
10
|
10
15818-66J00-000 HOSE,FUEL BODY TO ENGボデー ツー エンジン; H27A; 2006-06-01~ |
15818-66J00-000 |
US $17.30 |
||
|
11
|
11
15821-65J04-000 PIPE,FUELH27A; 2006-06-01~ |
15821-65J04-000 |
US $111.20 |
||
|
12
|
12
15830-66J01-000 PIPE,FUEL NO.2H27A; 2006-06-01~ |
15830-66J01-000 |
US $65.14 |
||
|
13
|
13
15840-66J00-000 PIPE,FUEL NO.1H27A; 2006-06-01~ |
15840-66J00-000 |
US $53.73 |
||
|
14
|
14
15861-65J04-000 PIPE,FUEL RTNH27A; 2006-06-01~ |
15861-65J04-000 |
US $99.20 |
||
|
15
|
15
15864-65J01-000 PIPE,FUEL RTN,PIPE TO PUMPパイプ ツー ポンプ; H27A; 2006-06-01~ |
15864-65J01-000 |
from US $47.30 |
||
|
16
|
16
15866-66J00-000 HOSE,FUEL RTN ENG SIDEエンジン サイド; H27A; 2006-06-01~ |
15866-66J00-000 |
US $15.24 |
||
|
17
|
17
15867-66J00-000
HOSE,FUEL RTN NO.1 TO NO.2
NO.1 ツー NO.2; H27A; 2006-06-01~ |
15867-66J00-000 |
— | ||
|
18
|
18
15871-65J00-000 COVER,FUEL PIPEH27A; 2006-06-01~ |
15871-65J00-000 |
US $5.89 |
||
|
19
|
19
15874-66J00-000
COVER,FUEL HOSE
H27A; 2006-06-01~ |
15874-66J00-000 |
— | ||
|
20
|
20
15892-65J00-000 CLAMP,FUEL PIPEH27A; 2006-06-01~ |
15892-65J00-000 |
US $3.81 |
||
|
21
|
21
15893-65J00-000 CLAMP,FUEL PIPEH27A; 2006-06-01~ |
15893-65J00-000 |
US $4.16 |
||
|
22
|
22
15894-65J00-000 CLAMP,FUEL PIPEH27A; 2006-06-01~ |
15894-65J00-000 |
US $3.95 |
||
|
23
|
23
15895-65J00-000 CLAMP,FUEL PIPEH27A; 2006-06-01~ |
15895-65J00-000 |
US $3.09 |
||
|
24
|
24
09356-55117-600 HOSE(5.5X11.5X600)Hose, fuel rtn (body side) L:600>240; H27A; 2006-06-01~ |
09356-55117-600 |
US $69.60 |
||
|
25
|
25
09401-10409-000 CLIPH27A; 2006-06-01~ |
09401-10409-000 |
from US $1.12 |
||
|
26
|
26
09401-11420-000 CLIPH27A; 2006-06-01~ |
09401-11420-000 |
US $1.52 |
||
|
27
|
27
09403-13410-000 CLAMPH27A; 2006-06-01~ |
09403-13410-000 |
US $21.30 |
||
|
28
|
28
01550-0612A-000 BOLTH27A; 2006-06-01~ |
01550-0612A-000 |
from US $0.76 |
||
|
29
|
29
01560-0612A-000 BoltH27A; 2006-06-01~ |
01560-0612A-000 |
US $12.50 |
||
|
30
|
30
02162-0610A-000 SCREWH27A; 2006-06-01~ |
02162-0610A-000 |
from US $0.64 |
||
|
31
|
31
02162-0612A-000 SCREWBolt, bracket H27A; 2006-06-01~ |
02162-0612A-000 |
from US $0.80 |
||
|
32
|
32
15872-65J00-000 PROTECTOR,FUEL PIPEH27A; 2006-06-01~ |
15872-65J00-000 |
US $4.38 |
||
|
33
|
33
09115-06005-000 BOLT(6X16)H27A; 2006-06-01~ |
09115-06005-000 |
US $1.28 |
||
|
34
|
34
09408-00083-000 CLAMPH27A; 2006-06-01~ |
09408-00083-000 |
US $17.30 |
||
|
35
|
35
01550-0616A-000 BOLTH27A; 2006-06-01~ |
01550-0616A-000 |
from US $0.76 |
||
|
36
|
36
15813-65J00-000 CLAMP,FUEL PIPEH27A; 2006-06-01~ |
15813-65J00-000 |
US $5.89 |
||
|
37
|
37
15875-65J00-000 COVER,FUEL PIPEH27A; 2006-10-01~ |
15875-65J00-000 |
US $2.90 |
