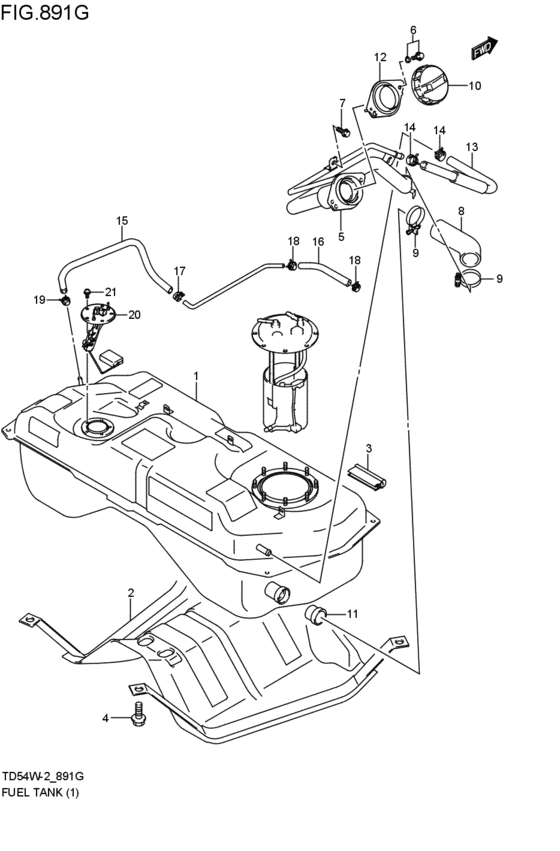

fuel tank (5DR; 2006-06-01~) Diagram Suzuki ESCUDO
- Year
- 2007 - 2011
- Sales region
- Japan
- Engine
- H27A
- transmission
- AT
- Number of doors
- 5DR
- grade
- XGC
- number of the gears
- 5AT
- air bag
- 2AB
- esp
- NESP
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
89101-65821-000
TANK ASSY,FUEL
5DR; 2006-06-01~ |
89101-65821-000 |
— | ||
|
2
|
2
89190-65J00-000 PROTECTOR,FUEL TANK5DR; 2006-06-01~ |
89190-65J00-000 |
US $253.92 |
||
|
3
|
3
89445-65J00-000
Protector,fuel tank flange
5DR; 2006-06-01~ |
89445-65J00-000 |
— | ||
| replacement | |||||
|
3
|
3
89445-60G00-000 PROTECTOR,TANK FLANGE5DR; 2006-06-01~ |
89445-60G00-000 |
US $6.48 |
||
|
4
|
4
09118-10073-000 BOLT(10X30)5DR; 2006-06-01~ |
09118-10073-000 |
US $1.44 |
||
|
5
|
5
89201-65J11-000 NECK ASSY,FUEL FILLER5DR; 2006-06-01~ |
89201-65J11-000 |
US $259.20 |
||
|
6
|
6
09116-05014-000 BOLT(5X20)5DR; 2006-06-01~ |
09116-05014-000 |
US $1.82 |
||
|
7
|
7
09103-06265-000 BOLT(6X12)5DR; 2006-06-01~ |
09103-06265-000 |
US $1.28 |
||
|
8
|
8
89241-65J00-000 HOSE,FUEL TANK FILLER5DR; 2006-06-01~ |
89241-65J00-000 |
US $44 |
||
|
9
|
9
09400-45311-000 CLAMP5DR; 2006-06-01~ |
09400-45311-000 |
US $1.92 |
||
|
10
|
10
89260-73H00-000 CAP ASSY,FUEL FILLER5DR; 2006-06-01~ |
89260-73H00-000 |
from US $19.82 |
||
|
11
|
11
89270-75F00-000 VALVE,FUEL TANK INLET5DR; 2006-06-01~ |
89270-75F00-000 |
US $7.90 |
||
|
12
|
12
89285-58J00-000 PACKING,FUEL FILLER5DR; 2006-06-01~ |
89285-58J00-000 |
US $6.24 |
||
|
13
|
13
89290-65J00-000 HOSE,FUEL TANK BREATHER5DR; 2006-06-01~ |
89290-65J00-000 |
US $13.14 |
||
|
14
|
14
09401-16403-000 CLIPClip, 2nd air hose no.2 5DR; 2006-06-01~ |
09401-16403-000 |
from US $3.86 |
||
|
15
|
15
89442-65J00-000
ホース,エバポ
5DR; 2006-06-01~ |
89442-65J00-000 |
— | ||
| replacement | |||||
|
15
|
15
89442-67J00-000 HOSE,EVAP5DR; 2006-06-01~ |
89442-67J00-000 |
US $18.18 |
||
|
16
|
16
09355-54128-600
Hose,5.4x12.2x600
L:600>120; 5DR; 2006-06-01~ |
09355-54128-600 |
— | ||
| replacement | |||||
|
16
|
16
09355-56128-600 HOSE(5.6X12.4X600)L:600>120; 5DR; 2006-06-01~ |
09355-56128-600 |
US $8.64 |
||
|
17
|
17
09401-11415-000 CLIP5DR; 2006-06-01~ |
09401-11415-000 |
from US $1.06 |
||
|
18
|
18
09401-11415-000 CLIP5DR; 2006-06-01~ |
09401-11415-000 |
from US $1.06 |
||
|
19
|
19
09401-12404-000 CLIPClip 5DR; 2006-06-01~ |
09401-12404-000 |
from US $1.52 |
||
|
20
|
20
34810-65J00-000 GAUGE ASSY,FUEL LEVEL5DR; 2006-06-01~ |
34810-65J00-000 |
from US $79.99 |
||
|
21
|
21
09136-05045-000 SCREW(5X10)5DR; 2006-06-01~ |
09136-05045-000 |
US $0.96 |
||
