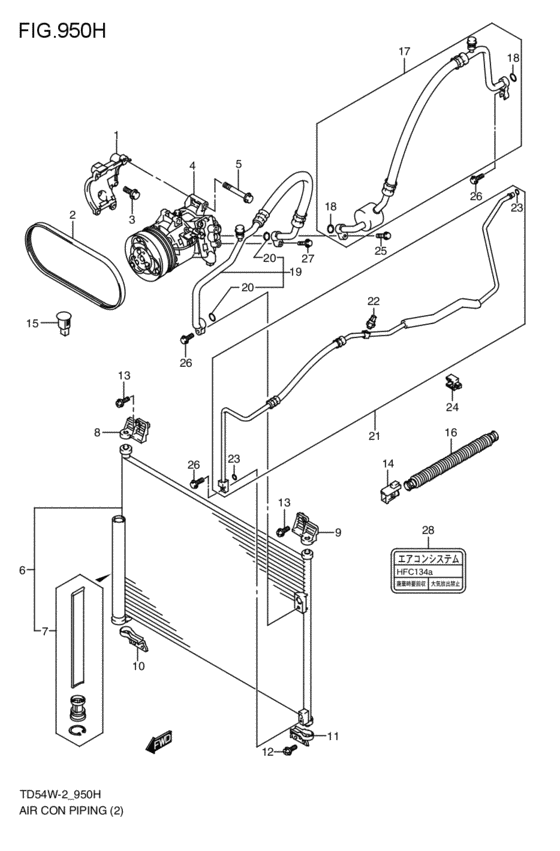

air-conditioner piping (H27A; 2006-06-01~) Diagram Suzuki ESCUDO
- Year
- 2007 - 2011
- Sales region
- Japan
- Engine
- H27A
- transmission
- AT
- Number of doors
- 5DR
- grade
- XGD
- number of the gears
- 5AT
- air bag
- 2AB
- esp
- ESP
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
95111-64J20-000 BRACKET,CPRSRH27A; 2006-06-01~ |
95111-64J20-000 |
US $79.49 |
||
|
2
|
2
95141-64J20-000 V-BELT,4PK 1075H27A; 2006-06-01~ |
95141-64J20-000 |
US $18.86 |
||
|
3
|
3
01550-1030A-000 BOLTH27A; 2006-06-01~ |
01550-1030A-000 |
from US $1.12 |
||
|
4
|
4
95200-64JC0-000 COMPRESSOR ASSYH27A; 2006-06-01~ |
95200-64JC0-000 |
US $1,234.96 |
||
|
5
|
5
01550-0855A-000 BOLTBolt, gear holder H27A; 2006-06-01~ |
01550-0855A-000 |
from US $1.22 |
||
|
6
|
6
95310-64J00-000
コンデンサアッシ
H27A; 2006-06-01~ |
95310-64J00-000 |
— | ||
| replacement | |||||
|
6
|
6
95310-64JA0-000 CONDENSER ASSYH27A; 2006-06-01~ |
95310-64JA0-000 |
from US $416 |
||
|
7
|
7
95339-58J00-000
ドライヤキット
H27A; 2006-06-01~ |
95339-58J00-000 |
— | ||
| replacement | |||||
|
7
|
7
95339-58J10-000 DRYER KITH27A; 2006-06-01~ |
95339-58J10-000 |
from US $48.35 |
||
|
8
|
8
95391-64J00-000 BRACKET,COND UPPER,RH27A; 2006-06-01~ |
95391-64J00-000 |
from US $6.68 |
||
|
9
|
9
95391-64J10-000 BRACKET,COND UPPER,LH27A; 2006-06-01~ |
95391-64J10-000 |
from US $7.04 |
||
|
10
|
10
95392-64J00-000 BRACKET,COND LOWER,RH27A; 2006-06-01~ |
95392-64J00-000 |
from US $10.40 |
||
|
11
|
11
95392-64J10-000 BRACKET,COND LOWER,LH27A; 2006-06-01~ |
95392-64J10-000 |
US $10.40 |
||
|
12
|
12
02162-0612A-000 SCREWBolt, bracket H27A; 2006-06-01~ |
02162-0612A-000 |
from US $0.80 |
||
|
13
|
13
02162-0616A-000 SCREWH27A; 2006-06-01~ |
02162-0616A-000 |
from US $1.04 |
||
| replacement | |||||
|
13
|
13
02162-0616B-000 SCREWBolt, adjust H27A; 2006-06-01~ |
02162-0616B-000 |
from US $0.80 |
||
|
14
|
14
95641-59J00-000 SENSOR,ROOM TEMPDENSO; H27A; 2006-06-01~ |
95641-59J00-000 |
US $154.98 |
||
|
15
|
15
95642-54J01-000 SENSOR,SUN LIGHTH27A; 2006-06-01~ |
95642-54J01-000 |
from US $32 |
||
|
16
|
16
95647-64J00-000 DUCT,ROOM TEMP SNSRH27A; 2006-06-01~ |
95647-64J00-000 |
US $12.29 |
||
|
17
|
17
95710-64J20-000 HOSE,SUCTIONH27A; 2006-06-01~ |
95710-64J20-000 |
US $114.82 |
||
|
18
|
18
95896-50G00-000 O-RING,D:2.4 ID:13.4O ring (d:2.5,id:13.4) H27A; 2006-06-01~ |
95896-50G00-000 |
US $1.28 |
||
|
19
|
19
95720-64J20-000 HOSE,DISCHARGEH27A; 2006-06-01~ |
95720-64J20-000 |
from US $75.44 |
||
|
20
|
20
95895-50G00-000 O-RING,D:2.4 ID:10.8H27A; 2006-06-01~ |
95895-50G00-000 |
US $1.28 |
||
|
21
|
21
95731-64J00-000 HOSE,LIQUIDH27A; 2006-06-01~ |
95731-64J00-000 |
US $144.62 |
||
|
22
|
22
95546-58J00-000 SENSOR,PRESSUREDENSO; H27A; 2006-06-01~ |
95546-58J00-000 |
US $52.80 |
||
|
23
|
23
95891-50G00-000 O-RING,D:1.8 ID:6.7H27A; 2006-06-01~ |
95891-50G00-000 |
from US $0.96 |
||
|
24
|
24
09403-08331-000 CLAMPH27A; 2006-06-01~ |
09403-08331-000 |
US $1.60 |
||
|
25
|
25
01550-0620A-000 BOLTH27A; 2006-06-01~ |
01550-0620A-000 |
from US $0.76 |
||
|
26
|
26
01550-0620A-000 BOLTH27A; 2006-06-01~ |
01550-0620A-000 |
from US $0.76 |
||
|
27
|
27
01550-0620A-000 BOLTH27A; 2006-06-01~ |
01550-0620A-000 |
from US $0.76 |
||
|
28
|
28
95956-84GK0-000
ラベル,レフリジェラント
H27A; 2006-06-01~ |
95956-84GK0-000 |
— | ||
| replacement | |||||
|
28
|
28
95956-84GK1-000
New Genuine Part
H27A; 2006-06-01~ |
95956-84GK1-000 |
— | ||
