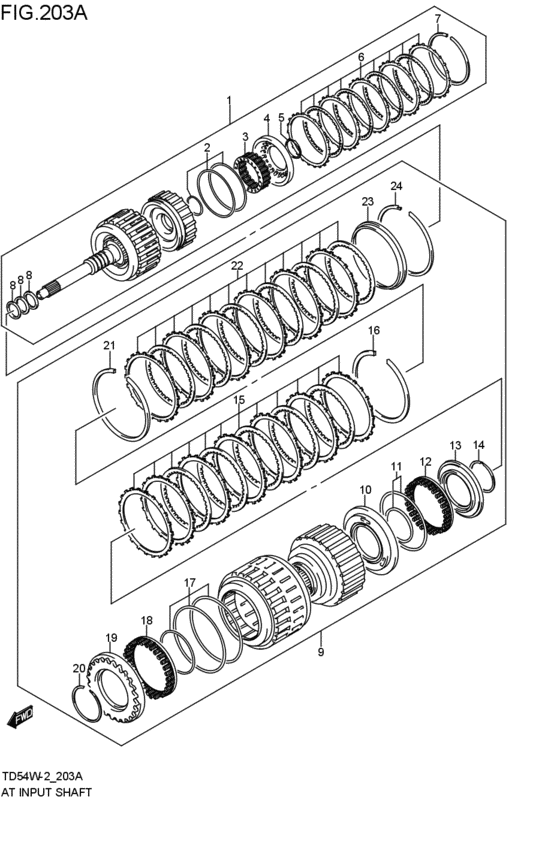

at - input shaft (AT:H27A; 2006-06-01~) Diagram Suzuki ESCUDO
- Year
- 2007 - 2011
- Sales region
- Japan
- Engine
- H27A
- transmission
- AT
- Number of doors
- 5DR
- grade
- XGD
- number of the gears
- 5AT
- air bag
- 2AB
- esp
- ESP
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
24100-64J10-000
クラッチアッシ,フォワード
AT:H27A; 2006-06-01~ |
24100-64J10-000 |
— | ||
| replacement | |||||
|
1
|
1
24100-64J11-000 CLUTCH ASSY,FORWARDAT:H27A; 2006-06-01~ |
24100-64J11-000 |
US $823.68 |
||
|
2
|
2
26615-54JT0-000
O-RING SET,FWD CL PISTON
AT:H27A; 2006-06-01~ |
26615-54JT0-000 |
— | ||
|
3
|
3
26613-64J10-000
SPRING,FWD CLUTCH RETURN
AT:H27A; 2006-06-01~ |
26613-64J10-000 |
— | ||
|
4
|
4
26614-54J10-000
BALANCER,FWD CLUTCH
AT:H27A; 2006-06-01~ |
26614-54J10-000 |
— | ||
|
5
|
5
26619-54J10-000
CIRCLIP,FWD CL BALANCER
AT:H27A; 2006-06-01~ |
26619-54J10-000 |
— | ||
|
6
|
6
26616-54JT0-000 DISC SET,FORWARD CLUTCHAT:H27A; 2006-06-01~ |
26616-54JT0-000 |
US $263.12 |
||
|
7
|
7
26619-54J30-000
CIRCLIP,FWD CLUTCH PLATE
AT:H27A; 2006-06-01~ |
26619-54J30-000 |
— | ||
|
8
|
8
24161-54J10-000 RING,INPUT SHAFT OIL SEALAT:H27A; 2006-06-01~ |
24161-54J10-000 |
from US $4.70 |
||
|
9
|
9
26600-64J10-000
CLUTCH ASSY,DIRECT&REVERSE
AT:H27A; 2006-06-01~ |
26600-64J10-000 |
— | ||
|
10
|
10
26622-54J10-000
PISTON,DIRECT CLUTCH
AT:H27A; 2006-06-01~2007-05-01 |
26622-54J10-000 |
— | ||
|
10
|
10
26622-64J10-000
PISTON,DIRECT CLUTCH
AT:H27A; 2007-06-01~ |
26622-64J10-000 |
— | ||
|
11
|
11
26625-54JT0-000
O-RING SET,DIRECT CL PSTN
AT:H27A; 2006-06-01~ |
26625-54JT0-000 |
— | ||
|
12
|
12
26623-54J10-000
SPRING,DIR CLUTCH RETURN
AT:H27A; 2006-06-01~ |
26623-54J10-000 |
— | ||
|
13
|
13
26624-54J10-000
BALANCER,DIRECT CLUTCH
AT:H27A; 2006-06-01~ |
26624-54J10-000 |
— | ||
|
14
|
14
26629-54J10-000
CIRCLIP,DIR CL RTN SPRING
AT:H27A; 2006-06-01~ |
26629-54J10-000 |
— | ||
|
15
|
15
26626-54JT0-000 DISC SET,DIRECT CLUTCHAT:H27A; 2006-06-01~ |
26626-54JT0-000 |
US $263.12 |
||
|
16
|
16
26629-54J30-000
CIRCLIP,DIR CLUTCH PLATE
AT:H27A; 2006-06-01~ |
26629-54J30-000 |
— | ||
|
17
|
17
26635-54JT0-000
O-RING SET,REV CLUTCH PISTON
AT:H27A; 2006-06-01~ |
26635-54JT0-000 |
— | ||
|
18
|
18
26633-54J10-000
SPRING,REV CLUTCH RETURN
AT:H27A; 2006-06-01~ |
26633-54J10-000 |
— | ||
|
19
|
19
26634-54J10-000
BALANCER,REVERSE CLUTCH
AT:H27A; 2006-06-01~ |
26634-54J10-000 |
— | ||
|
20
|
20
26639-54J10-000
CIRCLIP,REV CLUTCH BALANCER
AT:H27A; 2006-06-01~ |
26639-54J10-000 |
— | ||
|
21
|
21
26629-54J30-000
CIRCLIP,DIR CLUTCH PLATE
AT:H27A; 2006-06-01~ |
26629-54J30-000 |
— | ||
|
22
|
22
26636-54JT0-000 DISC SET,REV CLUTCHAT:H27A; 2006-06-01~ |
26636-54JT0-000 |
US $322 |
||
|
23
|
23
26631-54J10-000
SLEEVE,REV CLUTCH
AT:H27A; 2006-06-01~ |
26631-54J10-000 |
— | ||
|
24
|
24
26639-54J50-000
CIRCLIP,REV CL SLEEVE
AT:H27A; 2006-06-01~ |
26639-54J50-000 |
— | ||
