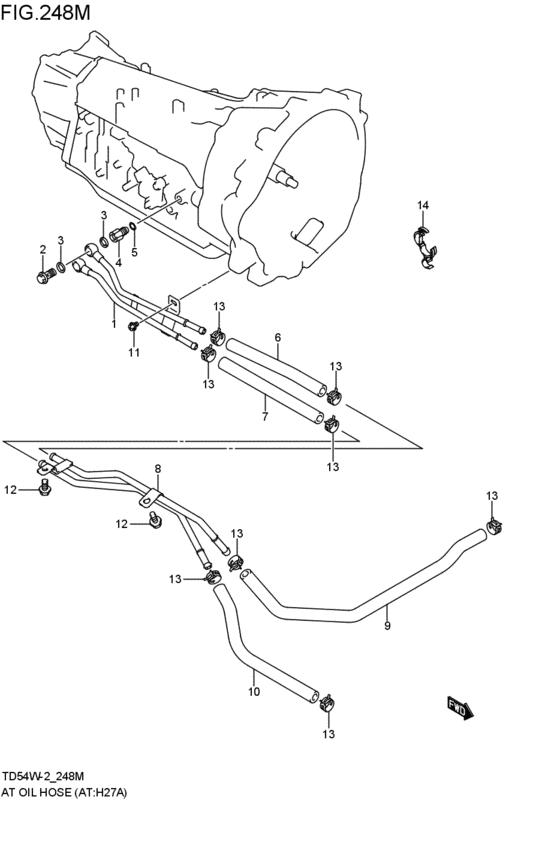

at - oil hose (AT:H27A; 2006-06-01~) Diagram Suzuki ESCUDO
- Year
- 2007 - 2011
- Sales region
- Japan
- Engine
- H27A
- transmission
- AT
- Number of doors
- 5DR
- grade
- XGD
- number of the gears
- 5AT
- air bag
- 2AB
- esp
- ESP
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
22910-64J10-000 PIPE,OIL NO.1AT:H27A; 2006-06-01~ |
22910-64J10-000 |
US $111.20 |
||
|
2
|
2
22935-79J10-000 BOLT,OIL PIPE UNIONAT:H27A; 2006-06-01~ |
22935-79J10-000 |
US $8 |
||
|
3
|
3
22913-59J10-000 GASKET,14X20X0.9AT:H27A; 2006-06-01~ |
22913-59J10-000 |
from US $1.51 |
||
|
4
|
4
24732-53J10-000 UNION,OIL PIPEAT:H27A; 2006-06-01~ |
24732-53J10-000 |
US $22.40 |
||
|
5
|
5
24733-53J10-000 O-RING,OIL PIPE UNIONAT:H27A; 2006-06-01~ |
24733-53J10-000 |
US $1.60 |
||
|
6
|
6
22936-66H10-000 HOSE,OIL INLET NO.1AT:H27A; 2006-06-01~ |
22936-66H10-000 |
US $26.40 |
||
|
7
|
7
22935-68H10-000 HOSE,OIL NO.2AT:H27A; 2006-06-01~ |
22935-68H10-000 |
US $28.80 |
||
|
8
|
8
22920-64J11-000 PIPE,OILAT:H27A; 2006-06-01~ |
22920-64J11-000 |
from US $47.95 |
||
|
9
|
9
22933-64J30-000 HOSE,OIL NO.3AT:H27A; 2006-06-01~ |
22933-64J30-000 |
from US $20.61 |
||
|
10
|
10
22934-64J30-000 HOSE,OIL NO.4AT:H27A; 2006-06-01~ |
22934-64J30-000 |
from US $14.60 |
||
|
11
|
11
02162-0610A-000 SCREWAT:H27A; 2006-06-01~ |
02162-0610A-000 |
from US $0.64 |
||
|
12
|
12
01550-0816A-000 BOLTBolt, rear AT:H27A; 2006-06-01~ |
01550-0816A-000 |
from US $0.91 |
||
|
13
|
13
09401-15410-000 CLIPAT:H27A; 2006-06-01~ |
09401-15410-000 |
from US $2.24 |
||
|
14
|
14
09408-00210-000 CLAMPAT:H27A; 2006-06-01~ |
09408-00210-000 |
US $2.24 |
