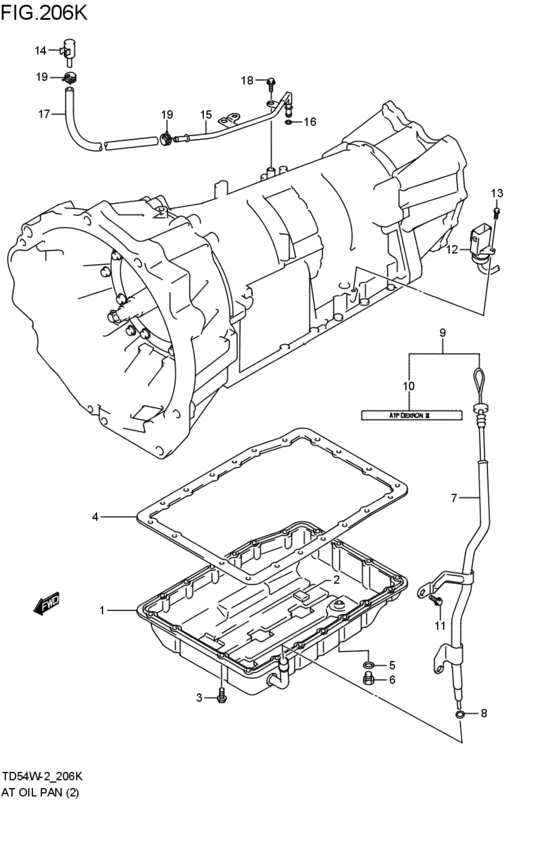

at - oil pan (AT:H27A; 2006-06-01~) Diagram Suzuki ESCUDO
- Year
- 2007 - 2011
- Sales region
- Japan
- Engine
- H27A
- transmission
- AT
- Number of doors
- 5DR
- grade
- XGD
- number of the gears
- 5AT
- air bag
- 2AB
- esp
- ESP
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
24760-64J10-000 PAN,TRANSMISSION OILAT:H27A; 2006-06-01~ |
24760-64J10-000 |
US $243.20 |
||
|
2
|
2
24745-57B00-000 MAGNET,T/M OIL PANAT:H27A; 2006-06-01~ |
24745-57B00-000 |
US $5.60 |
||
|
3
|
3
24882-79C10-000 BOLT,T/M OIL PANAT:H27A; 2006-06-01~ |
24882-79C10-000 |
US $1.52 |
||
|
4
|
4
24892-54J10-000 GASKET,T/M OIL PANAT:H27A; 2006-06-01~ |
24892-54J10-000 |
from US $21.83 |
||
|
5
|
5
24781-57B00-000 GASKET,DRAIN PLUGAT:H27A; 2006-06-01~ |
24781-57B00-000 |
from US $1.52 |
||
|
6
|
6
24823-79C10-000 PLUG,DRAINAT:H27A; 2006-06-01~ |
24823-79C10-000 |
from US $2.13 |
||
|
7
|
7
22940-64J11-000
TUBE,OIL FILLER
AT:H27A; 2006-06-01~ |
22940-64J11-000 |
— | ||
|
8
|
8
09280-10016-000 O RING(D:1.9,ID:9.8)O ring AT:H27A; 2006-06-01~ |
09280-10016-000 |
from US $1.52 |
||
|
9
|
9
22950-64J10-000 GAUGE ASSY,OILAT:H27A; 2006-06-01~ |
22950-64J10-000 |
from US $44.80 |
||
|
10
|
10
24839-63J10-000 EMBLEM,ATFAT:H27A; 2006-06-01~ |
24839-63J10-000 |
US $1.60 |
||
|
11
|
11
01550-0816A-000 BOLTBolt, rear AT:H27A; 2006-06-01~ |
01550-0816A-000 |
from US $0.91 |
||
|
12
|
12
24893-64J30-000 HARNESS,SOLENOID WIREAT:H27A; 2006-06-01~ |
24893-64J30-000 |
US $239.20 |
||
|
13
|
13
29989-57B00-000 BoltAT:H27A; 2006-06-01~ |
29989-57B00-000 |
US $5.59 |
||
|
14
|
14
24773-57B00-000 BREATHER,AT T/MAT:H27A; 2006-06-01~ |
24773-57B00-000 |
US $19.20 |
||
|
15
|
15
24772-54J10-000
UNION,T/M BREATHER
AT:H27A; 2006-06-01~ |
24772-54J10-000 |
— | ||
|
16
|
16
24774-54J10-000
O-RING,T/M BREATHER UNION
AT:H27A; 2006-06-01~ |
24774-54J10-000 |
— | ||
|
17
|
17
24771-54J10-000
HOSE,T/M BREATHER
AT:H27A; 2006-06-01~ |
24771-54J10-000 |
— | ||
|
18
|
18
29969-57B00-000
BOLT,THROTTLE CABLE CLAMP
AT:H27A; 2006-06-01~ |
29969-57B00-000 |
— | ||
|
19
|
19
24735-57B00-000 CLIP,BREATHER HOSEAT:H27A; 2006-06-01~ |
24735-57B00-000 |
US $5.76 |
