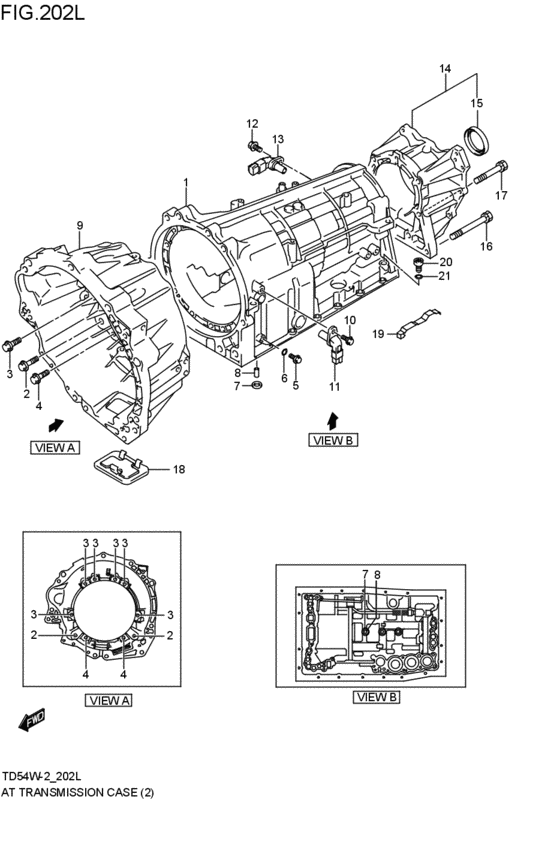

at - transmission case (AT:H27A; 2006-06-01~) Diagram Suzuki ESCUDO
- Year
- 2007 - 2011
- Sales region
- Japan
- Engine
- H27A
- transmission
- AT
- Number of doors
- 5DR
- grade
- XGD
- number of the gears
- 5AT
- air bag
- 2AB
- esp
- ESP
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
24720-64J10-000
CASE,T/M
AT:H27A; 2006-06-01~ |
24720-64J10-000 |
— | ||
|
2
|
2
24736-54J10-000
BOLT,CONVERTER HOUSING NO.1
AT:H27A; 2006-06-01~ |
24736-54J10-000 |
— | ||
|
3
|
3
24723-53J10-000
BOLT,HSG&CASE NO.3
AT:H27A; 2006-06-01~ |
24723-53J10-000 |
— | ||
|
4
|
4
24736-54J30-000 BOLT,CONVERTER HOUSING NO.3AT:H27A; 2006-06-01~ |
24736-54J30-000 |
US $4.16 |
||
|
5
|
5
29849-57B00-000 PLUG,T/M CASEAT:H27A; 2006-06-01~ |
29849-57B00-000 |
US $5.89 |
||
|
6
|
6
29738-57B00-000 O-RINGAT:H27A; 2006-06-01~ |
29738-57B00-000 |
US $2.40 |
||
|
7
|
7
24818-68J10-000 GASKET,GOVERNOR APPLY NO.1AT:H27A; 2006-06-01~ |
24818-68J10-000 |
from US $5.18 |
||
|
8
|
8
24819-54J10-000 GASKET,BRAKE DRUMAT:H27A; 2006-06-01~ |
24819-54J10-000 |
US $13.98 |
||
|
9
|
9
24711-64J10-000
HOUSING,CONVERTER
AT:H27A; 2006-06-01~ |
24711-64J10-000 |
— | ||
|
10
|
10
24746-53J10-000 BOLT,INPUT SPEED SENSORAT:H27A; 2006-06-01~ |
24746-53J10-000 |
US $2.74 |
||
|
11
|
11
26143-79C10-000 SENSOR,SPEED INPUTAT:H27A; 2006-06-01~ |
26143-79C10-000 |
from US $113.63 |
||
|
12
|
12
24746-53J10-000 BOLT,INPUT SPEED SENSORAT:H27A; 2006-06-01~ |
24746-53J10-000 |
US $2.74 |
||
|
13
|
13
26143-79C10-000 SENSOR,SPEED INPUTAT:H27A; 2006-06-01~ |
26143-79C10-000 |
from US $113.63 |
||
|
14
|
14
24730-64J10-000
CASE ASSY,ADAPTER
AT:H27A; 2006-06-01~ |
24730-64J10-000 |
— | ||
|
15
|
15
24771-54J30-000 SEAL,EXTENSION CASE OILAT:H27A; 2006-06-01~ |
24771-54J30-000 |
from US $15.96 |
||
|
16
|
16
29972-57B00-000 BOLT,ADAPTOR&T/M CASE NO.3AT:H27A; 2006-06-01~ |
29972-57B00-000 |
US $16.34 |
||
|
17
|
17
24724-53J10-000
BOLT,ADAPTER&T/M CASE NO.1
AT:H27A; 2006-06-01~ |
24724-53J10-000 |
— | ||
|
18
|
18
22641-61A01-000 CAP,T/C,HOUSINGAT:H27A; 2006-06-01~ |
22641-61A01-000 |
US $11.04 |
||
|
19
|
19
24726-54J10-000
SPRING,PLATE STOPPER
AT:H27A; 2006-06-01~ |
24726-54J10-000 |
— | ||
|
20
|
20
24734-59J10-000 PLUG,T/M CASE NO.4AT:H27A; 2006-06-01~ |
24734-59J10-000 |
US $6.62 |
||
|
21
|
21
24733-53J10-000 O-RING,OIL PIPE UNIONAT:H27A; 2006-06-01~ |
24733-53J10-000 |
US $1.60 |
