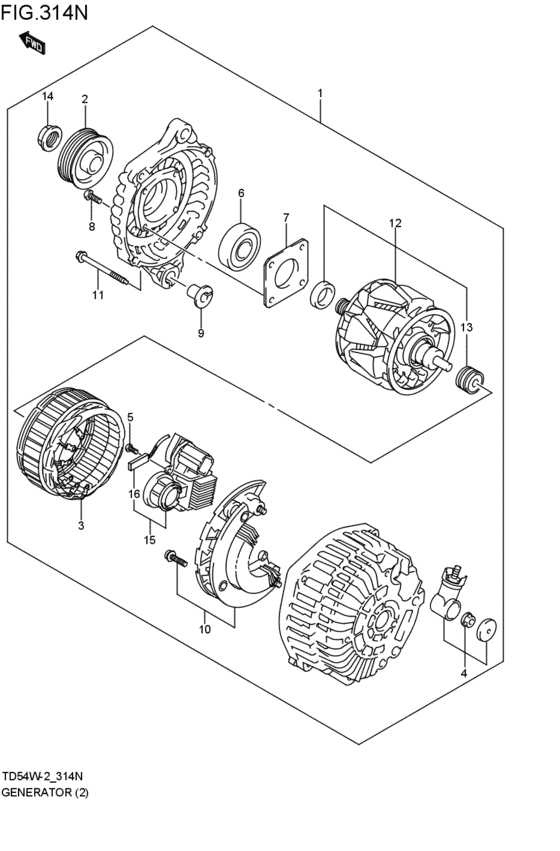

generator (H27A; 2006-06-01~) Diagram Suzuki ESCUDO
- Year
- 2007 - 2011
- Sales region
- Japan
- Engine
- H27A
- transmission
- AT
- Number of doors
- 5DR
- grade
- XGD
- number of the gears
- 5AT
- air bag
- 2AB
- esp
- ESP
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
31400-65J20-000
Generator assy
H27A; 2006-06-01~ |
31400-65J20-000 |
— | ||
| replacement | |||||
|
1
|
1
31400-65J21-000 GENERATOR ASSYH27A; 2006-06-01~ |
31400-65J21-000 |
US $2,096 |
||
|
2
|
2
31171-67D00-000 PULLEYH27A; 2006-06-01~ |
31171-67D00-000 |
US $92 |
||
|
3
|
3
31410-65J21-000
STATOR ASSY
H27A; 2006-06-01~ |
31410-65J21-000 |
— | ||
| replacement | |||||
|
3
|
3
31410-65J20-000
STATOR ASSY
H27A; 2006-06-01~ |
31410-65J20-000 |
— | ||
|
4
|
4
31514-65J20-000 TERMINAL SETH27A; 2006-06-01~ |
31514-65J20-000 |
US $14.83 |
||
|
5
|
5
31516-65J20-000 SCREWH27A; 2006-06-01~ |
31516-65J20-000 |
US $7.03 |
||
|
6
|
6
31582-50F20-000
Bearing,front
H27A; 2006-06-01~ |
31582-50F20-000 |
— | ||
| replacement | |||||
|
6
|
6
31582-50F30-000 BEARING,FRONTH27A; 2006-06-01~ |
31582-50F30-000 |
from US $27.45 |
||
|
7
|
7
31585-65J10-000 RETAINERH27A; 2006-06-01~ |
31585-65J10-000 |
US $7.36 |
||
|
8
|
8
31586-86520-000 SCREW SETH27A; 2006-06-01~ |
31586-86520-000 |
US $5.30 |
||
|
9
|
9
31616-83E00-000 BUSHH27A; 2006-06-01~ |
31616-83E00-000 |
US $4.97 |
||
|
10
|
10
31621-65J20-000 RECTIFIER SETH27A; 2006-06-01~ |
31621-65J20-000 |
US $228.16 |
||
|
11
|
11
31651-86520-000 SCREW SETH27A; 2006-06-01~ |
31651-86520-000 |
US $5.78 |
||
|
12
|
12
31710-65J20-000
ROTOR ASSY
H27A; 2006-06-01~ |
31710-65J20-000 |
— | ||
| replacement | |||||
|
12
|
12
31710-65J21-000
ROTOR ASSY
H27A; 2006-06-01~ |
31710-65J21-000 |
— | ||
|
13
|
13
31612-60A10-000
Bearing,rr
H27A; 2006-06-01~ |
31612-60A10-000 |
— | ||
| replacement | |||||
|
13
|
13
31612-60A11-000 BEARING,REARH27A; 2006-06-01~ |
31612-60A11-000 |
US $24 |
||
|
14
|
14
31775-50F20-000 NUTH27A; 2006-06-01~ |
31775-50F20-000 |
US $2.72 |
||
|
15
|
15
32500-65J20-000 REGULATOR SETH27A; 2006-06-01~ |
32500-65J20-000 |
US $364.32 |
||
|
16
|
16
31631-65J20-000 BRUSH SETH27A; 2006-06-01~ |
31631-65J20-000 |
US $14.32 |
||
