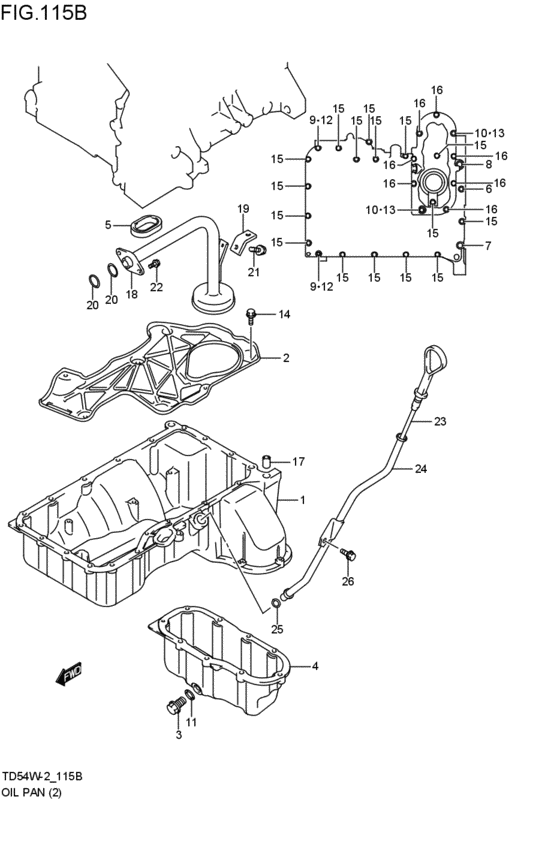

oil pan (H27A; 2006-06-01~) Diagram Suzuki ESCUDO
- Year
- 2007 - 2011
- Sales region
- Japan
- Engine
- H27A
- transmission
- AT
- Number of doors
- 5DR
- grade
- XGD
- number of the gears
- 5AT
- air bag
- 2AB
- esp
- ESP
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11511-66J01-000 PAN,OIL UPPERH27A; 2006-06-01~ |
11511-66J01-000 |
US $454.40 |
||
|
2
|
2
11512-66J00-000
PLATE,OIL PAN BAFFLE
H27A; 2006-06-01~ |
11512-66J00-000 |
— | ||
|
3
|
3
11518-63J01-000 PLUG,OIL DRAINH27A; 2006-06-01~ |
11518-63J01-000 |
from US $2.27 |
||
|
4
|
4
11521-66J00-000 PAN,OIL LOWERH27A; 2006-06-01~ |
11521-66J00-000 |
from US $96.77 |
||
|
5
|
5
16532-85F11-000 O-RING,OIL PANH27A; 2006-06-01~ |
16532-85F11-000 |
from US $2.59 |
||
|
6
|
6
09103-06167-000 BOLT(6X115)Bolt (l:115) H27A; 2006-06-01~ |
09103-06167-000 |
from US $2.13 |
||
|
7
|
7
09103-08230-000 BOLT(8X100)Bolt (8x100) H27A; 2006-06-01~ |
09103-08230-000 |
US $1.76 |
||
|
8
|
8
09103-08372-000 BOLT(8X190)H27A; 2006-06-01~ |
09103-08372-000 |
US $69.20 |
||
|
9
|
9
09159-06077-000 NUTH27A; 2006-06-01~ |
09159-06077-000 |
US $1.28 |
||
|
10
|
10
09159-06077-000 NUTH27A; 2006-06-01~ |
09159-06077-000 |
US $1.28 |
||
|
11
|
11
09168-14015-000 GASKET(14X20X1.5)Gasket, oil hose union H27A; 2006-06-01~ |
09168-14015-000 |
from US $1.17 |
||
|
12
|
12
01421-0620A-000 BOLT,STUDH27A; 2006-06-01~ |
01421-0620A-000 |
from US $1.12 |
||
|
13
|
13
01421-0620A-000 BOLT,STUDH27A; 2006-06-01~ |
01421-0620A-000 |
from US $1.12 |
||
|
14
|
14
01550-0612A-000 BOLTH27A; 2006-06-01~ |
01550-0612A-000 |
from US $0.76 |
||
|
15
|
15
01550-0625A-000 BOLTBolt H27A; 2006-06-01~ |
01550-0625A-000 |
from US $0.96 |
||
|
16
|
16
01550-0625A-000 BOLTBolt H27A; 2006-06-01~ |
01550-0625A-000 |
from US $0.96 |
||
|
17
|
17
04211-13149-000 PINH27A; 2006-06-01~ |
04211-13149-000 |
from US $1.28 |
||
|
18
|
18
16520-66J00-000 STRAINER,OIL PUMPH27A; 2006-06-01~ |
16520-66J00-000 |
US $54.83 |
||
|
19
|
19
16527-85F10-000 BRACKET,OIL STRAINER,NO.2H27A; 2006-06-01~ |
16527-85F10-000 |
US $3.75 |
||
|
20
|
20
09280-22020-000 O RING(D:2.4,ID:21.8)O ring (d:2.4,id:21.8) H27A; 2006-06-01~ |
09280-22020-000 |
from US $1.60 |
||
|
21
|
21
01550-0612A-000 BOLTH27A; 2006-06-01~ |
01550-0612A-000 |
from US $0.76 |
||
|
22
|
22
01550-0616A-000 BOLTH27A; 2006-06-01~ |
01550-0616A-000 |
from US $0.76 |
||
|
23
|
23
16910-66J11-000 GAUGE,OIL LEVELH27A; 2006-06-01~ |
16910-66J11-000 |
from US $17.42 |
||
|
24
|
24
16930-66J00-000 GUIDE,OIL LEVEL GAUGEH27A; 2006-06-01~ |
16930-66J00-000 |
US $33.44 |
||
|
25
|
25
09280-10016-000 O RING(D:1.9,ID:9.8)O ring H27A; 2006-06-01~ |
09280-10016-000 |
from US $1.52 |
||
|
26
|
26
01550-0612A-000 BOLTH27A; 2006-06-01~ |
01550-0612A-000 |
from US $0.76 |
