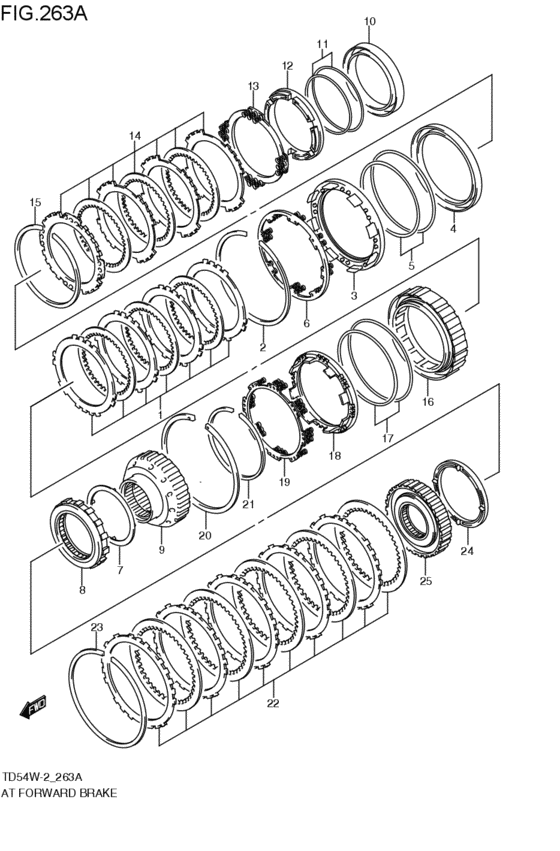

at - forward brakes (AT:H27A; 2006-06-01~) Diagram Suzuki ESCUDO
- Year
- 2006 - 2011
- Sales region
- Japan
- Engine
- H27A
- transmission
- AT
- Number of doors
- 5DR
- grade
- XS
- number of the gears
- 5AT
- air bag
- 6AB
- esp
- ESP
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
26736-54JT0-000 DISC SET,BRAKE NO.1AT:H27A; 2006-06-01~ |
26736-54JT0-000 |
from US $131.74 |
||
|
2
|
2
24156-53J10-000
RING,O/D BRAKE RETURN SPRING
AT:H27A; 2006-06-01~ |
24156-53J10-000 |
— | ||
|
3
|
3
26732-54J10-000
PISTON,BRAKE NO.1
AT:H27A; 2006-06-01~ |
26732-54J10-000 |
— | ||
|
4
|
4
26731-54J10-000
CYLINDER,BRAKE NO.1
AT:H27A; 2006-06-01~ |
26731-54J10-000 |
— | ||
|
5
|
5
26735-54JT0-000
O-RING SET,BRAKE NO.1 PISTON
AT:H27A; 2006-06-01~ |
26735-54JT0-000 |
— | ||
|
6
|
6
26733-54J10-000
SPRING,B-1 PISTON RETURN
AT:H27A; 2006-06-01~ |
26733-54J10-000 |
— | ||
|
7
|
7
26774-54J10-000 WASHER,FR PLNTY CARRIER THRAT:H27A; 2006-06-01~ |
26774-54J10-000 |
from US $4.01 |
||
|
8
|
8
26760-54J10-000
CLUTCH ASSY,ONE WAY NO.1
AT:H27A; 2006-06-01~ |
26760-54J10-000 |
— | ||
|
9
|
9
26763-54J10-000
RACE,ONE WAY CLUTCH NO.1
AT:H27A; 2006-06-01~ |
26763-54J10-000 |
— | ||
|
10
|
10
26741-54J10-000
CYLINDER,BRAKE NO.2
AT:H27A; 2006-06-01~ |
26741-54J10-000 |
— | ||
|
11
|
11
26745-54JT0-000
O-RING SET,BRAKE NO.2 PISTON
AT:H27A; 2006-06-01~ |
26745-54JT0-000 |
— | ||
|
12
|
12
26742-54J10-000
PISTON,BRAKE NO.2
AT:H27A; 2006-06-01~ |
26742-54J10-000 |
— | ||
|
13
|
13
26743-54J10-000
SPRING,B-2 PISTON RETURN
AT:H27A; 2006-06-01~ |
26743-54J10-000 |
— | ||
|
14
|
14
26746-54JT0-000 DISC SET,BRAKE NO.2AT:H27A; 2006-06-01~ |
26746-54JT0-000 |
from US $92.99 |
||
|
15
|
15
26749-54J10-000
CIRCLIP,B-2 PISTON RTN SPRING
AT:H27A; 2006-06-01~ |
26749-54J10-000 |
— | ||
|
16
|
16
26751-54J10-000
CYLINDER,2ND BRAKE
AT:H27A; 2006-06-01~ |
26751-54J10-000 |
— | ||
|
17
|
17
26755-54JT0-000
O-RING SET,BRAKE NO.3 PISTON
AT:H27A; 2006-06-01~ |
26755-54JT0-000 |
— | ||
|
18
|
18
26752-54J10-000
PISTON,2ND BRAKE
AT:H27A; 2006-06-01~ |
26752-54J10-000 |
— | ||
|
19
|
19
26753-54J10-000
SPRING,B-3 PISTON RETURN
AT:H27A; 2006-06-01~ |
26753-54J10-000 |
— | ||
|
20
|
20
26759-54J10-000
CIRCLIP,2ND BRAKE CYLINDER
AT:H27A; 2006-06-01~ |
26759-54J10-000 |
— | ||
|
21
|
21
26759-54J30-000
CIRCLIP,B-3 PISTON RTN SPRING
AT:H27A; 2006-06-01~ |
26759-54J30-000 |
— | ||
|
22
|
22
26756-54JT0-000 DISC SET,BRAKE NO.3AT:H27A; 2006-06-01~ |
26756-54JT0-000 |
from US $128.41 |
||
|
23
|
23
26759-54J50-000
CIRCLIP,2ND BRAKE PLATE
AT:H27A; 2006-06-01~ |
26759-54J50-000 |
— | ||
|
24
|
24
26764-54J30-000
WASHER,CLUTCH HUB THRUST
AT:H27A; 2006-06-01~ |
26764-54J30-000 |
— | ||
|
25
|
25
26760-54J30-000
CLUTCH ASSY,ONE WAY NO.2
AT:H27A; 2006-06-01~ |
26760-54J30-000 |
— |
