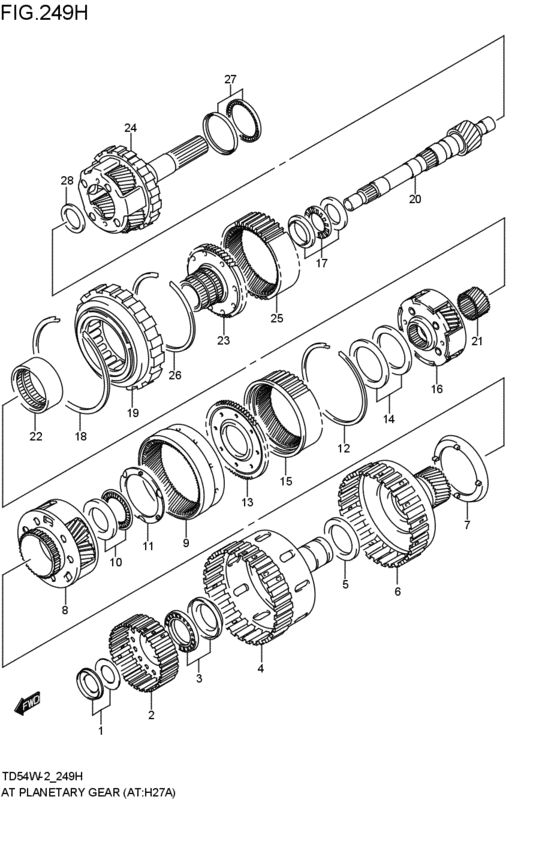

at - plastic material re-gear (AT:H27A; 2006-06-01~) Diagram Suzuki ESCUDO
- Year
- 2006 - 2011
- Sales region
- Japan
- Engine
- H27A
- transmission
- AT
- Number of doors
- 5DR
- grade
- XS
- number of the gears
- 5AT
- air bag
- 6AB
- esp
- ESP
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
24214-54JT0-000
BEARING SET,THRUST NO.2
AT:H27A; 2006-06-01~ |
24214-54JT0-000 |
— | ||
|
2
|
2
24212-54J10-000
HUB,FORWARD CLUTCH
AT:H27A; 2006-06-01~ |
24212-54J10-000 |
— | ||
|
3
|
3
24954-54JT0-000
BEARING SET,THRUST NO.3
AT:H27A; 2006-06-01~ |
24954-54JT0-000 |
— | ||
|
4
|
4
24952-54J10-000
ハブ,ダイレクトクラッチ
AT:H27A; 2006-06-01~ |
24952-54J10-000 |
— | ||
| replacement | |||||
|
4
|
4
24952-54J11-000
HUB,DIRECT CLUTCH
AT:H27A; 2006-06-01~ |
24952-54J11-000 |
— | ||
|
5
|
5
24914-54J10-000
BEARING,THRUST NDL NO.4
AT:H27A; 2006-06-01~ |
24914-54J10-000 |
— | ||
|
6
|
6
24910-54J10-000
ハブ,リバースクラッチ
AT:H27A; 2006-06-01~ |
24910-54J10-000 |
— | ||
| replacement | |||||
|
6
|
6
24910-54J11-000
HUB,REVERSE CLUTCH
AT:H27A; 2006-06-01~ |
24910-54J11-000 |
— | ||
|
7
|
7
24916-54J10-000 WASHER,REV CL DRUM THRUSTAT:H27A; 2006-06-01~ |
24916-54J10-000 |
from US $11.89 |
||
|
8
|
8
24920-54J10-000
ギヤ,フロントプラネタリ
AT:H27A; 2006-06-01~ |
24920-54J10-000 |
— | ||
| replacement | |||||
|
8
|
8
24920-54J11-000
GEAR,FR PLNTY
AT:H27A; 2006-06-01~ |
24920-54J11-000 |
— | ||
|
9
|
9
24951-54J10-000
ギヤ,フロント プラネタリ
AT:H27A; 2006-06-01~ |
24951-54J10-000 |
— | ||
| replacement | |||||
|
9
|
9
24900-54JT0-000
GEAR SET,PLANETARY
AT:H27A; 2006-06-01~ |
24900-54JT0-000 |
— | ||
|
10
|
10
24934-54JT0-000
BEARING SET,THRUST NO.5
AT:H27A; 2006-06-01~ |
24934-54JT0-000 |
— | ||
|
11
|
11
24957-54J10-000 WASHER,FR PLNTY CARRIER THRAT:H27A; 2006-06-01~ |
24957-54J10-000 |
from US $9.57 |
||
|
12
|
12
24959-54J10-000
CIRCLIP
AT:H27A; 2006-06-01~ |
24959-54J10-000 |
— | ||
|
13
|
13
24991-54J10-000
FLANGE,FR PLNTY RING GEAR
AT:H27A; 2006-06-01~ |
24991-54J10-000 |
— | ||
|
14
|
14
24956-54JT0-000
BEARING SET,THRUST NO.6
AT:H27A; 2006-06-01~ |
24956-54JT0-000 |
— | ||
|
15
|
15
24961-54J10-000
GEAR,MIDDLE PLANETARY RING
AT:H27A; 2006-06-01~ |
24961-54J10-000 |
— | ||
|
16
|
16
24950-54J10-000
GEAR,MIDDLE PLANETARY
AT:H27A; 2006-06-01~ |
24950-54J10-000 |
— | ||
|
17
|
17
24974-54JT0-000
BEARING SET,THRUST NO.7
AT:H27A; 2006-06-01~ |
24974-54JT0-000 |
— | ||
|
18
|
18
24769-54J50-000
CIRCLIP,ONE WAY CLUTCH NO.3
AT:H27A; 2006-06-01~ |
24769-54J50-000 |
— | ||
|
19
|
19
26760-54J50-000
CLUTCH ASSY,ONE WAY NO.3
AT:H27A; 2006-06-01~ |
26760-54J50-000 |
— | ||
|
20
|
20
24211-54J10-000
SHAFT,INTERMEDIATE
AT:H27A; 2006-06-01~ |
24211-54J10-000 |
— | ||
|
21
|
21
24941-54J10-000
GEAR,MIDDLE PLANETARY SUN
AT:H27A; 2006-06-01~ |
24941-54J10-000 |
— | ||
|
22
|
22
26763-54J50-000 RACE,ONE WAY CLUTCH NO.3AT:H27A; 2006-06-01~ |
26763-54J50-000 |
from US $26.46 |
||
|
23
|
23
24992-54J10-000
フランジ,リヤプラネタリリングギヤ
AT:H27A; 2006-06-01~ |
24992-54J10-000 |
— | ||
| replacement | |||||
|
23
|
23
24992-54J11-000
FLANGE,RR PLNTY RING GEAR
AT:H27A; 2006-06-01~ |
24992-54J11-000 |
— | ||
|
24
|
24
24120-64J10-000
Shaft,output
AT:H27A; 2006-06-01~ |
24120-64J10-000 |
— | ||
| replacement | |||||
|
24
|
24
24120-64JT0-000
SHAFT SET,OUTPUT
AT:H27A; 2006-06-01~ |
24120-64JT0-000 |
— | ||
|
25
|
25
24990-54J10-000
GEAR,RR PLNTY RING
AT:H27A; 2006-06-01~ |
24990-54J10-000 |
— | ||
|
26
|
26
24999-54J10-000
CIRCLIP,RR PLNTY FLANGE
AT:H27A; 2006-06-01~ |
24999-54J10-000 |
— | ||
|
27
|
27
24124-64JT0-000
BEARING SET,THRUST NO.9
AT:H27A; 2006-06-01~ |
24124-64JT0-000 |
— | ||
|
28
|
28
24984-54J10-000
BEARING,THRUST N0.8
AT:H27A; 2006-06-01~ |
24984-54J10-000 |
— | ||
