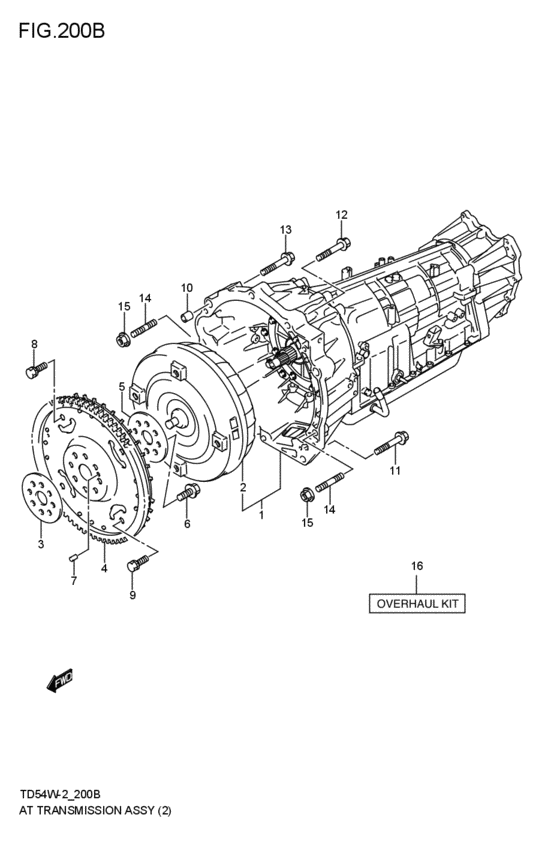

at - transmission assy (AT:H27A; 2006-06-01~) Diagram Suzuki ESCUDO
- Year
- 2006 - 2011
- Sales region
- Japan
- Engine
- H27A
- transmission
- AT
- Number of doors
- 5DR
- grade
- XS
- number of the gears
- 5AT
- air bag
- 6AB
- esp
- ESP
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
21000-64JH0-000
トランスミッションアッシ,オートマチック
AT:H27A; 2006-06-01~ |
21000-64JH0-000 |
— | ||
| replacement | |||||
|
1
|
1
21000-64JH1-000 T/M ASSY,AUTOMATICAT:H27A; 2006-06-01~ |
21000-64JH1-000 |
from US $9,380.88 |
||
|
1
|
1
21000-64JH0-111
トランスミッションアッシ,オートマチック
リビルト; AT:H27A; 2006-06-01~ |
21000-64JH0-111 |
— | ||
| replacement | |||||
|
1
|
1
21000-64JH1-111
トランスミッションアッシ,オートマチック
リビルト; AT:H27A; 2006-06-01~ |
21000-64JH1-111 |
— | ||
|
2
|
2
22700-54J10-000 CONVERTER,TORQUEAT:H27A; 2006-06-01~ |
22700-54J10-000 |
from US $760.19 |
||
|
3
|
3
22611-85FA0-000 FLANGE,T/C DRIVE PLATE FRAT:H27A; 2006-06-01~ |
22611-85FA0-000 |
from US $12.83 |
||
|
4
|
4
22620-64J10-000 PLATE,TC DRIVEAT:H27A; 2006-06-01~ |
22620-64J10-000 |
from US $140.09 |
||
|
5
|
5
22631-85FA0-000 FLANGE,T/C DRIVE PLATE RRAT:H27A; 2006-06-01~ |
22631-85FA0-000 |
from US $9.79 |
||
|
6
|
6
09103-10282-000 BOLT(10X18.5)AT:H27A; 2006-06-01~ |
09103-10282-000 |
from US $2.08 |
||
|
7
|
7
04221-08129-000 PINPin, knock AT:H27A; 2006-06-01~ |
04221-08129-000 |
from US $0.91 |
||
|
8
|
8
09103-10286-000 BOLT(10X12)AT:H27A; 2006-06-01~ |
09103-10286-000 |
from US $1.92 |
||
|
9
|
9
09103-10340-000 BOLT(10X12)AT:H27A; 2006-06-01~ |
09103-10340-000 |
US $15.10 |
||
|
10
|
10
09206-15001-000 PIN(12.4X15X17)AT:H27A; 2006-06-01~ |
09206-15001-000 |
from US $1.92 |
||
|
11
|
11
01550-1050A-000 BoltBolt, exhaust tube AT:H27A; 2006-06-01~ |
01550-1050A-000 |
from US $1.28 |
||
|
12
|
12
01550-1265A-000 BoltAT:H27A; 2006-06-01~ |
01550-1265A-000 |
US $24.70 |
||
|
13
|
13
01550-1275A-000 BoltAT:H27A; 2006-06-01~ |
01550-1275A-000 |
from US $2.08 |
||
|
14
|
14
09108-12012-000 BOLT,STUDAT:H27A; 2006-06-01~ |
09108-12012-000 |
from US $2.39 |
||
|
15
|
15
08316-1012A-000 NUTAT:H27A; 2006-06-01~ |
08316-1012A-000 |
from US $0.96 |
||
|
16
|
16
24700-54JT0-000
OVERHAUL KIT,AT
AT:H27A; 2006-06-01~ |
24700-54JT0-000 |
— | ||
