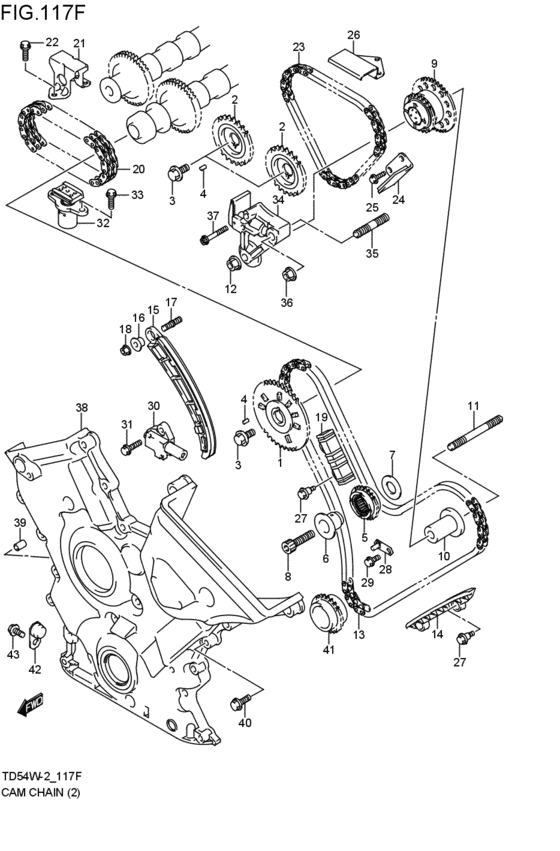

cam chain (H27A; 2006-06-01~) Diagram Suzuki ESCUDO
- Year
- 2006 - 2011
- Sales region
- Japan
- Engine
- H27A
- transmission
- AT
- Number of doors
- 5DR
- grade
- XS
- number of the gears
- 5AT
- air bag
- 6AB
- esp
- ESP
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
12741-66J00-000 SPROCKET,CAMSHAFT TIMING,RH27A; 2006-06-01~ |
12741-66J00-000 |
from US $38.64 |
||
|
2
|
2
12742-66J00-000 SPROCKET,CAMSHAFT TIMING,LH27A; 2006-06-01~ |
12742-66J00-000 |
from US $34.04 |
||
|
3
|
3
09103-12049-000 BOLT(12X25)Bolt (12x25) H27A; 2006-06-01~ |
09103-12049-000 |
from US $2.09 |
||
|
4
|
4
09206-05001-000 PIN(3.4X5X10)H27A; 2006-06-01~ |
09206-05001-000 |
from US $1.28 |
||
|
5
|
5
12745-66J00-000 SPROCKET,IDLER NO.1H27A; 2006-06-01~ |
12745-66J00-000 |
from US $51.57 |
||
|
6
|
6
12747-85FA0-000 SHAFT,SPROCKET IDLER NO.1H27A; 2006-06-01~ |
12747-85FA0-000 |
from US $23.29 |
||
|
7
|
7
12748-85FA0-000 WASHER,SPROCKET IDLER NO.1H27A; 2006-06-01~ |
12748-85FA0-000 |
from US $9.81 |
||
|
8
|
8
07130-1035A-000 BoltH27A; 2006-06-01~ |
07130-1035A-000 |
US $21.70 |
||
|
9
|
9
12750-66J00-000
Sprocket,idler no.2
H27A; 2006-06-01~ |
12750-66J00-000 |
— | ||
| replacement | |||||
|
9
|
9
12750-66J01-000 SPROCKET,IDLER NO.2H27A; 2006-06-01~ |
12750-66J01-000 |
from US $98.99 |
||
|
10
|
10
12752-85FA0-000 SHAFT,SPROCKET IDLER NO.2H27A; 2006-06-01~ |
12752-85FA0-000 |
from US $47.16 |
||
|
11
|
11
12753-85FA0-000 STUD BOLT,SPROCKET IDLER NO.2H27A; 2006-06-01~ |
12753-85FA0-000 |
from US $1.31 |
||
|
12
|
12
08316-1010A-000 NUTNut, kick starter H27A; 2006-06-01~ |
08316-1010A-000 |
from US $0.76 |
||
|
13
|
13
12761-66J00-000 CHAIN,TIMING 1STH27A; 2006-06-01~ |
12761-66J00-000 |
from US $78.12 |
||
|
14
|
14
12771-66J00-000 GUIDE,TIMING CHAIN NO.1H27A; 2006-06-01~ |
12771-66J00-000 |
from US $12.14 |
||
|
15
|
15
12811-66J00-000 Tensioner, Timing ChainH27A; 2006-06-01~ |
12811-66J00-000 |
from US $71.76 |
||
|
16
|
16
12812-73G10-000 SPACER,TIMING CHAIN TENSIONERSpacer, timing chain tensioner H27A; 2006-06-01~ |
12812-73G10-000 |
from US $4.48 |
||
|
17
|
17
12816-59J00-000 BOLT,TENSIONER TIMING STUDH27A; 2006-06-01~ |
12816-59J00-000 |
from US $1.67 |
||
|
18
|
18
08316-1008A-000 NUTNut, idle gear shaft H27A; 2006-06-01~ |
08316-1008A-000 |
from US $0.76 |
||
|
19
|
19
12772-66J00-000 GUIDE,TIMING CHAIN NO.2H27A; 2006-06-01~ |
12772-66J00-000 |
from US $9.83 |
||
|
20
|
20
12762-85FA0-000 CHAIN,TIMING 2ND,RHH27A; 2006-06-01~ |
12762-85FA0-000 |
from US $59.51 |
||
|
21
|
21
12773-85FA1-000 GUIDE,TIMING CHAIN N0.3H27A; 2006-06-01~ |
12773-85FA1-000 |
from US $38.77 |
||
|
22
|
22
01550-0612A-000 BoltH27A; 2006-06-01~ |
01550-0612A-000 |
from US $0.76 |
||
|
23
|
23
12763-66J00-000 CHAIN,TIMING 2ND,LHH27A; 2006-06-01~ |
12763-66J00-000 |
from US $44.21 |
||
|
24
|
24
12774-85FA1-000 GUIDE,TIMING CHAIN,NO.4H27A; 2006-06-01~ |
12774-85FA1-000 |
from US $16.67 |
||
|
25
|
25
01550-0616A-000 BoltH27A; 2006-06-01~ |
01550-0616A-000 |
from US $0.76 |
||
|
26
|
26
12775-85FA0-000 GUIDE,TIMING CHAIN,NO.5H27A; 2006-06-01~ |
12775-85FA0-000 |
from US $43.72 |
||
|
27
|
27
12776-85FA0-000 BOLT,TIMING CHAIN GUIDEBolt, timing chain guide H27A; 2006-06-01~ |
12776-85FA0-000 |
from US $3.04 |
||
|
28
|
28
12780-85FA0-000 JET,TIMING CHAINH27A; 2006-06-01~ |
12780-85FA0-000 |
from US $8.53 |
||
|
29
|
29
01550-0612A-000 BoltH27A; 2006-06-01~ |
01550-0612A-000 |
from US $0.76 |
||
|
30
|
30
12831-66J00-000 ADJUSTER ASSY,TENSIONER NO.1H27A; 2006-06-01~ |
12831-66J00-000 |
from US $117.23 |
||
|
31
|
31
01550-0620A-000 BoltH27A; 2006-06-01~ |
01550-0620A-000 |
from US $0.76 |
||
|
32
|
32
12832-85FA0-000 ADJUSTER ASSY,TENSIONER NO.2H27A; 2006-06-01~ |
12832-85FA0-000 |
from US $115.34 |
||
|
33
|
33
01550-0620A-000 BoltH27A; 2006-06-01~ |
01550-0620A-000 |
from US $0.76 |
||
|
34
|
34
12833-85FA3-000 ADJUSTER ASSY,TENSIONER NO.3H27A; 2006-06-01~ |
12833-85FA3-000 |
from US $110.30 |
||
|
35
|
35
01421-1035A-000 BOLT,STUDH27A; 2006-06-01~ |
01421-1035A-000 |
from US $4.13 |
||
|
36
|
36
08316-1010A-000 NUTNut, kick starter H27A; 2006-06-01~ |
08316-1010A-000 |
from US $0.76 |
||
|
37
|
37
07120-0640A-000 BoltH27A; 2006-06-01~ |
07120-0640A-000 |
from US $1.08 |
||
|
38
|
38
11381-66J01-000 COVER,TIMING CHAINH27A; 2006-06-01~ |
11381-66J01-000 |
US $393.76 |
||
|
39
|
39
09206-08001-000 PIN(8X11)H27A; 2006-06-01~ |
09206-08001-000 |
from US $1.53 |
||
|
40
|
40
01550-0630A-000 BoltH27A; 2006-06-01~ |
01550-0630A-000 |
from US $1.12 |
||
|
41
|
41
12631-66J00-000 Sprocket, Crankshaft TimingH27A; 2006-06-01~ |
12631-66J00-000 |
from US $43.06 |
||
|
42
|
42
11215-67D00-000 PLUG,CYLINDERH27A; 2006-06-01~2006-09-01 |
11215-67D00-000 |
US $9.36 |
||
|
43
|
43
09103-06285-000 BOLT(6X12)Bolt (6x12) H27A; 2006-06-01~2006-09-01 |
09103-06285-000 |
from US $0.88 |
||
