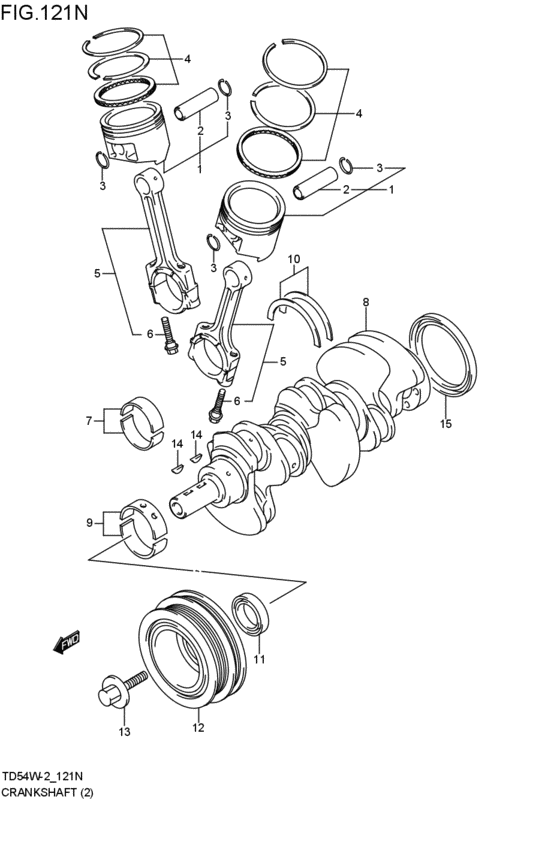

crankshaft (H27A; 2006-06-01~) Diagram Suzuki ESCUDO
- Year
- 2006 - 2011
- Sales region
- Japan
- Engine
- H27A
- transmission
- AT
- Number of doors
- 5DR
- grade
- XS
- number of the gears
- 5AT
- air bag
- 6AB
- esp
- ESP
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
12100-66810-0A0
Piston set,std,mark 1
マーク 1; H27A; 2006-06-01~ |
12100-66810-0A0 |
— | ||
| replacement | |||||
|
1
|
1
12100-66811-0A0 PISTON SET,STD MARK 1マーク 1; H27A; 2006-06-01~ |
12100-66811-0A0 |
from US $96.42 |
||
|
1
|
1
12100-66810-0B0
ピストンセット,STD,マーク 2
マーク 2; H27A; 2006-06-01~ |
12100-66810-0B0 |
— | ||
| replacement | |||||
|
1
|
1
12100-66811-0B0 PISTON SET,STD MARK 2マーク 2; H27A; 2006-06-01~ |
12100-66811-0B0 |
from US $73.22 |
||
|
2
|
2
12151-86FA0-000 PIN,PISTONH27A; 2006-06-01~ |
12151-86FA0-000 |
from US $8.71 |
||
|
3
|
3
09381-21002-000 RING,SNAPH27A; 2006-06-01~ |
09381-21002-000 |
from US $0.93 |
||
|
4
|
4
12140-52D00-000 RING SET,PISTON STDH27A; 2006-06-01~ |
12140-52D00-000 |
from US $75.06 |
||
|
5
|
5
12160-59J00-000 Connrod assyH27A; 2006-06-01~ |
12160-59J00-000 |
US $123.53 |
||
| replacement | |||||
|
5
|
5
12160-59J10-000 CONNROD ASSYH27A; 2006-06-01~ |
12160-59J10-000 |
from US $108.19 |
||
|
6
|
6
12163-59J00-000 BOLT,CONNRODH27A; 2006-06-01~ |
12163-59J00-000 |
from US $1.76 |
||
|
7
|
7
12100-85824-0A0 BEARING SET,CONNROD, GREENGreen カラー:グリーン; H27A; 2006-06-01~ |
12100-85824-0A0 |
from US $23.40 |
||
|
7
|
7
12100-85824-0B0 BEARING SET,CONNROD, BLACKBlack カラー:ブラック; H27A; 2006-06-01~ |
12100-85824-0B0 |
from US $20.39 |
||
|
7
|
7
12100-85824-0C0 BEARING SET,CONNROD, NO COLORColor: None カラー:ナシ; H27A; 2006-06-01~ |
12100-85824-0C0 |
from US $21.26 |
||
|
7
|
7
12100-85824-0D0 BEARING SET,CONNROD, YELLOWYellow カラー:イエロー; H27A; 2006-06-01~ |
12100-85824-0D0 |
from US $20.70 |
||
|
7
|
7
12100-85824-0E0 BEARING SET,CONNROD, BLUEBlue カラー:ブルー; H27A; 2006-06-01~ |
12100-85824-0E0 |
from US $28.33 |
||
|
7
|
7
12100-85824-025 BEARING SET,CONNROD US:0.25Red カラー:レッド; H27A; 2006-06-01~ |
12100-85824-025 |
from US $19.32 |
||
|
8
|
8
12221-86FA1-000 CRANKSHAFTH27A; 2006-06-01~ |
12221-86FA1-000 |
from US $998.73 |
||
|
9
|
9
12340-86FB0-B0C BEARING SET,CRANKSHAFT STDBlack / None カラー:ブラック/ナシ; H27A; 2006-06-01~ |
12340-86FB0-B0C |
US $26.86 |
||
|
9
|
9
12340-86FB0-C0D BEARING SET,CRANKSHAFT STDNone / yellow カラー:ナシ/イエロー; H27A; 2006-06-01~ |
12340-86FB0-C0D |
US $32.38 |
||
|
9
|
9
12340-86FB0-D0E BEARING SET,CRANKSHAFT STDYellow / Blue カラー:イエロー/ブルー; H27A; 2006-06-01~ |
12340-86FB0-D0E |
US $32.38 |
||
|
9
|
9
12340-86FB0-E0F BEARING SET,CRANKSHAFT STDBlue / Pink カラー:ブルー/ピンク; H27A; 2006-06-01~ |
12340-86FB0-E0F |
US $32.38 |
||
|
9
|
9
12340-86FB0-F0G BEARING SET,CRANKSHAFT STDPink / Brown カラー:ピンク/ブラウン; H27A; 2006-06-01~ |
12340-86FB0-F0G |
US $26.86 |
||
|
9
|
9
12340-86FB0-0C0 BEARING SET,CRANKSHAFT STDColor: None カラー:ナシ; H27A; 2006-06-01~ |
12340-86FB0-0C0 |
from US $38.66 |
||
|
9
|
9
12340-86FB0-0D0 BEARING SET,CRANKSHAFT STDYellow カラー:イエロー; H27A; 2006-06-01~ |
12340-86FB0-0D0 |
from US $20.72 |
||
|
9
|
9
12340-86FB0-0E0 BEARING SET,CRANKSHAFT STDBlue カラー:ブルー; H27A; 2006-06-01~ |
12340-86FB0-0E0 |
US $32.38 |
||
|
9
|
9
12340-86FB0-0F0 BEARING SET,CRANKSHAFT STDPink カラー:ピンク; H27A; 2006-06-01~ |
12340-86FB0-0F0 |
US $32.38 |
||
|
9
|
9
12300-86820-0BA BEARING SET,CRANKSHAFT USRed / Black カラー:レッド/ブラック; H27A; 2006-06-01~ |
12300-86820-0BA |
from US $22.14 |
||
|
9
|
9
12300-86820-0CA BEARING SET,CRANKSHAFT USRed カラー:レッド; H27A; 2006-06-01~ |
12300-86820-0CA |
from US $20 |
||
|
9
|
9
12300-86820-0DA BEARING SET,CRANKSHAFT USRed / Yellow カラー:レッド/イエロー; H27A; 2006-06-01~ |
12300-86820-0DA |
from US $21.04 |
||
|
9
|
9
12300-86820-0EA BEARING SET,CRANKSHAFT USRed/ Blue カラー:レッド/ブルー; H27A; 2006-06-01~ |
12300-86820-0EA |
US $26.86 |
||
|
9
|
9
12300-86820-0FA BEARING SET,CRANKSHAFT USRed / Pink カラー:レッド/ピンク; H27A; 2006-06-01~ |
12300-86820-0FA |
US $32.38 |
||
|
10
|
10
12300-85830-000 BEARING SET,CRANK THRUSTH27A; 2006-06-01~ |
12300-85830-000 |
from US $19.33 |
||
|
10
|
10
12300-85830-012 BEARING SET,CRANK THRUST OSBearing set, crank thrust (os:0.12) H27A; 2006-06-01~ |
12300-85830-012 |
from US $20.81 |
||
|
11
|
11
09283-45012-000 SEAL,OIL(45X63X7.5)H27A; 2006-06-01~ |
09283-45012-000 |
from US $18.52 |
||
|
12
|
12
12610-85FA1-000 PULLEY,CRANKSHAFTH27A; 2006-06-01~ |
12610-85FA1-000 |
from US $318.89 |
||
|
13
|
13
12615-85FA0-000 BOLT,CRANK PULLEYH27A; 2006-06-01~ |
12615-85FA0-000 |
from US $16.20 |
||
|
14
|
14
08341-31059-000 KEYKey H27A; 2006-06-01~ |
08341-31059-000 |
from US $1.60 |
||
|
15
|
15
09283-98002-000 SEAL,OIL(98X116X10)H27A; 2006-06-01~ |
09283-98002-000 |
from US $46.17 |
||
