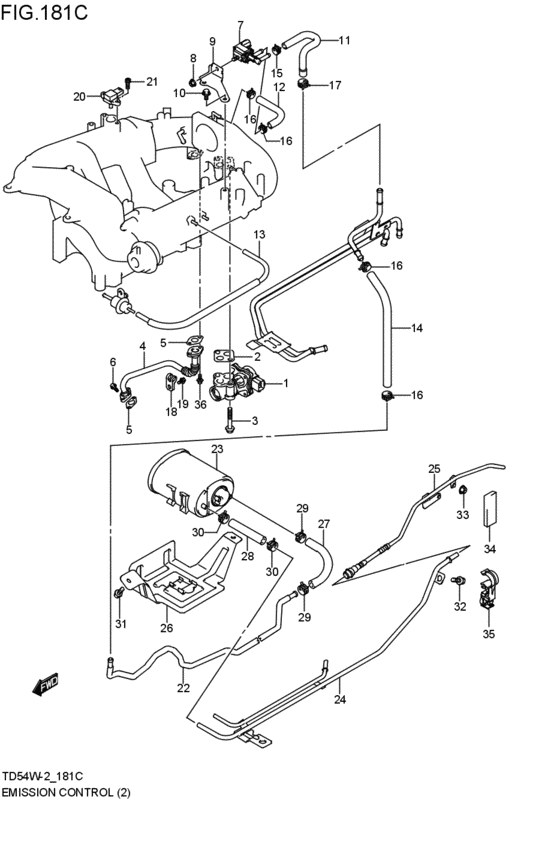

emission control (H27A; 2006-06-01~) Diagram Suzuki ESCUDO
- Year
- 2006 - 2011
- Sales region
- Japan
- Engine
- H27A
- transmission
- AT
- Number of doors
- 5DR
- grade
- XS
- number of the gears
- 5AT
- air bag
- 6AB
- esp
- ESP
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
18111-77E02-000 VALVE,EGRH27A; 2006-06-01~ |
18111-77E02-000 |
from US $309.11 |
||
|
2
|
2
18529-77E01-000 GASKET,EGR VALVEH27A; 2006-06-01~ |
18529-77E01-000 |
US $2.89 |
||
|
3
|
3
01550-0850A-000 BoltH27A; 2006-06-01~ |
01550-0850A-000 |
from US $5 |
||
|
4
|
4
18530-67D10-000 PIPE,EGRH27A; 2006-06-01~ |
18530-67D10-000 |
from US $147.98 |
||
|
5
|
5
18533-77E00-000 GASKET,EGR PIPEH27A; 2006-06-01~ |
18533-77E00-000 |
from US $2.28 |
||
|
6
|
6
01550-0616A-000 BoltH27A; 2006-06-01~2006-09-01 |
01550-0616A-000 |
from US $0.76 |
||
|
7
|
7
18117-65J00-000 VALVE,EVAP CSTR PURGEH27A; 2006-06-01~ |
18117-65J00-000 |
from US $140.81 |
||
|
8
|
8
08316-1006A-000 NUTH27A; 2006-06-01~ |
08316-1006A-000 |
from US $0.80 |
||
|
9
|
9
18417-66J00-000
BRACKET,PURGE VALVE
H27A; 2006-06-01~ |
18417-66J00-000 |
— | ||
|
10
|
10
01550-0612A-000 BoltH27A; 2006-06-01~ |
01550-0612A-000 |
from US $0.76 |
||
|
11
|
11
18562-66J00-000 HOSE,PURGE PIPE TO VSVパイプ ツー バルブ; H27A; 2006-06-01~ |
18562-66J00-000 |
US $24.80 |
||
|
12
|
12
09355-54128-600
Hose,5.4x12.2x600
L:600>220; H27A; 2006-06-01~ |
09355-54128-600 |
— | ||
| replacement | |||||
|
12
|
12
09355-56128-600 HOSE(5.6X12.4X600)L:600>220; H27A; 2006-06-01~ |
09355-56128-600 |
from US $8.46 |
||
|
13
|
13
18419-52D00-000 HOSE,VAC RGLTR TO PIPEレギュレータ ツー パイプ; H27A; 2006-06-01~ |
18419-52D00-000 |
US $20 |
||
|
14
|
14
09355-70129-600 HOSE(7X12X600)Hose, fuel (pump to separator) L:600>240; H27A; 2006-06-01~ |
09355-70129-600 |
from US $22.31 |
||
|
15
|
15
09401-11419-000 CLIPH27A; 2006-06-01~ |
09401-11419-000 |
from US $1.92 |
||
|
16
|
16
09401-11419-000 CLIPH27A; 2006-06-01~ |
09401-11419-000 |
from US $1.92 |
||
|
17
|
17
09401-12404-000 CLIPClip H27A; 2006-06-01~ |
09401-12404-000 |
from US $1.52 |
||
|
18
|
18
18536-77EA0-000 CLAMP,EGR PIPEH27A; 2006-06-01~ |
18536-77EA0-000 |
US $3.61 |
||
|
19
|
19
01550-0612A-000 BoltH27A; 2006-06-01~ |
01550-0612A-000 |
from US $0.76 |
||
|
20
|
20
18590-68H00-000 SENSOR,PRESSURESensor, pressure H27A; 2006-06-01~ |
18590-68H00-000 |
from US $207.11 |
||
|
21
|
21
07130-0516A-000 BoltH27A; 2006-06-01~ |
07130-0516A-000 |
from US $3.67 |
||
|
22
|
22
18351-65J03-000 PIPE,PURGEH27A; 2006-06-01~ |
18351-65J03-000 |
US $32.20 |
||
|
23
|
23
18560-76A31-000 CANISTERH27A; 2006-06-01~ |
18560-76A31-000 |
US $96 |
||
|
24
|
24
18566-65J01-000 PIPE,CSTR AIR SUCTIONH27A; 2006-06-01~ |
18566-65J01-000 |
US $49.31 |
||
|
25
|
25
18569-65J00-000
パイプ,キャニスタエアサクション
H27A; 2006-09-01~2006-10-01 |
18569-65J00-000 |
— | ||
| replacements | |||||
|
25
|
25
18565-65J20-000 CLAMP,SUCTION PIPEH27A; 2006-09-01~2006-10-01 |
18565-65J20-000 |
US $1.91 |
||
|
25
|
25
18569-78K10-000 PIPE,CSTR AIR SUCTIONH27A; 2006-09-01~2006-10-01 |
18569-78K10-000 |
US $41.95 |
||
|
25
|
25
18569-65J01-000
Pipe,cstr air suction
H27A; 2006-10-01~ |
18569-65J01-000 |
— | ||
| replacement | |||||
|
25
|
25
18569-78K10-000 PIPE,CSTR AIR SUCTIONH27A; 2006-10-01~ |
18569-78K10-000 |
US $41.95 |
||
|
26
|
26
18570-65J00-000 BRACKET,CANISTERH27A; 2006-06-01~ |
18570-65J00-000 |
US $48.80 |
||
|
27
|
27
09355-54115-600 HOSE(5.4X11.4X600)Hose, vacuum L:600>170; H27A; 2006-06-01~2006-12-01 |
09355-54115-600 |
from US $7.20 |
||
|
27
|
27
09355-54128-600
Hose,5.4x12.2x600
L:600>170; H27A; 2007-01-01~ |
09355-54128-600 |
— | ||
| replacement | |||||
|
27
|
27
09355-56128-600 HOSE(5.6X12.4X600)L:600>170; H27A; 2007-01-01~ |
09355-56128-600 |
from US $8.46 |
||
|
28
|
28
09355-70125-600 HOSE(7X12X600)Hose, fuel (pump to separator) L:600>140; H27A; 2006-06-01~ |
09355-70125-600 |
from US $6.54 |
||
| replacement | |||||
|
28
|
28
44421-12FR0-000 HOSEL:600>140; H27A; 2006-06-01~ |
44421-12FR0-000 |
from US $17.46 |
||
|
29
|
29
09401-11419-000 CLIPH27A; 2006-06-01~ |
09401-11419-000 |
from US $1.92 |
||
|
30
|
30
09401-11415-000 CLIPH27A; 2006-06-01~ |
09401-11415-000 |
from US $1.06 |
||
|
31
|
31
01550-0816A-000 BoltBolt, rear H27A; 2006-06-01~ |
01550-0816A-000 |
from US $0.91 |
||
|
32
|
32
01550-0816A-000 BoltBolt, rear H27A; 2006-06-01~ |
01550-0816A-000 |
from US $0.91 |
||
|
33
|
33
08316-1006A-000 NUTH27A; 2006-09-01~2006-10-01 |
08316-1006A-000 |
from US $0.80 |
||
|
34
|
34
18568-65J20-000 PACKING,EVAP SUCTION PIPEH27A; 2006-06-01~ |
18568-65J20-000 |
US $6.62 |
||
|
35
|
35
18565-65J20-000 CLAMP,SUCTION PIPEH27A; 2006-10-01~ |
18565-65J20-000 |
US $1.91 |
||
|
36
|
36
01550-0620A-000 BoltH27A; 2006-10-01~ |
01550-0620A-000 |
from US $0.76 |
||
