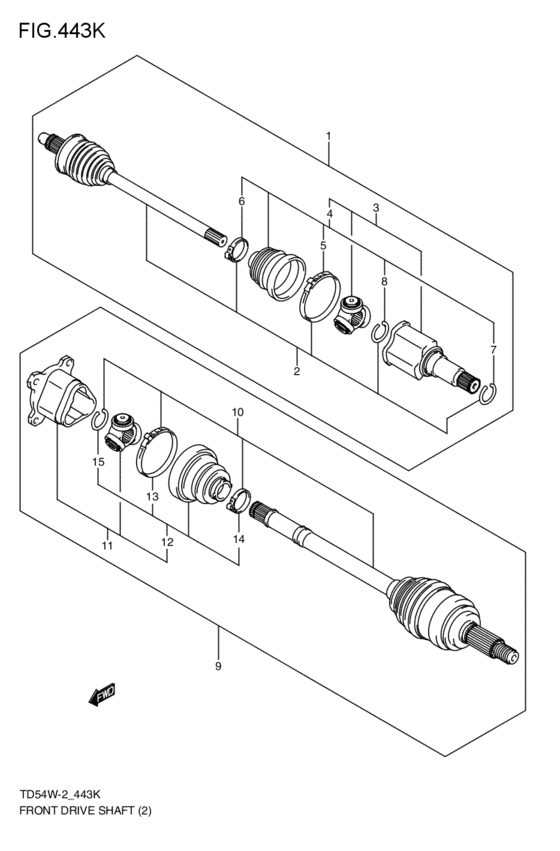

front-drive shaft (H27A; 2006-06-01~2007-01-01) Diagram Suzuki ESCUDO
- Year
- 2006 - 2011
- Sales region
- Japan
- Engine
- H27A
- transmission
- AT
- Number of doors
- 5DR
- grade
- XS
- number of the gears
- 5AT
- air bag
- 6AB
- esp
- ESP
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
44101-65J00-000
SHAFT ASSYFRONT DRIVER
H27A; 2006-06-01~2007-01-01 |
44101-65J00-000 |
— | ||
| replacement | |||||
|
1
|
1
44101-78K00-000 SHAFT ASSY,FRONT DRIVE, RHH27A; 2006-06-01~2007-01-01 |
44101-78K00-000 |
from US $867.08 |
||
|
2
|
2
44117-65J00-000
JOINT ASSY,WHL SIDE,R
H27A; 2006-06-01~2007-01-01 |
44117-65J00-000 |
— | ||
| replacement | |||||
|
2
|
2
44117-65J02-000 JOINT ASSY,WHL SIDE,RH27A; 2006-06-01~2007-01-01 |
44117-65J02-000 |
from US $390.38 |
||
|
3
|
3
44114-65J00-000
JOINT ASSYDIFF SIDE RH
H27A; 2006-06-01~2007-01-01 |
44114-65J00-000 |
— | ||
| replacement | |||||
|
3
|
3
44114-65J02-000 JOINT ASSY,DIFF SIDE,RH27A; 2006-06-01~2007-01-01 |
44114-65J02-000 |
from US $457.60 |
||
|
4
|
4
44125-65J00-000
Boot set,diff side
H27A; 2006-06-01~2007-01-01 |
44125-65J00-000 |
— | ||
| replacement | |||||
|
4
|
4
44125-65J02-000 BOOT SET,DIFF SIDEH27A; 2006-06-01~2007-01-01 |
44125-65J02-000 |
from US $143.15 |
||
|
5
|
5
44123-59J10-000 CLAMP,BOOTH27A; 2006-06-01~2007-01-01 |
44123-59J10-000 |
from US $9.86 |
||
|
6
|
6
44124-59J10-000 CLAMP,BOOT SMALLH27A; 2006-06-01~2007-01-01 |
44124-59J10-000 |
from US $5.81 |
||
|
7
|
7
44177-59J10-000 CIRCLIPH27A; 2006-06-01~2007-01-01 |
44177-59J10-000 |
from US $3.72 |
||
|
8
|
8
44111-59J10-000 CIRCLIPH27A; 2006-06-01~2007-01-01 |
44111-59J10-000 |
US $3.72 |
||
|
9
|
9
44102-65J00-000
SHAFT ASSYFRONT DRIVEL
H27A; 2006-06-01~2007-01-01 |
44102-65J00-000 |
— | ||
| replacement | |||||
|
9
|
9
44102-78K00-000 SHAFT ASSY,FRONT DRIVE, LHH27A; 2006-06-01~2007-01-01 |
44102-78K00-000 |
from US $865.69 |
||
|
10
|
10
44118-65J00-000
JOINT ASSY,WHL SIDE,L
H27A; 2006-06-01~2007-01-01 |
44118-65J00-000 |
— | ||
| replacement | |||||
|
10
|
10
44118-65J01-000 JOINT ASSY,WHL SIDE,LH27A; 2006-06-01~2007-01-01 |
44118-65J01-000 |
from US $491.58 |
||
|
11
|
11
44115-65J00-000
Joint assy,diff side lh
H27A; 2006-06-01~2007-01-01 |
44115-65J00-000 |
— | ||
| replacement | |||||
|
11
|
11
44115-65J01-000 JOINT ASSY,DIFF SIDE,LH27A; 2006-06-01~2007-01-01 |
44115-65J01-000 |
US $457.60 |
||
|
12
|
12
44126-65J00-000
Boot set,diff side
H27A; 2006-06-01~2007-01-01 |
44126-65J00-000 |
— | ||
| replacement | |||||
|
12
|
12
44126-65J01-000 BOOT SET,DIFF SIDEH27A; 2006-06-01~2007-01-01 |
44126-65J01-000 |
from US $143.15 |
||
|
13
|
13
44123-65J00-000
CLAMP,BOOT
H27A; 2006-06-01~2007-01-01 |
44123-65J00-000 |
— | ||
|
14
|
14
44124-65J00-000
CLAMP,BOOT
H27A; 2006-06-01~2007-01-01 |
44124-65J00-000 |
— | ||
|
15
|
15
44111-65J00-000 CIRCLIPH27A; 2006-06-01~2007-01-01 |
44111-65J00-000 |
from US $5.29 |
||
