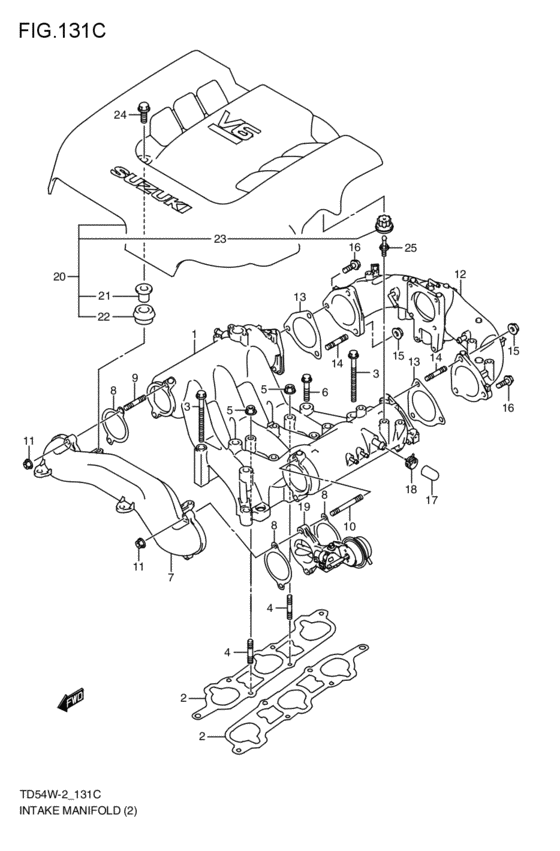

intake manifold (H27A; 2006-06-01~) Diagram Suzuki ESCUDO
- Year
- 2006 - 2011
- Sales region
- Japan
- Engine
- H27A
- transmission
- AT
- Number of doors
- 5DR
- grade
- XS
- number of the gears
- 5AT
- air bag
- 6AB
- esp
- ESP
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
13110-66J00-000
MANIFOLD,INTK
H27A; 2006-06-01~ |
13110-66J00-000 |
— | ||
|
2
|
2
13119-77E00-000 GASKET,INTK MANFH27A; 2006-06-01~ |
13119-77E00-000 |
from US $13.43 |
||
|
3
|
3
09103-08230-000 BOLT(8X100)Bolt (8x100) H27A; 2006-06-01~ |
09103-08230-000 |
from US $1.24 |
||
|
4
|
4
01421-0885A-000 BOLT,STUDH27A; 2006-06-01~ |
01421-0885A-000 |
from US $6.46 |
||
|
5
|
5
08316-1008A-000 NUTNut, idle gear shaft H27A; 2006-06-01~ |
08316-1008A-000 |
from US $0.76 |
||
|
6
|
6
01550-0845A-000 BoltBolt, oil pump (s) H27A; 2006-06-01~ |
01550-0845A-000 |
US $5.03 |
||
|
7
|
7
13131-67D10-000 PIPE,SURGE TANKH27A; 2006-06-01~ |
13131-67D10-000 |
from US $60.64 |
||
|
8
|
8
13139-67D00-000 GASKET,SURGE TANK PIPEH27A; 2006-06-01~ |
13139-67D00-000 |
from US $2.72 |
||
|
9
|
9
01421-0825A-000 BOLT,STUDH27A; 2006-06-01~ |
01421-0825A-000 |
from US $1.28 |
||
|
10
|
10
01421-0840A-000 BOLT,STUDStud bolt (8x40) H27A; 2006-06-01~ |
01421-0840A-000 |
from US $4.13 |
||
|
11
|
11
08316-1008A-000 NUTNut, idle gear shaft H27A; 2006-06-01~ |
08316-1008A-000 |
from US $0.76 |
||
|
12
|
12
13140-66J00-000 COLLECTOR,INTAKEH27A; 2006-06-01~ |
13140-66J00-000 |
from US $205.54 |
||
|
13
|
13
13122-67D00-000 GASKET,COLLECTORH27A; 2006-06-01~ |
13122-67D00-000 |
from US $6.14 |
||
|
14
|
14
01421-0825A-000 BOLT,STUDH27A; 2006-06-01~ |
01421-0825A-000 |
from US $1.28 |
||
|
15
|
15
08316-1008A-000 NUTNut, idle gear shaft H27A; 2006-06-01~ |
08316-1008A-000 |
from US $0.76 |
||
|
16
|
16
01550-0825A-000 BoltH27A; 2006-06-01~ |
01550-0825A-000 |
from US $0.47 |
||
|
17
|
17
09251-09003-000 PLUGH27A; 2006-06-01~ |
09251-09003-000 |
from US $1.44 |
||
|
18
|
18
09401-13414-000 CLIPClip, pcv hose H27A; 2006-06-01~ |
09401-13414-000 |
from US $1.60 |
||
|
19
|
19
13460-52D00-000 VALVE,INTAKE CONTROLH27A; 2006-06-01~ |
13460-52D00-000 |
from US $81 |
||
|
20
|
20
13170-66J00-000 COVER,SURGE TANKH27A; 2006-06-01~ |
13170-66J00-000 |
from US $74.34 |
||
|
21
|
21
13172-54G10-000 SPACERH27A; 2006-06-01~ |
13172-54G10-000 |
US $1.80 |
||
|
22
|
22
13173-54G10-000 CUSHIONH27A; 2006-06-01~ |
13173-54G10-000 |
from US $1.19 |
||
|
23
|
23
13175-67J00-000 BUSH,ENG COVERH27A; 2006-06-01~ |
13175-67J00-000 |
from US $5.36 |
||
|
24
|
24
13174-54G00-000 BOLT,ENG COVERH27A; 2006-06-01~ |
13174-54G00-000 |
from US $1.19 |
||
|
25
|
25
13176-67J00-000 BOLT,ENG COVERH27A; 2006-06-01~ |
13176-67J00-000 |
from US $4.42 |
