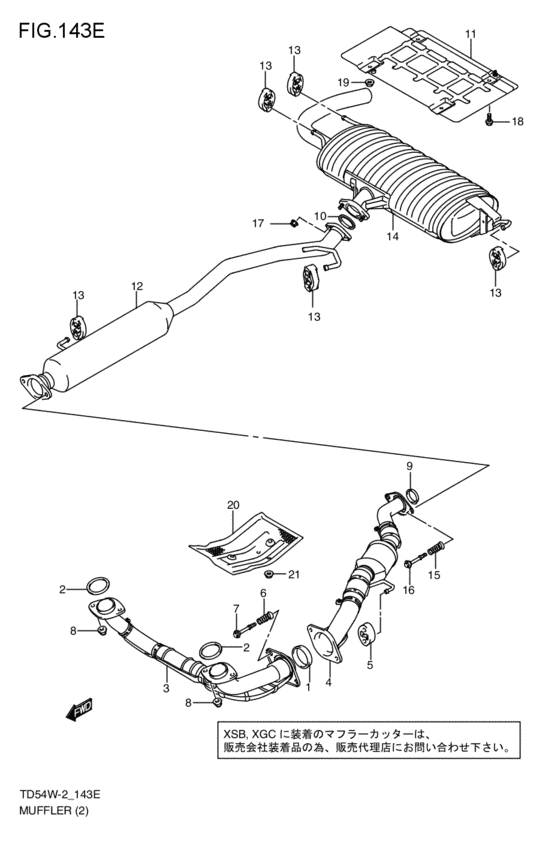

muffler (H27A; 2006-06-01~) Diagram Suzuki ESCUDO
- Year
- 2006 - 2011
- Sales region
- Japan
- Engine
- H27A
- transmission
- AT
- Number of doors
- 5DR
- grade
- XS
- number of the gears
- 5AT
- air bag
- 6AB
- esp
- ESP
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
14183-52D00-000 RING,SEAL EXH PIPEH27A; 2006-06-01~ |
14183-52D00-000 |
from US $15.57 |
||
|
2
|
2
14184-67D00-000 GASKET,MUFFLERH27A; 2006-06-01~ |
14184-67D00-000 |
from US $8.80 |
||
|
3
|
3
14190-66J00-000 PIPE,EXH NO.1H27A; 2006-06-01~ |
14190-66J00-000 |
from US $349.83 |
||
|
4
|
4
14250-66J12-000
パイプ,エキゾーストNO.2
H27A; 2006-06-01~ |
14250-66J12-000 |
— | ||
| replacement | |||||
|
4
|
4
14250-66J13-000 PIPE,EXH NO.2H27A; 2006-06-01~ |
14250-66J13-000 |
US $2,142 |
||
|
5
|
5
14281-65J11-000 MOUNTING,MUFH27A; 2006-06-01~ |
14281-65J11-000 |
from US $27.74 |
||
|
6
|
6
14492-67D00-000 SPRING,EXH PIPEH27A; 2006-06-01~ |
14492-67D00-000 |
from US $6.21 |
||
|
7
|
7
09119-10041-000 BOLT(10X65)H27A; 2006-06-01~ |
09119-10041-000 |
from US $6.14 |
||
|
8
|
8
09159-10098-000 NUTH27A; 2006-06-01~ |
09159-10098-000 |
from US $1.28 |
||
|
9
|
9
14183-52D00-000 RING,SEAL EXH PIPEH27A; 2006-06-01~ |
14183-52D00-000 |
from US $15.57 |
||
|
10
|
10
14184-67D00-000 GASKET,MUFFLERH27A; 2006-06-01~ |
14184-67D00-000 |
from US $8.80 |
||
|
11
|
11
14231-65J00-000 PANEL,HEAT PROTECTORH27A; 2006-06-01~ |
14231-65J00-000 |
from US $26.28 |
||
|
12
|
12
14260-66J11-000
パイプ,エキゾーストセンタ
H27A; 2006-06-01~ |
14260-66J11-000 |
— | ||
| replacement | |||||
|
12
|
12
14260-66J03-000 PIPE,EXH CENTERH27A; 2006-06-01~ |
14260-66J03-000 |
from US $200.72 |
||
|
13
|
13
14281-65J01-000 MOUNTING,MUFH27A; 2006-06-01~ |
14281-65J01-000 |
from US $11.39 |
||
|
14
|
14
14300-66J12-000
マフラ,エキゾースト
H27A; 2006-06-01~ |
14300-66J12-000 |
— | ||
| replacement | |||||
|
14
|
14
14300-66J02-000 MUFFLER,EXHH27A; 2006-06-01~ |
14300-66J02-000 |
from US $314.96 |
||
|
15
|
15
14492-67D00-000 SPRING,EXH PIPEH27A; 2006-06-01~ |
14492-67D00-000 |
from US $6.21 |
||
|
16
|
16
09119-10041-000 BOLT(10X65)H27A; 2006-06-01~ |
09119-10041-000 |
from US $6.14 |
||
|
17
|
17
09159-10049-000 NutH27A; 2006-06-01~ |
09159-10049-000 |
US $1.28 |
||
| replacement | |||||
|
17
|
17
09159-10102-000 NUTH27A; 2006-06-01~ |
09159-10102-000 |
from US $1.28 |
||
|
18
|
18
02162-0612A-000 SCREWBolt, bracket H27A; 2006-06-01~ |
02162-0612A-000 |
from US $0.79 |
||
|
19
|
19
08316-1006A-000 NUTH27A; 2006-06-01~ |
08316-1006A-000 |
from US $0.80 |
||
|
20
|
20
14231-65J11-000 PANEL,HEAT PROTECTORH27A; 2006-06-01~ |
14231-65J11-000 |
from US $43.20 |
||
|
21
|
21
08316-1006A-000 NUTH27A; 2006-06-01~ |
08316-1006A-000 |
from US $0.80 |
||
