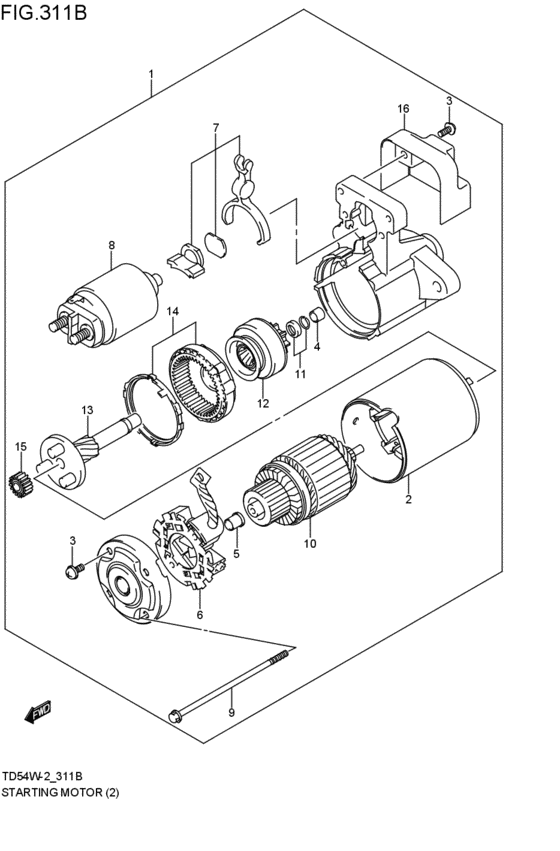

starting motor (H27A; 2006-06-01~) Diagram Suzuki ESCUDO
- Year
- 2006 - 2011
- Sales region
- Japan
- Engine
- H27A
- transmission
- AT
- Number of doors
- 5DR
- grade
- XS
- number of the gears
- 5AT
- air bag
- 6AB
- esp
- ESP
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
31100-65J30-000 MOTOR ASSY,STARTINGH27A; 2006-06-01~ |
31100-65J30-000 |
from US $650.30 |
||
| replacement | |||||
|
1
|
1
31100-65J30-REM
Motor assy,star
H27A; 2006-06-01~ |
31100-65J30-REM |
— | ||
|
2
|
2
31110-65J10-000 YOKE ASSYH27A; 2006-06-01~ |
31110-65J10-000 |
US $283.36 |
||
|
3
|
3
31136-79030-000 SCREW ASSYH27A; 2006-06-01~ |
31136-79030-000 |
US $3.38 |
||
| replacement | |||||
|
3
|
3
31175-79030-000 Screw SetH27A; 2006-06-01~ |
31175-79030-000 |
US $8.16 |
||
|
4
|
4
31152-63J00-000 BEARING,FRONTH27A; 2006-06-01~ |
31152-63J00-000 |
from US $10.56 |
||
|
5
|
5
31172-64B60-000 BEARING,REARH27A; 2006-06-01~ |
31172-64B60-000 |
from US $8.21 |
||
|
6
|
6
31173-65J30-000 BRUSH ASSY,STARTING MOTORH27A; 2006-06-01~ |
31173-65J30-000 |
from US $62.60 |
||
|
7
|
7
31191-63J00-000 LEVER ASSYH27A; 2006-06-01~ |
31191-63J00-000 |
from US $8.24 |
||
|
8
|
8
31220-65J30-000 SWITCH ASSYH27A; 2006-06-01~ |
31220-65J30-000 |
US $170.02 |
||
|
9
|
9
31261-67D10-000 BoltH27A; 2006-06-01~ |
31261-67D10-000 |
from US $4.14 |
||
|
10
|
10
31311-65J10-000 ARMATUREH27A; 2006-06-01~ |
31311-65J10-000 |
US $314.64 |
||
|
11
|
11
31313-86030-000 STOPPER SETH27A; 2006-06-01~ |
31313-86030-000 |
US $11.50 |
||
| replacement | |||||
|
11
|
11
31314-86030-000 Stopper SetH27A; 2006-06-01~ |
31314-86030-000 |
from US $11.50 |
||
|
12
|
12
31320-63J00-000 CLUTCH,OVER RUNNINGH27A; 2006-06-01~ |
31320-63J00-000 |
from US $89.60 |
||
|
13
|
13
31341-63J00-000 SHAFT ASSY,GEARH27A; 2006-06-01~ |
31341-63J00-000 |
US $203.20 |
||
|
14
|
14
31343-63J00-000 INTERNAL GEARH27A; 2006-06-01~ |
31343-63J00-000 |
from US $29.34 |
||
|
15
|
15
31344-63J00-000 GEAR ASSYH27A; 2006-06-01~ |
31344-63J00-000 |
from US $17.53 |
||
|
16
|
16
31385-67D10-000
HEAT PROTECTOR
H27A; 2006-06-01~ |
31385-67D10-000 |
— | ||
