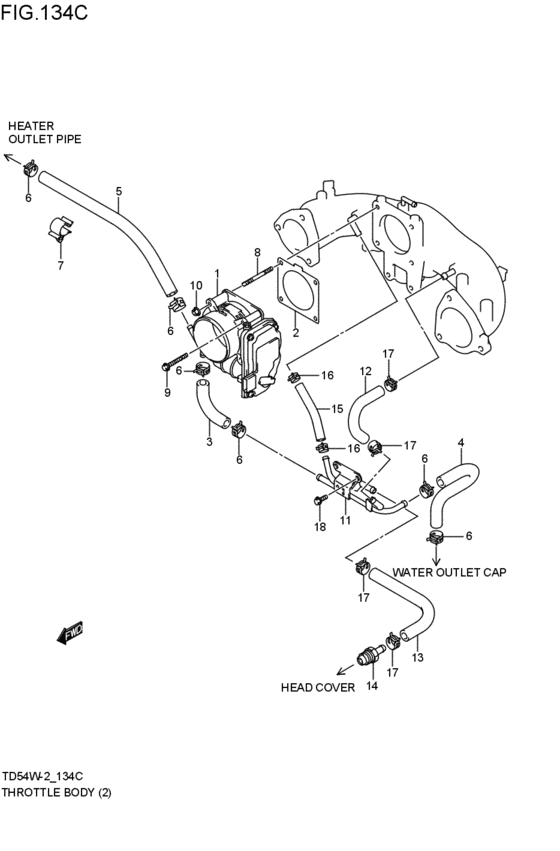

throttle body (H27A; 2006-06-01~) Diagram Suzuki ESCUDO
- Year
- 2006 - 2011
- Sales region
- Japan
- Engine
- H27A
- transmission
- AT
- Number of doors
- 5DR
- grade
- XS
- number of the gears
- 5AT
- air bag
- 6AB
- esp
- ESP
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
13400-66J00-000 BODY ASSY,THROTTLEH27A; 2006-06-01~ |
13400-66J00-000 |
from US $760.01 |
||
|
2
|
2
13421-66J00-000 GASKET,THROTTLE BODYH27A; 2006-06-01~ |
13421-66J00-000 |
from US $3.72 |
||
|
3
|
3
13491-66J00-000 HOSE,WTR TB INLETH27A; 2006-06-01~ |
13491-66J00-000 |
from US $6.08 |
||
|
4
|
4
13492-66J00-000 HOSE,WTR TB INLETH27A; 2006-06-01~ |
13492-66J00-000 |
from US $11 |
||
|
5
|
5
13493-66J00-000 HOSE,WTR TB OUTLETH27A; 2006-06-01~ |
13493-66J00-000 |
from US $14.99 |
||
|
6
|
6
09401-12410-000 CLIPClip, filter outlet H27A; 2006-06-01~ |
09401-12410-000 |
from US $1.35 |
||
|
7
|
7
09403-14315-000 CLAMPClamp, harness H27A; 2006-06-01~ |
09403-14315-000 |
US $17.70 |
||
|
8
|
8
01421-0645A-000 BOLT,STUDH27A; 2006-06-01~ |
01421-0645A-000 |
from US $1.12 |
||
|
9
|
9
01550-0650A-000 BoltBolt (6x50) H27A; 2006-06-01~ |
01550-0650A-000 |
from US $0.96 |
||
|
10
|
10
08316-1006A-000 NUTH27A; 2006-06-01~ |
08316-1006A-000 |
from US $0.80 |
||
|
11
|
11
11190-66J01-000 PIPE,PCVH27A; 2006-06-01~ |
11190-66J01-000 |
US $61.60 |
||
|
12
|
12
11192-66J00-000 HOSE,PCVH27A; 2006-06-01~ |
11192-66J00-000 |
US $15.84 |
||
|
13
|
13
11190-66810-000 HOSE SET,PCVH27A; 2006-06-01~ |
11190-66810-000 |
from US $11.43 |
||
|
14
|
14
18118-65D00-000 VALVE,PCVH27A; 2006-06-01~ |
18118-65D00-000 |
US $35.51 |
||
| replacement | |||||
|
14
|
14
18118-65D01-000 VALVEPCVH27A; 2006-06-01~ |
18118-65D01-000 |
from US $47.72 |
||
|
15
|
15
09355-70125-600 HOSE(7X12X600)Hose, fuel (pump to separator) L:600>90; H27A; 2006-06-01~ |
09355-70125-600 |
from US $6.54 |
||
| replacement | |||||
|
15
|
15
44421-12FR0-000 HOSEL:600>90; H27A; 2006-06-01~ |
44421-12FR0-000 |
from US $17.46 |
||
|
16
|
16
09401-11415-000 CLIPH27A; 2006-06-01~ |
09401-11415-000 |
from US $1.06 |
||
|
17
|
17
09401-13414-000 CLIPClip, pcv hose H27A; 2006-06-01~ |
09401-13414-000 |
from US $1.60 |
||
|
18
|
18
01550-0616A-000 BoltH27A; 2006-06-01~ |
01550-0616A-000 |
from US $0.76 |
||
