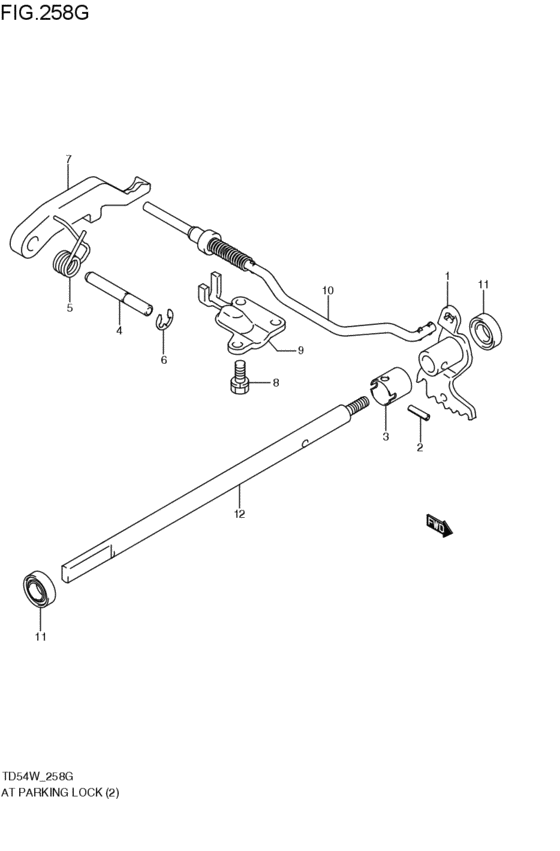

at - parking lock (AT:H27A; 2005-05-01~2006-06-01) Diagram Suzuki ESCUDO
- Year
- 2005 - 2011
- Sales region
- Japan
- Engine
- H27A
- transmission
- AT
- grade
- XS
- air bag
- 6AB
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
25951-54J10-000
LEVER,MANUAL DETENT
AT:H27A; 2005-05-01~2006-06-01 |
25951-54J10-000 |
— | ||
|
2
|
2
29898-57B00-000 PIN,SPRING MNL SHIFT LVRAT:H27A; 2005-05-01~2006-06-01 |
29898-57B00-000 |
US $6.37 |
||
|
3
|
3
25912-57B00-000 SPACER,MANUAL DETENT LEVERAT:H27A; 2005-05-01~2006-06-01 |
25912-57B00-000 |
US $8.98 |
||
|
4
|
4
25911-54J10-000
SHAFT,PARKING LOCK PAWL
AT:H27A; 2005-05-01~2006-06-01 |
25911-54J10-000 |
— | ||
|
5
|
5
25918-54J10-000 SPRING,PARKING LOCK RETURNAT:H27A; 2005-05-01~2006-06-01 |
25918-54J10-000 |
US $8.91 |
||
|
6
|
6
28948-57B00-000 RING,SNAP PARKING LOCK PAWLAT:H27A; 2005-05-01~2006-06-01 |
28948-57B00-000 |
US $8.39 |
||
|
7
|
7
25912-54J10-000 PAWL,PARKING LOCKAT:H27A; 2005-05-01~2006-06-01 |
25912-54J10-000 |
US $66.98 |
||
|
8
|
8
24746-53J10-000 BOLT,INPUT SPEED SENSORAT:H27A; 2005-05-01~2006-06-01 |
24746-53J10-000 |
US $2.74 |
||
|
9
|
9
25914-54J10-000
BRACKET,PARKING LOCK PAWL
AT:H27A; 2005-05-01~2006-06-01 |
25914-54J10-000 |
— | ||
|
10
|
10
25920-54J10-000
ROD,PARKING LOCK PAWL
AT:H27A; 2005-05-01~2006-06-01 |
25920-54J10-000 |
— | ||
|
11
|
11
25981-60G10-000 SEAL,OILAT:H27A; 2005-05-01~2006-06-01 |
25981-60G10-000 |
US $6.11 |
||
|
12
|
12
29541-64J10-000 SHAFT,MANUAL VALVE LEVERAT:H27A; 2005-05-01~2006-06-01 |
29541-64J10-000 |
US $31.65 |
