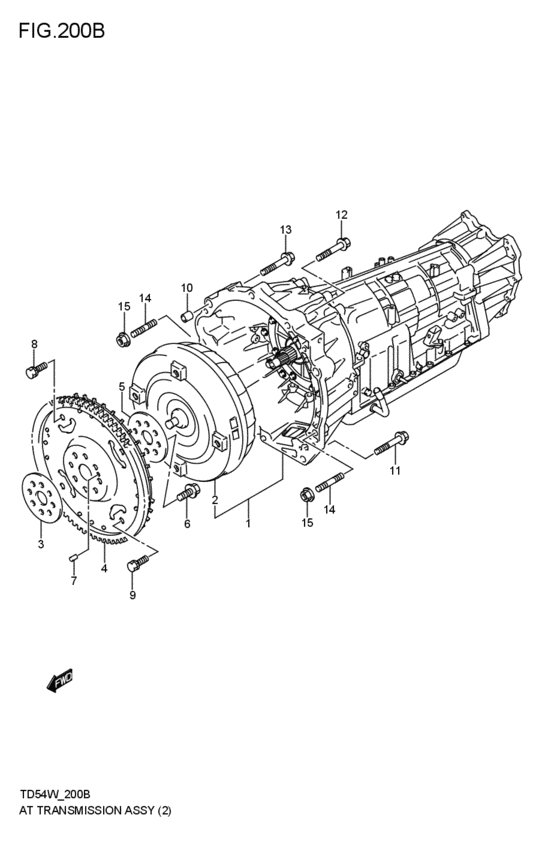

at - transmission assy (AT:H27A; 2005-05-01~2006-06-01) Diagram Suzuki ESCUDO
- Year
- 2005 - 2011
- Sales region
- Japan
- Engine
- H27A
- transmission
- AT
- grade
- XS
- air bag
- 6AB
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
21000-64J10-000
トランスミッションアッシ,オートマチック
AT:H27A; 2005-05-01~2006-06-01 |
21000-64J10-000 |
— | ||
| replacement | |||||
|
1
|
1
21000-64J11-000
Transmission assy,automatic
AT:H27A; 2005-05-01~2006-06-01 |
21000-64J11-000 |
— | ||
|
1
|
1
21000-64J10-111
トランスミッションアッシ,オートマチック(リビルト)
リビルト; AT:H27A; 2005-05-01~2006-06-01 |
21000-64J10-111 |
— | ||
| replacement | |||||
|
1
|
1
21000-64J11-111
New Genuine Part
リビルト; AT:H27A; 2005-05-01~2006-06-01 |
21000-64J11-111 |
— | ||
|
2
|
2
22700-54J10-000 CONVERTER,TORQUEAT:H27A; 2005-05-01~2006-06-01 |
22700-54J10-000 |
US $1,486.08 |
||
|
3
|
3
22611-85FA0-000 FLANGE,T/C DRIVE PLATE FRAT:H27A; 2005-05-01~2006-06-01 |
22611-85FA0-000 |
US $31.20 |
||
|
4
|
4
22620-64J10-000 PLATE,TC DRIVEAT:H27A; 2005-05-01~2006-06-01 |
22620-64J10-000 |
US $520 |
||
|
5
|
5
22631-85FA0-000 FLANGE,T/C DRIVE PLATE RRAT:H27A; 2005-05-01~2006-06-01 |
22631-85FA0-000 |
US $25.60 |
||
|
6
|
6
09103-10282-000 BOLT(10X18.5)AT:H27A; 2005-05-01~2006-06-01 |
09103-10282-000 |
US $2.08 |
||
|
7
|
7
04221-08129-000 PINPin, knock AT:H27A; 2005-05-01~2006-06-01 |
04221-08129-000 |
from US $0.91 |
||
|
8
|
8
09103-10286-000 BOLT(10X12)AT:H27A; 2005-05-01~2006-06-01 |
09103-10286-000 |
US $19.10 |
||
|
9
|
9
09103-10340-000 BOLT(10X12)AT:H27A; 2005-05-01~2006-06-01 |
09103-10340-000 |
US $15.10 |
||
|
10
|
10
09206-15001-000 PIN(12.4X15X17)AT:H27A; 2005-05-01~2006-06-01 |
09206-15001-000 |
US $1.92 |
||
|
11
|
11
01550-10503-000
Bolt
AT:H27A; 2005-05-01~2006-06-01 |
01550-10503-000 |
— | ||
| replacement | |||||
|
11
|
11
01550-1050B-000 BOLTAT:H27A; 2005-05-01~2006-06-01 |
01550-1050B-000 |
US $1.22 |
||
|
12
|
12
01550-12653-000
ボルト
AT:H27A; 2005-05-01~2006-06-01 |
01550-12653-000 |
— | ||
| replacement | |||||
|
12
|
12
01550-1265B-000 BoltAT:H27A; 2005-05-01~2006-06-01 |
01550-1265B-000 |
US $1.76 |
||
|
13
|
13
01550-12753-000
ボルト
AT:H27A; 2005-05-01~2006-06-01 |
01550-12753-000 |
— | ||
| replacement | |||||
|
13
|
13
01550-1275A-000 BOLTAT:H27A; 2005-05-01~2006-06-01 |
01550-1275A-000 |
US $1.92 |
||
|
14
|
14
09108-12007-000
Bolt,stud
AT:H27A; 2005-05-01~2006-06-01 |
09108-12007-000 |
— | ||
| replacement | |||||
|
14
|
14
09108-12012-000 BOLT,STUDAT:H27A; 2005-05-01~2006-06-01 |
09108-12012-000 |
US $2.72 |
||
|
15
|
15
08316-10123-000
Nut
AT:H27A; 2005-05-01~2006-06-01 |
08316-10123-000 |
— | ||
| replacement | |||||
|
15
|
15
08316-1012A-000 NUTAT:H27A; 2005-05-01~2006-06-01 |
08316-1012A-000 |
from US $0.96 |
||
