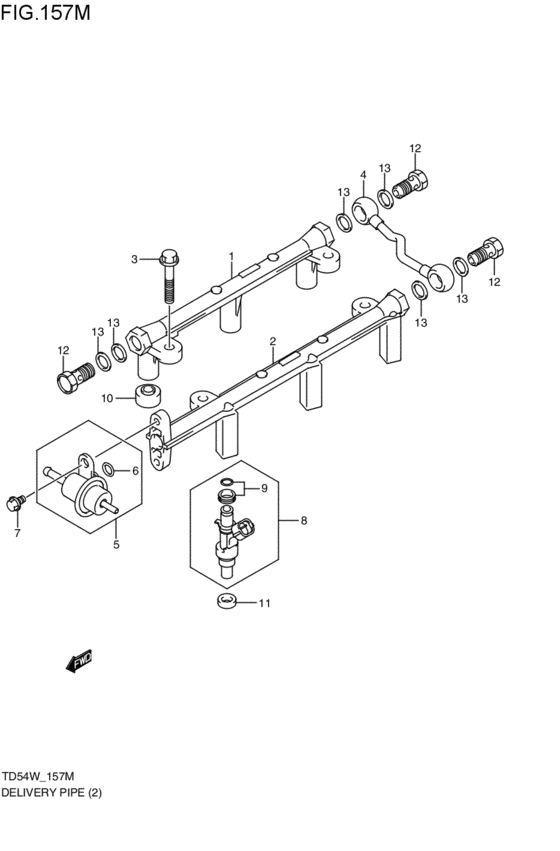

delivery pipe / fuel injector (H27A; 2005-05-01~2006-06-01) Diagram Suzuki ESCUDO
- Year
- 2005 - 2011
- Sales region
- Japan
- Engine
- H27A
- transmission
- AT
- grade
- XS
- air bag
- 6AB
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
15731-66J00-000
パイプ,デリバリ,ライト
H27A; 2005-05-01~2006-06-01 |
15731-66J00-000 |
— | ||
| replacement | |||||
|
1
|
1
15731-66J01-000 PIPE,DELIVERY,RH27A; 2005-05-01~2006-06-01 |
15731-66J01-000 |
US $107.82 |
||
|
2
|
2
15732-66J00-000
パイプ,デリバリ,レフト
H27A; 2005-05-01~2006-06-01 |
15732-66J00-000 |
— | ||
| replacement | |||||
|
2
|
2
15732-66J01-000 PIPE,DELIVERY,LH27A; 2005-05-01~2006-06-01 |
15732-66J01-000 |
US $116.29 |
||
|
3
|
3
01550-08403-000
Bolt
H27A; 2005-05-01~2006-06-01 |
01550-08403-000 |
— | ||
| replacements | |||||
|
3
|
3
01550-0840B-000 BoltH27A; 2005-05-01~2006-06-01 |
01550-0840B-000 |
from US $1.12 |
||
|
3
|
3
01550-0840A-000 BOLTH27A; 2005-05-01~2006-06-01 |
01550-0840A-000 |
from US $1.12 |
||
|
4
|
4
15740-77E00-000 PIPE,FUEL CONNECTH27A; 2005-05-01~2006-06-01 |
15740-77E00-000 |
US $37.54 |
||
|
5
|
5
15610-67D00-000 REGULATOR,FUEL PRESSUREH27A; 2005-05-01~2006-06-01 |
15610-67D00-000 |
US $125.60 |
||
|
6
|
6
15710-51E10-000 O-RINGH27A; 2005-05-01~2006-06-01 |
15710-51E10-000 |
US $1.92 |
||
|
7
|
7
09103-06168-000 BOLT(6X10)H27A; 2005-05-01~2005-08-01 |
09103-06168-000 |
US $1.60 |
||
|
7
|
7
09103-06265-000 BOLT(6X12)H27A; 2005-08-01~2006-06-01 |
09103-06265-000 |
US $1.28 |
||
|
8
|
8
15710-66J00-000 INJECTOR ASSY,FUELH27A; 2005-05-01~2006-06-01 |
15710-66J00-000 |
US $342.40 |
||
|
9
|
9
15716-83AT0-000 GROMMET SET,FUEL INJECTORH27A; 2005-05-01~2006-06-01 |
15716-83AT0-000 |
US $11.37 |
||
|
10
|
10
15735-58B00-000 INSULATOR,DELIVERY PIPEInsulator, delivery pipe H27A; 2005-05-01~2006-06-01 |
15735-58B00-000 |
US $2.72 |
||
|
11
|
11
09320-08062-000 CUSHIONH27A; 2005-05-01~2006-06-01 |
09320-08062-000 |
from US $4.32 |
||
|
12
|
12
09360-14012-000 BOLT,14X27Bolt, union (14x27) H27A; 2005-05-01~2006-06-01 |
09360-14012-000 |
from US $6.88 |
||
|
13
|
13
15762-61B00-000
Gasket,union(14x19x0.84)
H27A; 2005-05-01~2006-06-01 |
15762-61B00-000 |
— | ||
| replacement | |||||
|
13
|
13
15762-61B01-000 GASKET,UNION(14X19X0.84)H27A; 2005-05-01~2006-06-01 |
15762-61B01-000 |
US $1.52 |
||
