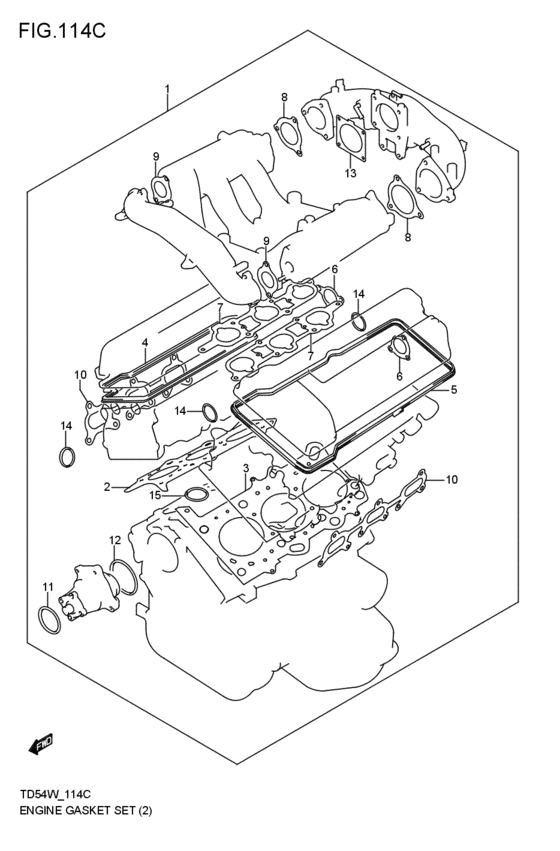

engine gasket set (H27A; 2005-05-01~2006-06-01) Diagram Suzuki ESCUDO
- Year
- 2005 - 2011
- Sales region
- Japan
- Engine
- H27A
- transmission
- AT
- grade
- XS
- air bag
- 6AB
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11400-66810-000 GASKET SET,ENGINEH27A; 2005-05-01~2006-06-01 |
11400-66810-000 |
from US $379.71 |
||
|
2
|
2
11141-52D01-000 GASKET,CYL HEAD,RH27A; 2005-05-01~2006-06-01 |
11141-52D01-000 |
from US $113.60 |
||
|
3
|
3
11142-52D01-000 GASKET,CYL HEAD,LH27A; 2005-05-01~2006-06-01 |
11142-52D01-000 |
from US $111.53 |
||
|
4
|
4
11176-66J00-000 GASKET,CYL HEAD COVER,RH27A; 2005-05-01~2006-06-01 |
11176-66J00-000 |
from US $30.67 |
||
|
5
|
5
11186-66J00-000 GASKET,CYL HEAD COVER,LH27A; 2005-05-01~2006-06-01 |
11186-66J00-000 |
from US $30.60 |
||
|
6
|
6
17579-85FA0-000 GASKET,WTR OUTLET CAPH27A; 2005-05-01~2006-06-01 |
17579-85FA0-000 |
from US $7.52 |
||
|
7
|
7
13119-77E00-000 GASKET,INTK MANFH27A; 2005-05-01~2006-06-01 |
13119-77E00-000 |
from US $12.65 |
||
|
8
|
8
13122-67D00-000 GASKET,COLLECTORH27A; 2005-05-01~2006-06-01 |
13122-67D00-000 |
from US $6.14 |
||
|
9
|
9
13139-67D00-000 GASKET,SURGE TANK PIPEH27A; 2005-05-01~2006-06-01 |
13139-67D00-000 |
from US $2.72 |
||
|
10
|
10
14140-67D03-000 GASKET,EXH MANFH27A; 2005-05-01~2006-06-01 |
14140-67D03-000 |
from US $35.57 |
||
|
11
|
11
09280-62003-000 O RING(D:3.5,ID:60.7)H27A; 2005-05-01~2006-06-01 |
09280-62003-000 |
from US $4.75 |
||
|
12
|
12
09280-71003-000 O RING(D:3.5,ID:70)H27A; 2005-05-01~2006-06-01 |
09280-71003-000 |
from US $12.08 |
||
|
13
|
13
13421-66J00-000 GASKET,THROTTLE BODYH27A; 2005-05-01~2006-06-01 |
13421-66J00-000 |
from US $3.72 |
||
|
14
|
14
09280-34005-000 O RING(D:3.5,ID:33.7)H27A; 2005-05-01~2006-06-01 |
09280-34005-000 |
from US $2.08 |
||
|
15
|
15
09280-44008-000 O RING(D:2.4,ID:39.5)H27A; 2005-05-01~2006-06-01 |
09280-44008-000 |
from US $3.04 |
