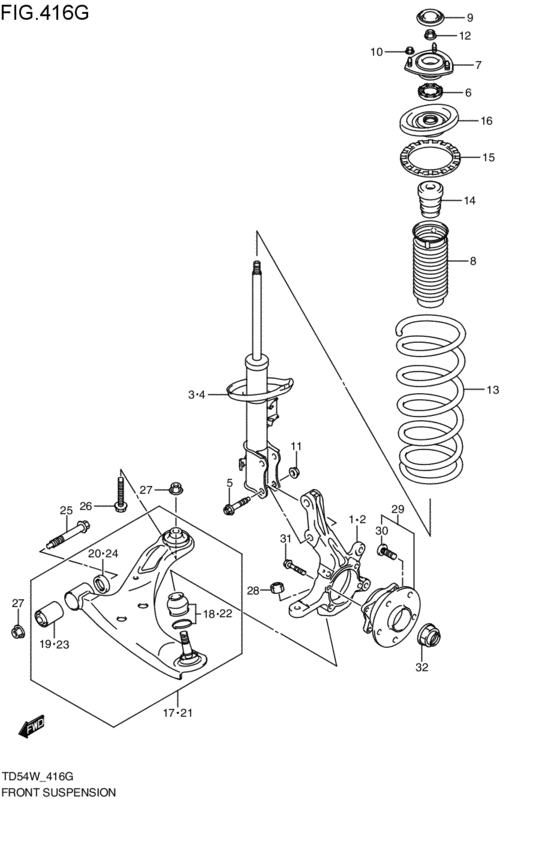

front suspension (2005-05-01~2006-06-01) Diagram Suzuki ESCUDO
- Year
- 2005 - 2011
- Sales region
- Japan
- Engine
- H27A
- transmission
- AT
- grade
- XS
- air bag
- 6AB
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
45111-65J00-000 KNUCKLE,STEERING,R2005-05-01~2006-06-01 |
45111-65J00-000 |
from US $181.98 |
||
|
2
|
2
45151-65J00-000 KNUCKLE,STEERING,L2005-05-01~2006-06-01 |
45151-65J00-000 |
from US $188.89 |
||
|
3
|
3
41601-65J00-000
Strut assy,front suspension,r
H27A; 2005-05-01~2006-06-01 |
41601-65J00-000 |
— | ||
| replacement | |||||
|
3
|
3
41601-65J01-000 STRUT ASSY,FR SUSPENSION,RH27A; 2005-05-01~2006-06-01 |
41601-65J01-000 |
from US $300.51 |
||
|
4
|
4
41602-65J00-000
Strut assy,front suspension,l
H27A; 2005-05-01~2006-06-01 |
41602-65J00-000 |
— | ||
| replacement | |||||
|
4
|
4
41602-65J01-000 STRUT ASSY,FR SUSPENSION,LH27A; 2005-05-01~2006-06-01 |
41602-65J01-000 |
from US $260.30 |
||
|
5
|
5
41615-65J00-000
ボルト,ストラットブラケット
2005-05-01~2006-06-01 |
41615-65J00-000 |
— | ||
| replacement | |||||
|
5
|
5
09103-14025-000 BOLT(14X60)2005-05-01~2006-06-01 |
09103-14025-000 |
from US $5.33 |
||
|
6
|
6
41741-65J00-000
Bearing,front strut
2005-05-01~2006-06-01 |
41741-65J00-000 |
— | ||
| replacement | |||||
|
6
|
6
41741-78K00-000 BEARING,FR STRUT2005-05-01~2006-06-01 |
41741-78K00-000 |
from US $16.20 |
||
|
7
|
7
41810-65J00-000
Support comp,front strut
2005-05-01~2006-06-01 |
41810-65J00-000 |
— | ||
| replacement | |||||
|
7
|
7
41810-78K00-000 SUPPORT,FRONT STRUT2005-05-01~2006-06-01 |
41810-78K00-000 |
from US $77.33 |
||
|
8
|
8
41931-65J00-000 COVER,STRUT DUST2005-05-01~2006-06-01 |
41931-65J00-000 |
from US $17.37 |
||
|
9
|
9
41932-65J00-000 CAP,STRUT SUPPORT2005-05-01~2006-06-01 |
41932-65J00-000 |
from US $2.25 |
||
|
10
|
10
42423-65J00-000
ナット,ストラットサポート
2005-05-01~2006-06-01 |
42423-65J00-000 |
— | ||
| replacement | |||||
|
10
|
10
09159-10117-000 NUT2005-05-01~2006-06-01 |
09159-10117-000 |
from US $1.94 |
||
|
11
|
11
45265-65J00-000
ナット,ストラットブラケット
2005-05-01~2006-06-01 |
45265-65J00-000 |
— | ||
| replacement | |||||
|
11
|
11
09159-14028-000 NUT2005-05-01~2006-06-01 |
09159-14028-000 |
from US $2.24 |
||
|
12
|
12
45719-52D00-000
ナット,サスペンションアーム,リヤ
2005-05-01~2006-06-01 |
45719-52D00-000 |
— | ||
| replacement | |||||
|
12
|
12
09159-14030-000 NUT2005-05-01~2006-06-01 |
09159-14030-000 |
from US $2.08 |
||
|
13
|
13
41111-66J00-000 SPRING,FRONT COILH27A; 2005-05-01~2006-06-01 |
41111-66J00-000 |
US $164.86 |
||
|
14
|
14
42111-65J00-000 STOPPER,BUMP2005-05-01~2006-06-01 |
42111-65J00-000 |
from US $12.47 |
||
|
15
|
15
41211-65J00-000 SEAT,COIL SPRING RUBBER UPPER2005-05-01~2006-06-01 |
41211-65J00-000 |
from US $15.68 |
||
|
16
|
16
41230-65J00-000 SEAT,COIL SPRING UPPER2005-05-01~2006-06-01 |
41230-65J00-000 |
from US $25.99 |
||
|
17
|
17
45201-65J00-000
アームアッシ,フロントサスペンション,ライト
2005-05-01~2006-06-01 |
45201-65J00-000 |
— | ||
| replacement | |||||
|
17
|
17
45201-78K00-000 ARM ASSY,FR SPNSN,R2005-05-01~2006-06-01 |
45201-78K00-000 |
from US $267.50 |
||
|
18
|
18
43345-65810-000
SEAL SET,DUST
2005-05-01~2006-06-01 |
43345-65810-000 |
— | ||
| replacement | |||||
|
18
|
18
43345-65811-000 Seal Set,dust2005-05-01~2006-06-01 |
43345-65811-000 |
from US $30.47 |
||
|
19
|
19
45261-65J00-000 BUSHING,SPNSN ARM,FR2005-05-01~2006-06-01 |
45261-65J00-000 |
from US $39.20 |
||
|
20
|
20
45531-65J00-000 STOPPER,RUBBER2005-05-01~2006-06-01 |
45531-65J00-000 |
from US $4.70 |
||
|
21
|
21
45202-65J00-000
アームアッシ,フロントサスペンション,レフト
2005-05-01~2006-06-01 |
45202-65J00-000 |
— | ||
| replacement | |||||
|
21
|
21
45202-78K00-000 ARM ASSY,FR SPNSN,L2005-05-01~2006-06-01 |
45202-78K00-000 |
from US $270.05 |
||
|
22
|
22
43345-65810-000
SEAL SET,DUST
2005-05-01~2006-06-01 |
43345-65810-000 |
— | ||
| replacement | |||||
|
22
|
22
43345-65811-000 Seal Set,dust2005-05-01~2006-06-01 |
43345-65811-000 |
from US $30.47 |
||
|
23
|
23
45261-65J00-000 BUSHING,SPNSN ARM,FR2005-05-01~2006-06-01 |
45261-65J00-000 |
from US $39.20 |
||
|
24
|
24
45531-65J00-000 STOPPER,RUBBER2005-05-01~2006-06-01 |
45531-65J00-000 |
from US $4.70 |
||
|
25
|
25
45215-65J00-000
ボルト,リヤディファレンシャルマウンチング,フロント
2005-05-01~2006-06-01 |
45215-65J00-000 |
— | ||
| replacement | |||||
|
25
|
25
09135-14015-000 BOLT(14X92)2005-05-01~2006-06-01 |
09135-14015-000 |
from US $8.51 |
||
|
26
|
26
45225-65J00-000
ボルト,サスペンションアーム,リヤ
2005-05-01~2006-06-01 |
45225-65J00-000 |
— | ||
| replacements | |||||
|
26
|
26
09135-14015-000 BOLT(14X92)2005-05-01~2006-06-01 |
09135-14015-000 |
from US $8.51 |
||
|
26
|
26
09135-14014-000
Bolt
2005-05-01~2006-06-01 |
09135-14014-000 |
— | ||
|
27
|
27
45265-65J00-000
ナット,ストラットブラケット
2005-05-01~2006-06-01 |
45265-65J00-000 |
— | ||
| replacement | |||||
|
27
|
27
09159-14028-000 NUT2005-05-01~2006-06-01 |
09159-14028-000 |
from US $2.24 |
||
|
28
|
28
45717-65J00-000
ナット,ボールジョイントスタッドコーキング
2005-05-01~2006-06-01 |
45717-65J00-000 |
— | ||
| replacement | |||||
|
28
|
28
09159-14029-000 NUT2005-05-01~2006-06-01 |
09159-14029-000 |
from US $2.05 |
||
|
29
|
29
43401-65J00-000
ハブアッシ,ホイール
2005-05-01~2006-06-01 |
43401-65J00-000 |
— | ||
| replacement | |||||
|
29
|
29
43402-57L51-000 HUB ASSY,WHL2005-05-01~2006-06-01 |
43402-57L51-000 |
from US $274.57 |
||
|
30
|
30
09119-12012-000 BOLT(12X38)2005-05-01~2006-06-01 |
09119-12012-000 |
US $2.72 |
||
|
31
|
31
43458-65J00-000
ボルト,ホイールハブハウジング
2005-05-01~2006-06-01 |
43458-65J00-000 |
— | ||
| replacement | |||||
|
31
|
31
09103-10404-000 BOLT(10X50)2005-05-01~2006-06-01 |
09103-10404-000 |
US $2.88 |
||
|
32
|
32
43459-65J00-000 NUT,FR AXLE2005-05-01~2006-06-01 |
43459-65J00-000 |
from US $6.21 |
||
