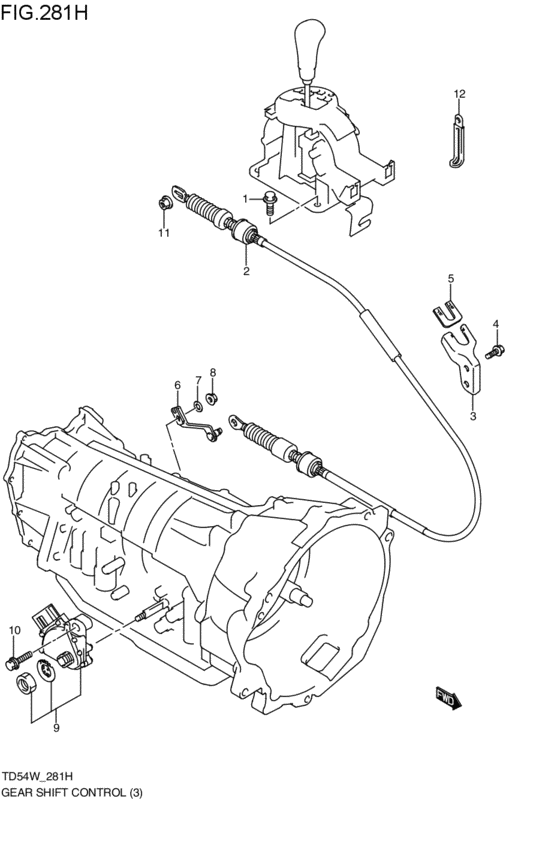

gearlever control (AT:H27A; 2005-05-01~2006-06-01) Diagram Suzuki ESCUDO
- Year
- 2005 - 2011
- Sales region
- Japan
- Engine
- H27A
- transmission
- AT
- grade
- XS
- air bag
- 6AB
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
09118-08165-000 BOLT(8X25)AT:H27A; 2005-05-01~2006-06-01 |
09118-08165-000 |
US $14 |
||
|
2
|
2
28210-64J10-000
ケーブルアッシ,セレクト
AT:H27A; 2005-05-01~2006-06-01 |
28210-64J10-000 |
— | ||
| replacement | |||||
|
2
|
2
28210-64J11-000 CABLE ASSY,SELECTAT:H27A; 2005-05-01~2006-06-01 |
28210-64J11-000 |
US $211.20 |
||
|
3
|
3
28221-64J10-000
ブラケット,セレクトケーブル
AT:H27A; 2005-05-01~2006-06-01 |
28221-64J10-000 |
— | ||
| replacement | |||||
|
3
|
3
28221-64J11-000
BRACKET,SELECT CABLE
AT:H27A; 2005-05-01~2006-06-01 |
28221-64J11-000 |
— | ||
|
4
|
4
01550-08203-000
Bolt
AT:H27A; 2005-05-01~2006-06-01 |
01550-08203-000 |
— | ||
| replacements | |||||
|
4
|
4
01550-0820B-000 BoltAT:H27A; 2005-05-01~2006-06-01 |
01550-0820B-000 |
from US $0.91 |
||
|
4
|
4
01550-0820A-000 BOLTBolt, funnel bracket AT:H27A; 2005-05-01~2006-06-01 |
01550-0820A-000 |
from US $0.96 |
||
|
5
|
5
29365-79A40-000 CLIPAT:H27A; 2005-05-01~2006-06-01 |
29365-79A40-000 |
US $4 |
||
|
6
|
6
28231-64J10-000 LEVER,MANUAL SLTAT:H27A; 2005-05-01~2006-06-01 |
28231-64J10-000 |
US $21.60 |
||
|
7
|
7
09162-08008-000 WASHER,LOCKLock washer AT:H27A; 2005-05-01~2006-06-01 |
09162-08008-000 |
from US $0.80 |
||
|
8
|
8
08310-00083-000
Nut
AT:H27A; 2005-05-01~2006-06-01 |
08310-00083-000 |
— | ||
| replacements | |||||
|
8
|
8
08310-0008B-000 NUTAT:H27A; 2005-05-01~2006-06-01 |
08310-0008B-000 |
from US $0.80 |
||
|
8
|
8
08310-0008A-000 NUTNut, bead stopper AT:H27A; 2005-05-01~2006-06-01 |
08310-0008A-000 |
from US $0.76 |
||
|
9
|
9
37720-68H10-000 SWITCH ASSY,SHIFTAT:H27A; 2005-05-01~2006-06-01 |
37720-68H10-000 |
US $188.48 |
||
|
10
|
10
24742-53J10-000 BoltAT:H27A; 2005-05-01~2006-06-01 |
24742-53J10-000 |
US $3.97 |
||
|
11
|
11
09159-08069-000
Nut
AT:H27A; 2005-05-01~2006-06-01 |
09159-08069-000 |
— | ||
| replacement | |||||
|
11
|
11
09159-08135-000 NUTAT:H27A; 2005-05-01~2006-06-01 |
09159-08135-000 |
US $1.12 |
||
|
12
|
12
09404-08420-000 CLAMP(L:120 T:1.0)AT:H27A; 2005-05-01~2006-06-01 |
09404-08420-000 |
from US $2.08 |
||
