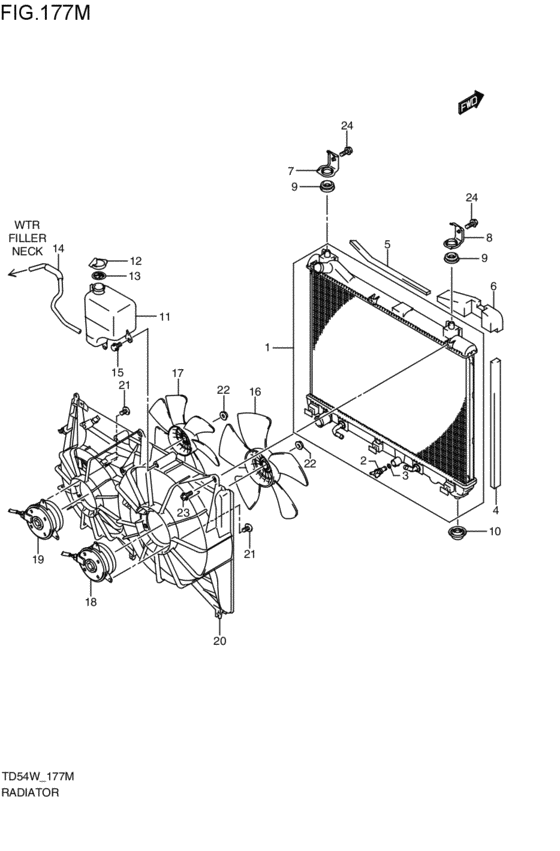

radiator (2005-05-01~2006-06-01) Diagram Suzuki ESCUDO
- Year
- 2005 - 2011
- Sales region
- Japan
- Engine
- H27A
- transmission
- AT
- grade
- XS
- air bag
- 6AB
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17700-66J10-000 RADIATOR ASSYH27A; 2005-05-01~2006-06-01 |
17700-66J10-000 |
US $770.88 |
||
|
2
|
2
17751-61A00-000 PLUG,DRAIN2005-05-01~2006-06-01 |
17751-61A00-000 |
US $4.32 |
||
|
3
|
3
17759-72010-000 O-RING2005-05-01~2006-06-01 |
17759-72010-000 |
US $1.52 |
||
|
4
|
4
17791-65J00-000 SEAL,RADIATOR NO.12005-05-01~2006-06-01 |
17791-65J00-000 |
US $7.04 |
||
|
5
|
5
17792-65J00-000 SEAL,RADIATOR NO.22005-05-01~2006-06-01 |
17792-65J00-000 |
US $5.92 |
||
|
6
|
6
17793-65J00-000 SEAL,RADIATOR NO.32005-05-01~2006-06-01 |
17793-65J00-000 |
US $16.80 |
||
|
7
|
7
17811-65J00-000 BRACKET,RDTR SPRT,R2005-05-01~2006-06-01 |
17811-65J00-000 |
US $14.24 |
||
|
8
|
8
17811-65J10-000 BRACKET,RDTR SPRT,L2005-05-01~2006-06-01 |
17811-65J10-000 |
US $14.24 |
||
|
9
|
9
17812-54G00-000 MOUNT,RDTR SUPPORT UPR2005-05-01~2006-06-01 |
17812-54G00-000 |
US $2.88 |
||
|
10
|
10
17813-54G01-000 MOUNT LWR2005-05-01~2006-06-01 |
17813-54G01-000 |
US $4.16 |
||
|
11
|
11
17931-65J00-000 TANK,WATER RESERVE2005-05-01~2006-06-01 |
17931-65J00-000 |
US $46.40 |
||
|
12
|
12
17932-63J00-000 CAP,WATER RESERVE TANK2005-05-01~2006-06-01 |
17932-63J00-000 |
US $2.89 |
||
|
13
|
13
17933-60B00-000 RUBBER,WTR RSV TANK CAPRubber, tank cap 2005-05-01~2006-06-01 |
17933-60B00-000 |
US $2.13 |
||
|
14
|
14
17938-66J00-000 HOSE,RDTR TO RSV TANKH27A; 2005-05-01~2006-06-01 |
17938-66J00-000 |
US $19.01 |
||
|
15
|
15
09111-06085-000 BOLT(6X12)2005-05-01~2006-06-01 |
09111-06085-000 |
from US $2.40 |
||
|
16
|
16
17111-66J00-000 FAN,COOLING 5 BLADES5マイハネ; H27A; 2005-05-01~2006-06-01 |
17111-66J00-000 |
US $76.91 |
||
|
17
|
17
17111-66J10-000 FAN,COOLING 7 BLADES7マイハネ; H27A; 2005-05-01~2006-06-01 |
17111-66J10-000 |
US $73.97 |
||
|
18
|
18
17120-66J00-000 MOTOR ASSY,FAN MAINH27A; 2005-05-01~2006-06-01 |
17120-66J00-000 |
US $429.44 |
||
|
19
|
19
17120-66J10-000 MOTOR ASSY,FAN SUBH27A; 2005-05-01~2006-06-01 |
17120-66J10-000 |
US $404.80 |
||
|
20
|
20
17760-65J00-000 SHROUD2005-05-01~2006-06-01 |
17760-65J00-000 |
US $166.40 |
||
|
21
|
21
02142-05103-000
Screw 5x10
2005-05-01~2006-06-01 |
02142-05103-000 |
— | ||
| replacement | |||||
|
21
|
21
02142-0510B-000 SCREWBolt 2005-05-01~2006-06-01 |
02142-0510B-000 |
from US $0.76 |
||
|
22
|
22
08316-20053-000
Nut
2005-05-01~2006-06-01 |
08316-20053-000 |
— | ||
| replacement | |||||
|
22
|
22
08316-2005A-000 NUT2005-05-01~2006-06-01 |
08316-2005A-000 |
from US $0.80 |
||
|
23
|
23
02162-06163-000
Screw
2005-05-01~2006-06-01 |
02162-06163-000 |
— | ||
| replacement | |||||
|
23
|
23
02162-0616B-000 SCREWBolt, adjust 2005-05-01~2006-06-01 |
02162-0616B-000 |
from US $0.80 |
||
|
24
|
24
02162-06123-000
Bolt (6x12)
H27A; 2005-05-01~2006-06-01 |
02162-06123-000 |
— | ||
| replacements | |||||
|
24
|
24
02162-0612B-000 SCREWBolt H27A; 2005-05-01~2006-06-01 |
02162-0612B-000 |
from US $0.80 |
||
|
24
|
24
02162-0612A-000 SCREWBolt, bracket H27A; 2005-05-01~2006-06-01 |
02162-0612A-000 |
from US $0.80 |
||
