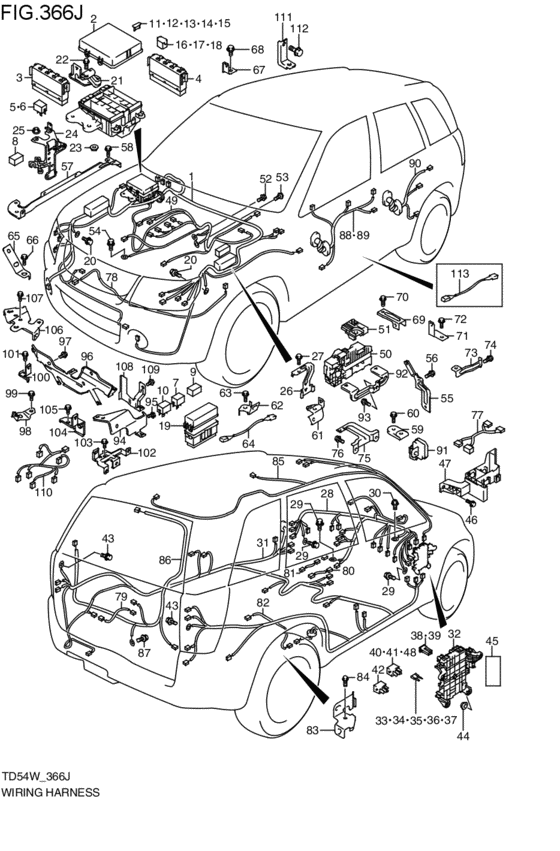

wire ring harness (エンジン1 / エンジン2 / ボデイ; 2005-05-01~2006-06-01) Diagram Suzuki ESCUDO
- Year
- 2005 - 2011
- Sales region
- Japan
- Engine
- H27A
- transmission
- AT
- grade
- XS
- air bag
- 6AB
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
36610-66J10-000
ハーネスアッシ,メイン
XS; 2005-05-01~2006-06-01 |
36610-66J10-000 |
— | ||
|
2
|
2
36738-65J00-000
カバー,フューズ/リレーボックス
2005-05-01~2006-06-01 |
36738-65J00-000 |
— | ||
|
3
|
3
36742-65J00-000 MODULE,POWER INTEGRATIONMARK:SA; 2005-05-01~2006-06-01 |
36742-65J00-000 |
US $63.09 |
||
|
4
|
4
36742-76J00-000 MODULE,POWER INTEGRATIONMARK:SB; 2005-05-01~2006-06-01 |
36742-76J00-000 |
US $57.01 |
||
|
5
|
5
38860-76F01-000 RELAY ASSYRelay, starting motor ヘッド ランプ リレー; 2005-05-01~2006-06-01 |
38860-76F01-000 |
from US $28.80 |
||
|
6
|
6
38860-76F01-000 RELAY ASSYRelay, starting motor スタータ リレー; 2005-05-01~2006-06-01 |
38860-76F01-000 |
from US $28.80 |
||
|
7
|
7
38860-76F01-000 RELAY ASSYRelay, starting motor ラジエータ フアン リレー; 2005-05-01~2006-06-01 |
38860-76F01-000 |
from US $28.80 |
||
|
8
|
8
38860-76F01-000 RELAY ASSYRelay, starting motor デアイサ リレー; 2005-05-01~2006-06-01 |
38860-76F01-000 |
from US $28.80 |
||
|
9
|
9
38860-78F00-000 RELAY ASSYラジエータ フアン リレー; 2005-05-01~2006-06-01 |
38860-78F00-000 |
US $27.05 |
||
|
10
|
10
74145-65D00-000 RELAY ASSYヒータ ブロア フアン リレー; 2005-05-01~2006-06-01 |
74145-65D00-000 |
US $28.89 |
||
|
11
|
11
09481-10501-000 FUSE(10A)2005-05-01~2006-06-01 |
09481-10501-000 |
from US $1.22 |
||
|
12
|
12
09481-15501-000 FUSE(15A)2005-05-01~2006-06-01 |
09481-15501-000 |
from US $3.25 |
||
|
13
|
13
09481-20501-000 FUSE(20A)2005-05-01~2006-06-01 |
09481-20501-000 |
from US $2.28 |
||
|
14
|
14
09481-25501-000 FUSE(25A)2005-05-01~2006-06-01 |
09481-25501-000 |
from US $2.28 |
||
|
15
|
15
09481-30501-000 FUSE(30A)2005-05-01~2006-06-01 |
09481-30501-000 |
from US $1.08 |
||
|
16
|
16
09481-30401-000 FUSE(30A)2005-05-01~2006-06-01 |
09481-30401-000 |
from US $9.98 |
||
|
17
|
17
09481-40401-000 FUSE(40A)2005-05-01~2006-06-01 |
09481-40401-000 |
US $6.54 |
||
|
18
|
18
09481-50401-000 FUSE(50A)2005-05-01~2006-06-01 |
09481-50401-000 |
US $46 |
||
|
19
|
19
36744-65J00-000 COVER,RELAY BOX2005-05-01~2006-06-01 |
36744-65J00-000 |
US $9.38 |
||
|
20
|
20
09115-06001-000
Bolt, lh
2005-05-01~2006-06-01 |
09115-06001-000 |
— | ||
| replacement | |||||
|
20
|
20
09115-06005-000 BOLT(6X16)2005-05-01~2006-06-01 |
09115-06005-000 |
US $1.28 |
||
|
21
|
21
36735-64JA0-000
Bracket,main fuse & rly box
2005-05-01~2006-06-01 |
36735-64JA0-000 |
— | ||
| replacement | |||||
|
21
|
21
36735-64JA1-000 BRACKET,MAIN FUSE&RLY BOX2005-05-01~2006-06-01 |
36735-64JA1-000 |
US $5.67 |
||
|
22
|
22
02162-06123-000
Bolt (6x12)
2005-05-01~2006-06-01 |
02162-06123-000 |
— | ||
| replacements | |||||
|
22
|
22
02162-0612B-000 SCREWBolt 2005-05-01~2006-06-01 |
02162-0612B-000 |
from US $0.80 |
||
|
22
|
22
02162-0612A-000 SCREWBolt, bracket 2005-05-01~2006-06-01 |
02162-0612A-000 |
from US $0.80 |
||
|
23
|
23
08316-10063-000
Nut
2005-05-01~2006-06-01 |
08316-10063-000 |
— | ||
| replacement | |||||
|
23
|
23
08316-1006B-000 NUT2005-05-01~2006-06-01 |
08316-1006B-000 |
from US $0.76 |
||
|
24
|
24
36735-64J10-000
Bracket,strut r
2005-05-01~2006-06-01 |
36735-64J10-000 |
— | ||
| replacement | |||||
|
24
|
24
36735-64J11-000 BRACKET,STRUT R2005-05-01~2006-06-01 |
36735-64J11-000 |
US $13.14 |
||
|
25
|
25
08316-10063-000
Nut
2005-05-01~2006-06-01 |
08316-10063-000 |
— | ||
| replacement | |||||
|
25
|
25
08316-1006B-000 NUT2005-05-01~2006-06-01 |
08316-1006B-000 |
from US $0.76 |
||
|
26
|
26
36735-64J30-000 BRACKET,RDTR RLY BOX2005-05-01~2006-06-01 |
36735-64J30-000 |
US $3.64 |
||
|
27
|
27
02162-06123-000
Bolt (6x12)
2005-05-01~2006-06-01 |
02162-06123-000 |
— | ||
| replacements | |||||
|
27
|
27
02162-0612B-000 SCREWBolt 2005-05-01~2006-06-01 |
02162-0612B-000 |
from US $0.80 |
||
|
27
|
27
02162-0612A-000 SCREWBolt, bracket 2005-05-01~2006-06-01 |
02162-0612A-000 |
from US $0.80 |
||
|
28
|
28
36620-66J70-000
ハーネスアッシ,インストゥルメントパネル
XS; 2005-05-01~2006-06-01 |
36620-66J70-000 |
— | ||
|
29
|
29
09115-06001-000
Bolt, lh
2005-05-01~2006-06-01 |
09115-06001-000 |
— | ||
| replacement | |||||
|
29
|
29
09115-06005-000 BOLT(6X16)2005-05-01~2006-06-01 |
09115-06005-000 |
US $1.28 |
||
|
30
|
30
02162-06123-000
Bolt (6x12)
2005-05-01~2006-06-01 |
02162-06123-000 |
— | ||
| replacements | |||||
|
30
|
30
02162-0612B-000 SCREWBolt 2005-05-01~2006-06-01 |
02162-0612B-000 |
from US $0.80 |
||
|
30
|
30
02162-0612A-000 SCREWBolt, bracket 2005-05-01~2006-06-01 |
02162-0612A-000 |
from US $0.80 |
||
|
31
|
31
36630-66J30-000
ハーネスアッシ,フロア
ナビ ミセッテイ; XS; 2005-05-01~2006-06-01 |
36630-66J30-000 |
— | ||
|
31
|
31
36630-66J40-000
ハーネスアッシ,フロア
ナビ シヨウ; XS; 2005-05-01~2006-06-01 |
36630-66J40-000 |
— | ||
|
32
|
32
36710-64J00-000
Box assy,junction
2005-05-01~2006-06-01 |
36710-64J00-000 |
— | ||
| replacement | |||||
|
32
|
32
36710-64JA0-000 BOX ASSY,JUNCTION2005-05-01~2006-06-01 |
36710-64JA0-000 |
US $143.15 |
||
|
33
|
33
09481-07501-000 FUSE(7.5A)2005-05-01~2006-06-01 |
09481-07501-000 |
US $11.80 |
||
|
34
|
34
09481-10501-000 FUSE(10A)2005-05-01~2006-06-01 |
09481-10501-000 |
from US $1.22 |
||
|
35
|
35
09481-15501-000 FUSE(15A)2005-05-01~2006-06-01 |
09481-15501-000 |
from US $3.25 |
||
|
36
|
36
09481-20501-000 FUSE(20A)2005-05-01~2006-06-01 |
09481-20501-000 |
from US $2.28 |
||
|
37
|
37
09481-25501-000 FUSE(25A)2005-05-01~2006-06-01 |
09481-25501-000 |
from US $2.28 |
||
|
38
|
38
09481-20401-000 FUSE(20A)2005-05-01~2006-06-01 |
09481-20401-000 |
US $56.30 |
||
|
39
|
39
09481-30401-000 FUSE(30A)2005-05-01~2006-06-01 |
09481-30401-000 |
from US $9.98 |
||
|
40
|
40
38860-76F01-000 RELAY ASSYRelay, starting motor アクセサリ ソケット リレー; 2005-05-01~2006-06-01 |
38860-76F01-000 |
from US $28.80 |
||
|
41
|
41
38860-76F01-000 RELAY ASSYRelay, starting motor リヤ ランプ リレー; 2005-05-01~2006-06-01 |
38860-76F01-000 |
from US $28.80 |
||
|
42
|
42
38860-78F00-000 RELAY ASSYリヤ ワイパ リレー; 2005-05-01~2006-06-01 |
38860-78F00-000 |
US $27.05 |
||
|
43
|
43
09115-06001-000
Bolt, lh
2005-05-01~2006-06-01 |
09115-06001-000 |
— | ||
| replacement | |||||
|
43
|
43
09115-06005-000 BOLT(6X16)2005-05-01~2006-06-01 |
09115-06005-000 |
US $1.28 |
||
|
44
|
44
08316-10063-000
Nut
2005-05-01~2006-06-01 |
08316-10063-000 |
— | ||
| replacement | |||||
|
44
|
44
08316-1006B-000 NUT2005-05-01~2006-06-01 |
08316-1006B-000 |
from US $0.76 |
||
|
45
|
45
36717-64J00-000
ラベル,フューズボックス
2005-05-01~2006-06-01 |
36717-64J00-000 |
— | ||
| replacement | |||||
|
45
|
45
36717-64J01-000
LABEL,FUSE BOX
2005-05-01~2006-06-01 |
36717-64J01-000 |
— | ||
|
46
|
46
36655-65J20-000
WIRE,AT&4WD CONT
AT:H27A; 2005-05-01~2006-06-01 |
36655-65J20-000 |
— | ||
|
47
|
47
02162-06123-000
Bolt (6x12)
2005-05-01~2006-06-01 |
02162-06123-000 |
— | ||
| replacements | |||||
|
47
|
47
02162-0612B-000 SCREWBolt 2005-05-01~2006-06-01 |
02162-0612B-000 |
from US $0.80 |
||
|
47
|
47
02162-0612A-000 SCREWBolt, bracket 2005-05-01~2006-06-01 |
02162-0612A-000 |
from US $0.80 |
||
|
48
|
48
38860-76F01-000 RELAY ASSYRelay, starting motor シフト ロック リレー; AT; 2005-05-01~2006-06-01 |
38860-76F01-000 |
from US $28.80 |
||
|
49
|
49
36650-66J10-000
HARNESS ASSY,ENGINE
AT:H27A; 2005-05-01~2006-06-01 |
36650-66J10-000 |
— | ||
|
50
|
50
36740-64J00-000 BLOCK,FUSE2005-05-01~2006-06-01 |
36740-64J00-000 |
US $71.76 |
||
|
51
|
51
36739-66J00-000 FUSE,BATTERY CABLE 120AH27A; 2005-05-01~2006-06-01 |
36739-66J00-000 |
US $18.22 |
||
|
52
|
52
01550-06123-000
Bolt
2005-05-01~2006-06-01 |
01550-06123-000 |
— | ||
| replacements | |||||
|
52
|
52
01550-0612B-000 BOLTBolt, clamp 2005-05-01~2006-06-01 |
01550-0612B-000 |
from US $0.76 |
||
|
52
|
52
01550-0612A-000 BOLT2005-05-01~2006-06-01 |
01550-0612A-000 |
from US $0.76 |
||
|
54
|
54
09115-06001-000
Bolt, lh
2005-05-01~2006-06-01 |
09115-06001-000 |
— | ||
| replacement | |||||
|
54
|
54
09115-06005-000 BOLT(6X16)2005-05-01~2006-06-01 |
09115-06005-000 |
US $1.28 |
||
|
75
|
75
36745-64J10-000 BRACKET,BTRY HARN2005-05-01~2006-06-01 |
36745-64J10-000 |
US $9.16 |
||
|
76
|
76
02162-06123-000
Bolt (6x12)
2005-05-01~2006-06-01 |
02162-06123-000 |
— | ||
| replacements | |||||
|
76
|
76
02162-0612B-000 SCREWBolt 2005-05-01~2006-06-01 |
02162-0612B-000 |
from US $0.80 |
||
|
76
|
76
02162-0612A-000 SCREWBolt, bracket 2005-05-01~2006-06-01 |
02162-0612A-000 |
from US $0.80 |
||
|
77
|
77
74156-64J00-000 WIRE,A/C PANEL2005-05-01~2006-06-01 |
74156-64J00-000 |
US $48.58 |
||
|
78
|
78
36658-65J10-000 WIRE,FR DIFF&HEIGHT SENSORXG,XGF,XS; 2005-05-01~2006-06-01 |
36658-65J10-000 |
US $56.67 |
||
|
79
|
79
36658-66J00-000 WIRE,RR HEIGHT SENSORXG,XGF,XS; 2005-05-01~2006-06-01 |
36658-66J00-000 |
US $37.90 |
||
|
80
|
80
36611-65J00-000 WIRE,CONSOLE2005-05-01~2006-06-01 |
36611-65J00-000 |
US $29.07 |
||
|
81
|
81
36611-65J70-000 WIRE,CONSOLEAT; 2005-05-01~2006-06-01 |
36611-65J70-000 |
US $26.86 |
||
|
82
|
82
36840-65J00-000 WIRE,FUEL2005-05-01~2006-06-01 |
36840-65J00-000 |
US $60.72 |
||
|
83
|
83
36648-65J00-000
ブラケット,フューエルワイヤ
2005-05-01~2006-06-01 |
36648-65J00-000 |
— | ||
| replacement | |||||
|
83
|
83
36648-78K00-000 BRACKET,FUEL WIRE2005-05-01~2006-06-01 |
36648-78K00-000 |
US $3.35 |
||
|
84
|
84
02162-06123-000
Bolt (6x12)
2005-05-01~2006-06-01 |
02162-06123-000 |
— | ||
| replacements | |||||
|
84
|
84
02162-0612B-000 SCREWBolt 2005-05-01~2006-06-01 |
02162-0612B-000 |
from US $0.80 |
||
|
84
|
84
02162-0612A-000 SCREWBolt, bracket 2005-05-01~2006-06-01 |
02162-0612A-000 |
from US $0.80 |
||
|
85
|
85
36820-65J20-000
WIRE,ROOF
2005-05-01~2006-06-01 |
36820-65J20-000 |
— | ||
|
86
|
86
36845-65J10-000
WIRE,BACK DR
XG,XGF,XS; 2005-05-01~2006-06-01 |
36845-65J10-000 |
— | ||
|
87
|
87
09115-06001-000
Bolt, lh
2005-05-01~2006-06-01 |
09115-06001-000 |
— | ||
| replacement | |||||
|
87
|
87
09115-06005-000 BOLT(6X16)2005-05-01~2006-06-01 |
09115-06005-000 |
US $1.28 |
||
|
88
|
88
36756-65J10-000
ワイヤ,フロントドア,メイン
XG,XGF,XS; 2005-05-01~2006-06-01 |
36756-65J10-000 |
— | ||
|
89
|
89
36757-65J10-000
ワイヤ,フロントドア,サブ
XG,XGF,XS; 2005-05-01~2006-06-01 |
36757-65J10-000 |
— | ||
|
90
|
90
36751-65J00-000 WIRE,RR DR2005-05-01~2006-06-01 |
36751-65J00-000 |
US $73.97 |
||
|
91
|
91
32810-65J00-000 SENSOR ASSY,CURRENT2005-05-01~2006-06-01 |
32810-65J00-000 |
US $104.51 |
||
|
92
|
92
36745-64J00-000 BRACKET,FUSE BLOCK2005-05-01~2006-06-01 |
36745-64J00-000 |
US $4.38 |
||
|
93
|
93
02162-06123-000
Bolt (6x12)
2005-05-01~2006-06-01 |
02162-06123-000 |
— | ||
| replacements | |||||
|
93
|
93
02162-0612B-000 SCREWBolt 2005-05-01~2006-06-01 |
02162-0612B-000 |
from US $0.80 |
||
|
93
|
93
02162-0612A-000 SCREWBolt, bracket 2005-05-01~2006-06-01 |
02162-0612A-000 |
from US $0.80 |
||
|
94
|
94
36651-66J00-000
BRACKET,ENG HARN
H27A; 2005-05-01~2006-06-01 |
36651-66J00-000 |
— | ||
|
95
|
95
01550-06123-000
Bolt
H27A; 2005-05-01~2006-06-01 |
01550-06123-000 |
— | ||
| replacements | |||||
|
95
|
95
01550-0612B-000 BOLTBolt, clamp H27A; 2005-05-01~2006-06-01 |
01550-0612B-000 |
from US $0.76 |
||
|
95
|
95
01550-0612A-000 BOLTH27A; 2005-05-01~2006-06-01 |
01550-0612A-000 |
from US $0.76 |
||
|
96
|
96
36651-66J10-000
BRACKET,ENG HARN
H27A; 2005-05-01~2006-06-01 |
36651-66J10-000 |
— | ||
|
97
|
97
01550-06123-000
Bolt
H27A; 2005-05-01~2006-06-01 |
01550-06123-000 |
— | ||
| replacements | |||||
|
97
|
97
01550-0612B-000 BOLTBolt, clamp H27A; 2005-05-01~2006-06-01 |
01550-0612B-000 |
from US $0.76 |
||
|
97
|
97
01550-0612A-000 BOLTH27A; 2005-05-01~2006-06-01 |
01550-0612A-000 |
from US $0.76 |
||
|
98
|
98
36651-66J20-000
BRACKET,ENG HARN
H27A; 2005-05-01~2006-06-01 |
36651-66J20-000 |
— | ||
|
99
|
99
01550-06123-000
Bolt
H27A; 2005-05-01~2006-06-01 |
01550-06123-000 |
— | ||
| replacements | |||||
|
99
|
99
01550-0612B-000 BOLTBolt, clamp H27A; 2005-05-01~2006-06-01 |
01550-0612B-000 |
from US $0.76 |
||
|
99
|
99
01550-0612A-000 BOLTH27A; 2005-05-01~2006-06-01 |
01550-0612A-000 |
from US $0.76 |
||
|
100
|
100
36651-66J30-000
BRACKET,ENG HARN
H27A; 2005-05-01~2006-06-01 |
36651-66J30-000 |
— | ||
|
101
|
101
01550-06123-000
Bolt
H27A; 2005-05-01~2006-06-01 |
01550-06123-000 |
— | ||
| replacements | |||||
|
101
|
101
01550-0612B-000 BOLTBolt, clamp H27A; 2005-05-01~2006-06-01 |
01550-0612B-000 |
from US $0.76 |
||
|
101
|
101
01550-0612A-000 BOLTH27A; 2005-05-01~2006-06-01 |
01550-0612A-000 |
from US $0.76 |
||
|
102
|
102
36651-66J40-000
BRACKET,ENG HARN
H27A; 2005-05-01~2006-06-01 |
36651-66J40-000 |
— | ||
|
103
|
103
01550-06123-000
Bolt
H27A; 2005-05-01~2006-06-01 |
01550-06123-000 |
— | ||
| replacements | |||||
|
103
|
103
01550-0612B-000 BOLTBolt, clamp H27A; 2005-05-01~2006-06-01 |
01550-0612B-000 |
from US $0.76 |
||
|
103
|
103
01550-0612A-000 BOLTH27A; 2005-05-01~2006-06-01 |
01550-0612A-000 |
from US $0.76 |
||
|
104
|
104
36651-66J50-000
BRACKET,ENG HARN
H27A; 2005-05-01~2006-06-01 |
36651-66J50-000 |
— | ||
|
105
|
105
01550-06123-000
Bolt
H27A; 2005-05-01~2006-06-01 |
01550-06123-000 |
— | ||
| replacements | |||||
|
105
|
105
01550-0612B-000 BOLTBolt, clamp H27A; 2005-05-01~2006-06-01 |
01550-0612B-000 |
from US $0.76 |
||
|
105
|
105
01550-0612A-000 BOLTH27A; 2005-05-01~2006-06-01 |
01550-0612A-000 |
from US $0.76 |
||
|
106
|
106
36651-66J60-000
BRACKET,ENG HARN
H27A; 2005-05-01~2006-06-01 |
36651-66J60-000 |
— | ||
|
107
|
107
01550-06123-000
Bolt
H27A; 2005-05-01~2006-06-01 |
01550-06123-000 |
— | ||
| replacements | |||||
|
107
|
107
01550-0612B-000 BOLTBolt, clamp H27A; 2005-05-01~2006-06-01 |
01550-0612B-000 |
from US $0.76 |
||
|
107
|
107
01550-0612A-000 BOLTH27A; 2005-05-01~2006-06-01 |
01550-0612A-000 |
from US $0.76 |
||
|
108
|
108
36651-66J70-000
BRACKET,ENG HARN
H27A; 2005-05-01~2006-06-01 |
36651-66J70-000 |
— | ||
|
109
|
109
01550-06123-000
Bolt
H27A; 2005-05-01~2006-06-01 |
01550-06123-000 |
— | ||
| replacements | |||||
|
109
|
109
01550-0612B-000 BOLTBolt, clamp H27A; 2005-05-01~2006-06-01 |
01550-0612B-000 |
from US $0.76 |
||
|
109
|
109
01550-0612A-000 BOLTH27A; 2005-05-01~2006-06-01 |
01550-0612A-000 |
from US $0.76 |
||
|
110
|
110
36670-66J00-000 HARNESS ASSY,INJH27A; 2005-05-01~2006-06-01 |
36670-66J00-000 |
US $128.06 |
||
|
111
|
111
36653-76G00-000 BRACKETH27A; 2005-05-01~2006-06-01 |
36653-76G00-000 |
US $3.28 |
||
|
112
|
112
01550-06123-000
Bolt
H27A; 2005-05-01~2006-06-01 |
01550-06123-000 |
— | ||
| replacements | |||||
|
112
|
112
01550-0612B-000 BOLTBolt, clamp H27A; 2005-05-01~2006-06-01 |
01550-0612B-000 |
from US $0.76 |
||
|
112
|
112
01550-0612A-000 BOLTH27A; 2005-05-01~2006-06-01 |
01550-0612A-000 |
from US $0.76 |
||
|
113
|
113
36691-65J00-000 WIRE,A/B PASSENGERオプシヨン; 2005-05-01~2006-06-01 |
36691-65J00-000 |
US $34.96 |
||
