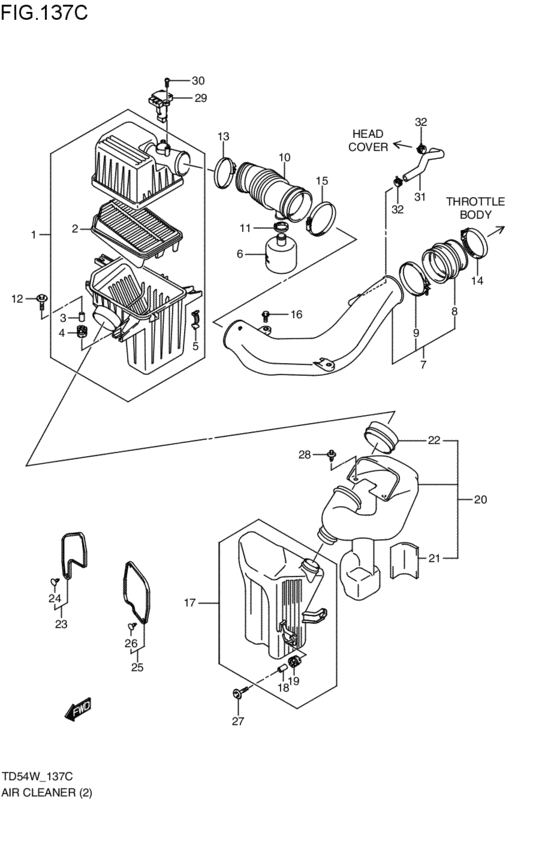

air cleaner (H27A; 2005-05-01~2006-06-01) Diagram Suzuki ESCUDO
- Year
- 2005 - 2011
- Sales region
- Japan
- Engine
- H27A
- transmission
- AT
- grade
- XS
- air bag
- 6AB
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
13700-66J00-000 CLEANER ASSY,AIRH27A; 2005-05-01~2006-06-01 |
13700-66J00-000 |
US $226.32 |
||
|
2
|
2
13780-65J00-000 ELEMENT,AIR CLEANERH27A; 2005-05-01~2006-06-01 |
13780-65J00-000 |
from US $21.65 |
||
|
3
|
3
13877-65D00-000 COLLAR,7.6X10X19.3H27A; 2005-05-01~2006-06-01 |
13877-65D00-000 |
US $3.04 |
||
|
4
|
4
13878-65D00-000 CUSHION,12.5X22X19.5H27A; 2005-05-01~2006-06-01 |
13878-65D00-000 |
US $2.74 |
||
|
5
|
5
13755-65D00-000 CLIP,AIR CLEANERH27A; 2005-05-01~2006-06-01 |
13755-65D00-000 |
from US $3.69 |
||
|
6
|
6
13761-66J10-000 RESONATORH27A; 2005-05-01~2006-06-01 |
13761-66J10-000 |
US $39.01 |
||
|
7
|
7
13830-66J00-000 PIPE,AIR INTAKEH27A; 2005-05-01~2006-06-01 |
13830-66J00-000 |
US $112.61 |
||
|
8
|
8
13833-66J00-000 JOINTH27A; 2005-05-01~2006-06-01 |
13833-66J00-000 |
from US $12.83 |
||
|
9
|
9
09402-82208-000 CLAMPH27A; 2005-05-01~2006-06-01 |
09402-82208-000 |
from US $9.62 |
||
|
10
|
10
13881-66J00-000 HOSE,AIR CLEANER OUTLETH27A; 2005-05-01~2006-06-01 |
13881-66J00-000 |
from US $42.98 |
||
|
11
|
11
13891-65J00-000 CLAMP,RESONATOR NO.2H27A; 2005-05-01~2006-06-01 |
13891-65J00-000 |
US $5.96 |
||
|
12
|
12
09116-06172-000 BOLT(6X30)Bolt (6x30) H27A; 2005-05-01~2006-06-01 |
09116-06172-000 |
from US $1.44 |
||
|
13
|
13
09402-82208-000 CLAMPH27A; 2005-05-01~2006-06-01 |
09402-82208-000 |
from US $9.62 |
||
|
14
|
14
09402-82511-000 CLAMPH27A; 2005-05-01~2006-06-01 |
09402-82511-000 |
US $65.90 |
||
|
15
|
15
09402-95502-000 CLAMPClamp, tank H27A; 2005-05-01~2006-06-01 |
09402-95502-000 |
from US $22.80 |
||
|
16
|
16
01550-06163-000
Bolt
H27A; 2005-05-01~2006-06-01 |
01550-06163-000 |
— | ||
| replacements | |||||
|
16
|
16
01550-0616B-000 BOLTH27A; 2005-05-01~2006-06-01 |
01550-0616B-000 |
from US $0.76 |
||
|
16
|
16
01550-0616A-000 BOLTH27A; 2005-05-01~2006-06-01 |
01550-0616A-000 |
from US $0.76 |
||
|
17
|
17
13761-66J00-000 RESONATORH27A; 2005-05-01~2006-06-01 |
13761-66J00-000 |
US $49.68 |
||
|
18
|
18
13877-65D00-000 COLLAR,7.6X10X19.3H27A; 2005-05-01~2006-06-01 |
13877-65D00-000 |
US $3.04 |
||
|
19
|
19
13878-65D00-000 CUSHION,12.5X22X19.5H27A; 2005-05-01~2006-06-01 |
13878-65D00-000 |
US $2.74 |
||
|
20
|
20
13820-66J00-000 PIPE,AIR CLNR SUCTIONH27A; 2005-05-01~2006-06-01 |
13820-66J00-000 |
US $53.73 |
||
|
21
|
21
13822-66J00-000 CUSHIONH27A; 2005-05-01~2006-06-01 |
13822-66J00-000 |
US $5.59 |
||
|
22
|
22
13825-65J00-000 JOINT,SUCTION PIPEH27A; 2005-05-01~2006-06-01 |
13825-65J00-000 |
from US $6.15 |
||
|
23
|
23
13840-65J00-000 COVER,LAMP SUPPORT HOLE,RH27A; 2005-05-01~2006-06-01 |
13840-65J00-000 |
from US $5.92 |
||
|
24
|
24
09409-04304-000 CLIPH27A; 2005-05-01~2006-06-01 |
09409-04304-000 |
from US $1.13 |
||
|
25
|
25
13850-65J00-000 COVER,LAMP SUPPORT HOLE,LH27A; 2005-05-01~2006-06-01 |
13850-65J00-000 |
US $6.62 |
||
|
26
|
26
09409-04304-000 CLIPH27A; 2005-05-01~2006-06-01 |
09409-04304-000 |
from US $1.13 |
||
|
27
|
27
09116-06172-000 BOLT(6X30)Bolt (6x30) H27A; 2005-05-01~2006-06-01 |
09116-06172-000 |
from US $1.44 |
||
|
28
|
28
09409-06322-5PK CLIP(BLACK)Clip (black) ブラック; H27A; 2005-05-01~2006-06-01 |
09409-06322-5PK |
from US $1.58 |
||
|
29
|
29
13800-66J00-000 SENSOR ASSY,MAIN AIR FLOWH27A; 2005-05-01~2006-06-01 |
13800-66J00-000 |
US $314.64 |
||
|
30
|
30
02112-04103-000
Screw 4x10
H27A; 2005-05-01~2006-06-01 |
02112-04103-000 |
— | ||
| replacement | |||||
|
30
|
30
02112-0410A-000 SCREWH27A; 2005-05-01~2006-06-01 |
02112-0410A-000 |
from US $2.04 |
||
|
31
|
31
11191-66J00-000 HOSE,BREATHERH27A; 2005-05-01~2006-06-01 |
11191-66J00-000 |
US $24 |
||
|
32
|
32
09401-18404-000 CLIPH27A; 2005-05-01~2006-06-01 |
09401-18404-000 |
from US $1.33 |
||
