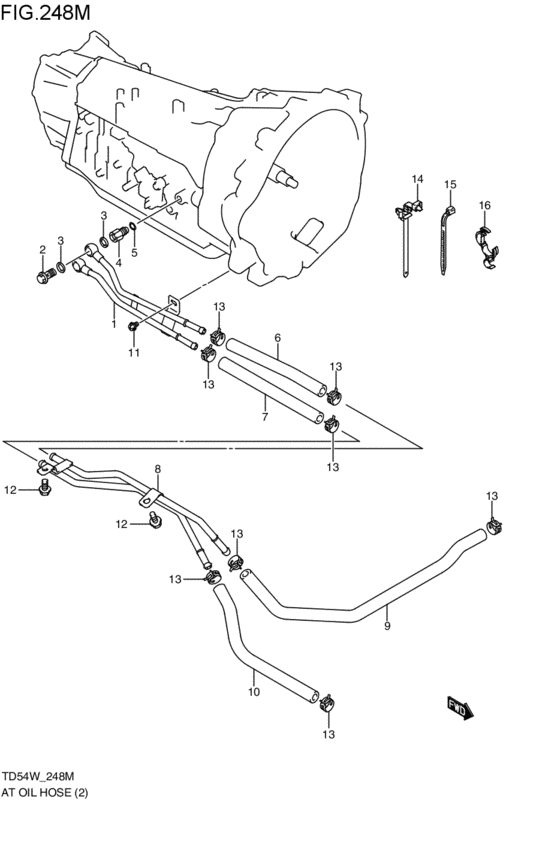

at - oil hose (AT:H27A; 2005-05-01~2006-06-01) Diagram Suzuki ESCUDO
- Year
- 2005 - 2011
- Sales region
- Japan
- Engine
- H27A
- transmission
- AT
- grade
- XS
- air bag
- 6AB
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
22910-64J10-000 PIPE,OIL NO.1AT:H27A; 2005-05-01~2006-06-01 |
22910-64J10-000 |
US $111.20 |
||
|
2
|
2
09360-14012-000 BOLT,14X27Bolt, union (14x27) AT:H27A; 2005-05-01~2006-06-01 |
09360-14012-000 |
from US $6.88 |
||
|
3
|
3
22913-65D30-000
Gasket
AT:H27A; 2005-05-01~2006-06-01 |
22913-65D30-000 |
— | ||
| replacements | |||||
|
3
|
3
22913-59J10-000 GASKET,14X20X0.9AT:H27A; 2005-05-01~2006-06-01 |
22913-59J10-000 |
from US $1.51 |
||
|
3
|
3
22910-65810-000 BOLT&GASKET SETAT:H27A; 2005-05-01~2006-06-01 |
22910-65810-000 |
from US $9.38 |
||
|
4
|
4
24732-53J10-000 UNION,OIL PIPEAT:H27A; 2005-05-01~2006-06-01 |
24732-53J10-000 |
US $22.40 |
||
|
5
|
5
24733-53J10-000 O-RING,OIL PIPE UNIONAT:H27A; 2005-05-01~2006-06-01 |
24733-53J10-000 |
US $1.60 |
||
|
6
|
6
22936-66H10-000 HOSE,OIL INLET NO.1AT:H27A; 2005-05-01~2006-06-01 |
22936-66H10-000 |
US $26.40 |
||
|
7
|
7
22935-68H10-000 HOSE,OIL NO.2AT:H27A; 2005-05-01~2006-06-01 |
22935-68H10-000 |
US $28.80 |
||
|
8
|
8
22920-64J10-000
パイプ,オイル,NO.2
AT:H27A; 2005-05-01~2006-06-01 |
22920-64J10-000 |
— | ||
| replacement | |||||
|
8
|
8
22920-64J11-000 PIPE,OILAT:H27A; 2005-05-01~2006-06-01 |
22920-64J11-000 |
from US $47.95 |
||
|
9
|
9
22933-64J30-000 HOSE,OIL NO.3AT:H27A; 2005-05-01~2006-06-01 |
22933-64J30-000 |
from US $20.61 |
||
|
10
|
10
22934-64J30-000 HOSE,OIL NO.4AT:H27A; 2005-05-01~2006-06-01 |
22934-64J30-000 |
from US $14.60 |
||
|
11
|
11
02162-06103-000
Bolt
AT:H27A; 2005-05-01~2006-06-01 |
02162-06103-000 |
— | ||
| replacement | |||||
|
11
|
11
02162-0610A-000 SCREWAT:H27A; 2005-05-01~2006-06-01 |
02162-0610A-000 |
from US $0.64 |
||
|
12
|
12
01550-08163-000
Bolt, holder
AT:H27A; 2005-05-01~2006-06-01 |
01550-08163-000 |
— | ||
| replacements | |||||
|
12
|
12
01550-0816B-000 BOLTAT:H27A; 2005-05-01~2006-06-01 |
01550-0816B-000 |
from US $0.91 |
||
|
12
|
12
01550-0816A-000 BOLTBolt, rear AT:H27A; 2005-05-01~2006-06-01 |
01550-0816A-000 |
from US $0.91 |
||
|
13
|
13
09401-15410-000 CLIPAT:H27A; 2005-05-01~2006-06-01 |
09401-15410-000 |
from US $2.24 |
||
|
14
|
14
09407-12404-000 CLAMP(L:140)AT:H27A; 2005-05-01~2006-06-01 |
09407-12404-000 |
US $2.08 |
||
|
15
|
15
09407-14403-000 CLAMP(L:125)Clamp, spark plug cap AT:H27A; 2005-05-01~2006-06-01 |
09407-14403-000 |
from US $2.08 |
||
|
16
|
16
09408-00210-000 CLAMPAT:H27A; 2005-05-01~2006-06-01 |
09408-00210-000 |
US $2.24 |
||
