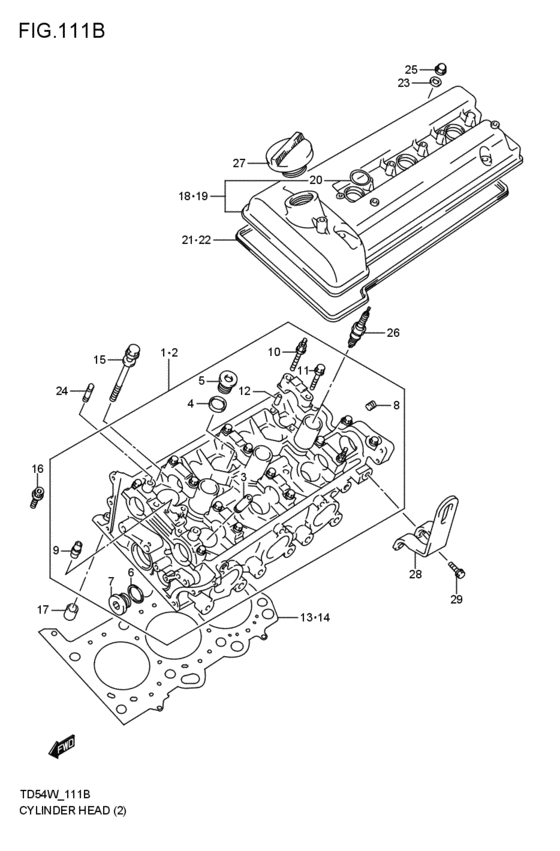

Cylinder head (H27A; 2005-05-01~2006-06-01) Diagram Suzuki ESCUDO
- Year
- 2005 - 2011
- Sales region
- Japan
- Engine
- H27A
- transmission
- AT
- grade
- XS
- air bag
- 6AB
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11101-66J00-000 HEAD ASSY,CYLINDER,RH27A; 2005-05-01~2006-06-01 |
11101-66J00-000 |
US $2,222.24 |
||
|
2
|
2
11103-66J00-000 HEAD ASSY,CYLINDER,LH27A; 2005-05-01~2006-06-01 |
11103-66J00-000 |
US $2,222.24 |
||
|
3
|
3
11115-65J00-001 GUIDE,VALVEH27A; 2005-05-01~2006-06-01 |
11115-65J00-001 |
from US $17.82 |
||
|
4
|
4
11216-77E00-000 GASKET,M18 PLUGH27A; 2005-05-01~2006-06-01 |
11216-77E00-000 |
from US $1.74 |
||
|
5
|
5
09248-18005-000 PLUGPlug, oil gallery H27A; 2005-05-01~2006-06-01 |
09248-18005-000 |
from US $10.15 |
||
| replacement | |||||
|
5
|
5
09248-18011-000 PLUG(18X8)Plug, oil gallery H27A; 2005-05-01~2006-06-01 |
09248-18011-000 |
from US $2.88 |
||
|
6
|
6
11217-85FA0-000 GASKET,M26 PLUGH27A; 2005-05-01~2006-06-01 |
11217-85FA0-000 |
from US $1.91 |
||
|
7
|
7
09248-26001-000 PLUG,M26H27A; 2005-05-01~2006-06-01 |
09248-26001-000 |
from US $7.36 |
||
|
8
|
8
09246-05006-000 PLUG(1/8PT,H:5.5)H27A; 2005-05-01~2006-06-01 |
09246-05006-000 |
from US $1.42 |
||
|
9
|
9
11130-85FA1-000 VALVE,OIL RELIEFH27A; 2005-05-01~2006-06-01 |
11130-85FA1-000 |
US $31.20 |
||
|
10
|
10
11148-85FA0-000 BOLT,CAMSHAFT HOUSING STUDH27A; 2005-05-01~2006-06-01 |
11148-85FA0-000 |
from US $4.88 |
||
|
11
|
11
09103-06132-000 BOLT(6X41)H27A; 2005-05-01~2006-06-01 |
09103-06132-000 |
from US $1.17 |
||
|
12
|
12
09206-08001-000 PIN(8X11)H27A; 2005-05-01~2006-06-01 |
09206-08001-000 |
from US $1.26 |
||
|
13
|
13
11141-52D01-000 GASKET,CYL HEAD,RH27A; 2005-05-01~2006-06-01 |
11141-52D01-000 |
from US $101.57 |
||
|
14
|
14
11142-52D01-000 GASKET,CYL HEAD,LH27A; 2005-05-01~2006-06-01 |
11142-52D01-000 |
US $238.40 |
||
|
15
|
15
11146-85FA1-000 BOLT,CYLINDER HEADH27A; 2005-05-01~2006-06-01 |
11146-85FA1-000 |
from US $6.44 |
||
|
16
|
16
07120-06253-000
Bolt, center
H27A; 2005-05-01~2006-06-01 |
07120-06253-000 |
— | ||
| replacement | |||||
|
16
|
16
07120-0625A-000 BOLTBolt, cylinder head (l25) H27A; 2005-05-01~2006-06-01 |
07120-0625A-000 |
from US $0.91 |
||
|
17
|
17
09206-14004-000 PIN(14X11.4X23)H27A; 2005-05-01~2006-06-01 |
09206-14004-000 |
from US $2.48 |
||
|
18
|
18
11170-66J00-000 COVER,CYLINDER HEAD,RH27A; 2005-05-01~2006-06-01 |
11170-66J00-000 |
US $375.36 |
||
|
19
|
19
11180-66J00-000 COVER,CYLINDER HEAD,LH27A; 2005-05-01~2006-06-01 |
11180-66J00-000 |
US $375.36 |
||
|
20
|
20
11179-81402-000 O-RINGH27A; 2005-05-01~2006-06-01 |
11179-81402-000 |
from US $1.82 |
||
|
21
|
21
11176-66J00-000 GASKET,CYL HEAD COVER,RH27A; 2005-05-01~2006-06-01 |
11176-66J00-000 |
from US $25.65 |
||
|
22
|
22
11186-66J00-000 GASKET,CYL HEAD COVER,LH27A; 2005-05-01~2006-06-01 |
11186-66J00-000 |
US $28.34 |
||
|
23
|
23
11188-85FA0-000 WASHER,CYL HEAD COVER SEALH27A; 2005-05-01~2006-06-01 |
11188-85FA0-000 |
from US $2.13 |
||
|
24
|
24
01421-06163-000
Bolt
H27A; 2005-05-01~2006-06-01 |
01421-06163-000 |
— | ||
| replacement | |||||
|
24
|
24
01421-0616A-000 BOLT,STUDH27A; 2005-05-01~2006-06-01 |
01421-0616A-000 |
from US $1.07 |
||
|
25
|
25
08313-20063-000
Nut
H27A; 2005-05-01~2006-06-01 |
08313-20063-000 |
— | ||
| replacements | |||||
|
25
|
25
08313-2006B-000 NUTH27A; 2005-05-01~2006-06-01 |
08313-2006B-000 |
from US $0.76 |
||
|
25
|
25
08313-2006A-000 NUTH27A; 2005-05-01~2006-06-01 |
08313-2006A-000 |
from US $1.04 |
||
|
26
|
26
09482-00550-000 PLUG,SPARK(NGK IFR6J11)NGK; H27A; 2005-05-01~2006-06-01 |
09482-00550-000 |
from US $25.84 |
||
|
27
|
27
16920-83G10-000
Cap comp,oil filler
H27A; 2005-05-01~2006-06-01 |
16920-83G10-000 |
— | ||
| replacements | |||||
|
27
|
27
16920-83G00-000
Cap,oil filler
H27A; 2005-05-01~2006-06-01 |
16920-83G00-000 |
— | ||
|
27
|
27
16920-83G01-000
CAP OIL FILLER
H27A; 2005-05-01~2006-06-01 |
16920-83G01-000 |
— | ||
|
28
|
28
11851-66J00-000 HOOK,ENGINEH27A; 2005-05-01~2006-06-01 |
11851-66J00-000 |
US $11.04 |
||
|
29
|
29
01550-08203-000
Bolt
H27A; 2005-05-01~2006-06-01 |
01550-08203-000 |
— | ||
| replacements | |||||
|
29
|
29
01550-0820B-000 BoltH27A; 2005-05-01~2006-06-01 |
01550-0820B-000 |
from US $0.91 |
||
|
29
|
29
01550-0820A-000 BOLTBolt, funnel bracket H27A; 2005-05-01~2006-06-01 |
01550-0820A-000 |
from US $0.96 |
||
