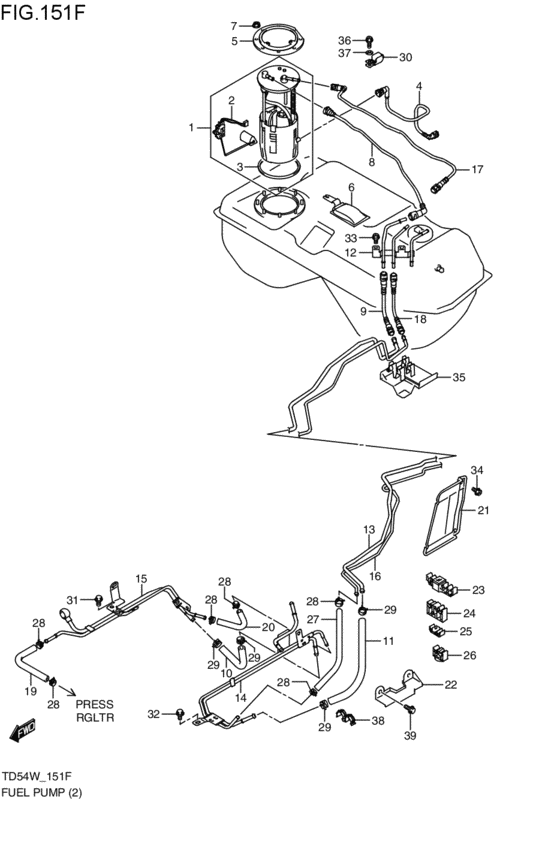

Fuel Pump (H27A; 2005-05-01~2006-06-01) Diagram Suzuki ESCUDO
- Year
- 2005 - 2011
- Sales region
- Japan
- Engine
- H27A
- transmission
- AT
- grade
- XS
- air bag
- 6AB
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
15100-65841-000
ポンプセット,フューエル
H27A; 2005-05-01~2005-10-01 |
15100-65841-000 |
— | ||
| replacement | |||||
|
1
|
1
15100-65842-000 PUMP SET,FUELH27A; 2005-05-01~2005-10-01 |
15100-65842-000 |
US $697.68 |
||
|
1
|
1
15100-65842-000 PUMP SET,FUELH27A; 2005-10-01~2006-06-01 |
15100-65842-000 |
US $697.68 |
||
|
2
|
2
34810-65J10-000 GAUGE ASSY,FUEL LEVELH27A; 2005-05-01~2006-06-01 |
34810-65J10-000 |
from US $75.44 |
||
|
3
|
3
15111-61J00-000 GASKET,FUEL PUMPH27A; 2005-05-01~2005-07-01 |
15111-61J00-000 |
US $14.08 |
||
|
3
|
3
15111-80J00-000 GASKET,FUEL PUMPH27A; 2005-08-01~2006-06-01 |
15111-80J00-000 |
from US $8.51 |
||
|
4
|
4
15112-65J00-000 PIPE,FUEL SUCTIONH27A; 2005-05-01~2006-06-01 |
15112-65J00-000 |
from US $31.46 |
||
|
5
|
5
15121-61J00-000 PLATE,FUEL PUMPH27A; 2005-05-01~2006-06-01 |
15121-61J00-000 |
US $10.56 |
||
|
6
|
6
15195-65J00-000 FILTER,FUEL SUCTIONH27A; 2005-05-01~2006-06-01 |
15195-65J00-000 |
from US $14.49 |
||
|
7
|
7
09159-06077-000 NUTH27A; 2005-05-01~2006-06-01 |
09159-06077-000 |
US $1.28 |
||
|
8
|
8
15814-65J00-000 PIPE,FUEL FEED PUMP TO PIPEポンプ ツー パイプ; H27A; 2005-05-01~2006-06-01 |
15814-65J00-000 |
from US $45.23 |
||
|
9
|
9
15815-65J00-000
パイプ,フューエル(フロア)
フロア; H27A; 2005-05-01~2005-05-01 |
15815-65J00-000 |
— | ||
|
9
|
9
15815-65J01-000
PIPE,FUEL FLOOR
フロア; H27A; 2005-05-01~2006-06-01 |
15815-65J01-000 |
— | ||
|
10
|
10
15817-66J00-000
HOSE,FUEL NO.2 TO NO.1
ナンバー ツー,ツー,ナンバー ワン; H27A; 2005-05-01~2006-06-01 |
15817-66J00-000 |
— | ||
|
11
|
11
15818-66J00-000 HOSE,FUEL BODY TO ENGボデー ツー エンジン; H27A; 2005-05-01~2006-06-01 |
15818-66J00-000 |
US $17.30 |
||
|
12
|
12
15820-65J00-000
パイプアッシ,フューエル(タンクサイド)
タンクサイド; H27A; 2005-05-01~2005-05-01 |
15820-65J00-000 |
— | ||
| replacements | |||||
|
12
|
12
15815-65J01-000
PIPE,FUEL FLOOR
タンクサイド; H27A; 2005-05-01~2005-05-01 |
15815-65J01-000 |
— | ||
|
12
|
12
15820-65J01-000 PIPE,FUEL,TANK SIDEタンクサイド; H27A; 2005-05-01~2005-05-01 |
15820-65J01-000 |
US $36.43 |
||
|
12
|
12
15865-65J01-000 PIPE,FUEL RTN FLOORタンクサイド; H27A; 2005-05-01~2005-05-01 |
15865-65J01-000 |
US $31.46 |
||
|
12
|
12
15820-65J01-000 PIPE,FUEL,TANK SIDEタンクサイド; H27A; 2005-05-01~2006-06-01 |
15820-65J01-000 |
US $36.43 |
||
|
13
|
13
15821-65J01-000
パイプ,フューエルフィード
H27A; 2005-05-01~2006-06-01 |
15821-65J01-000 |
— | ||
| replacement | |||||
|
13
|
13
15821-65J04-000 PIPE,FUELH27A; 2005-05-01~2006-06-01 |
15821-65J04-000 |
US $111.20 |
||
|
14
|
14
15830-66J00-000
パイプ,フューエル,NO.2
H27A; 2005-05-01~2005-07-01 |
15830-66J00-000 |
— | ||
| replacement | |||||
|
14
|
14
15830-66J01-000 PIPE,FUEL NO.2H27A; 2005-05-01~2005-07-01 |
15830-66J01-000 |
US $65.14 |
||
|
14
|
14
15830-66J01-000 PIPE,FUEL NO.2H27A; 2005-07-01~2006-06-01 |
15830-66J01-000 |
US $65.14 |
||
|
15
|
15
15840-66J00-000 PIPE,FUEL NO.1H27A; 2005-05-01~2006-06-01 |
15840-66J00-000 |
US $53.73 |
||
|
16
|
16
15861-65J01-000
パイプ,フューエルリターン
H27A; 2005-05-01~2006-06-01 |
15861-65J01-000 |
— | ||
| replacement | |||||
|
16
|
16
15861-65J04-000 PIPE,FUEL RTNH27A; 2005-05-01~2006-06-01 |
15861-65J04-000 |
US $99.20 |
||
|
17
|
17
15864-65J00-000 PIPE,FUEL RTN,PIPE TO PUMPパイプ ツー ポンプ; H27A; 2005-05-01~2006-06-01 |
15864-65J00-000 |
US $55.20 |
||
|
18
|
18
15865-65J00-000
パイプ,フューエルリターン(フロア)
フロア; H27A; 2005-05-01~2005-05-01 |
15865-65J00-000 |
— | ||
|
18
|
18
15865-65J01-000 PIPE,FUEL RTN FLOORフロア; H27A; 2005-05-01~2006-06-01 |
15865-65J01-000 |
US $31.46 |
||
|
19
|
19
15866-66J00-000 HOSE,FUEL RTN ENG SIDEエンジン サイド; H27A; 2005-05-01~2006-06-01 |
15866-66J00-000 |
US $15.24 |
||
|
20
|
20
15867-66J00-000
HOSE,FUEL RTN NO.1 TO NO.2
ナンバー ワン,ツー,ナンバー ツー; H27A; 2005-05-01~2006-06-01 |
15867-66J00-000 |
— | ||
|
21
|
21
15871-65J00-000 COVER,FUEL PIPEH27A; 2005-05-01~2006-06-01 |
15871-65J00-000 |
US $5.89 |
||
|
22
|
22
15874-66J00-000
COVER,FUEL HOSE
H27A; 2005-05-01~2006-06-01 |
15874-66J00-000 |
— | ||
|
23
|
23
15892-65J00-000 CLAMP,FUEL PIPEH27A; 2005-05-01~2006-06-01 |
15892-65J00-000 |
US $3.81 |
||
|
24
|
24
15893-65J00-000 CLAMP,FUEL PIPEH27A; 2005-05-01~2006-06-01 |
15893-65J00-000 |
US $4.16 |
||
|
25
|
25
15894-65J00-000 CLAMP,FUEL PIPEH27A; 2005-05-01~2006-06-01 |
15894-65J00-000 |
US $3.95 |
||
|
26
|
26
15895-65J00-000 CLAMP,FUEL PIPEH27A; 2005-05-01~2006-06-01 |
15895-65J00-000 |
US $3.09 |
||
|
27
|
27
09356-55117-600 HOSE(5.5X11.5X600)Hose, fuel rtn (body side) L:600>240; H27A; 2005-05-01~2006-06-01 |
09356-55117-600 |
US $69.60 |
||
|
28
|
28
09401-10409-000 CLIPH27A; 2005-05-01~2006-06-01 |
09401-10409-000 |
from US $1.12 |
||
|
29
|
29
09401-11420-000 CLIPH27A; 2005-05-01~2006-06-01 |
09401-11420-000 |
US $1.52 |
||
|
30
|
30
09403-14413-000
CLAMP
H27A; 2005-05-01~2006-06-01 |
09403-14413-000 |
— | ||
|
31
|
31
01550-06123-000
Bolt
H27A; 2005-05-01~2006-06-01 |
01550-06123-000 |
— | ||
| replacements | |||||
|
31
|
31
01550-0612B-000 BOLTBolt, clamp H27A; 2005-05-01~2006-06-01 |
01550-0612B-000 |
from US $0.76 |
||
|
31
|
31
01550-0612A-000 BOLTH27A; 2005-05-01~2006-06-01 |
01550-0612A-000 |
from US $0.76 |
||
|
32
|
32
01550-06123-000
Bolt
H27A; 2005-05-01~2006-06-01 |
01550-06123-000 |
— | ||
| replacements | |||||
|
32
|
32
01550-0612B-000 BOLTBolt, clamp H27A; 2005-05-01~2006-06-01 |
01550-0612B-000 |
from US $0.76 |
||
|
32
|
32
01550-0612A-000 BOLTH27A; 2005-05-01~2006-06-01 |
01550-0612A-000 |
from US $0.76 |
||
|
33
|
33
02162-06103-000
Bolt
H27A; 2005-05-01~2006-06-01 |
02162-06103-000 |
— | ||
| replacement | |||||
|
33
|
33
02162-0610A-000 SCREWH27A; 2005-05-01~2006-06-01 |
02162-0610A-000 |
from US $0.64 |
||
|
34
|
34
02162-06123-000
Bolt (6x12)
H27A; 2005-05-01~2006-06-01 |
02162-06123-000 |
— | ||
| replacements | |||||
|
34
|
34
02162-0612B-000 SCREWBolt H27A; 2005-05-01~2006-06-01 |
02162-0612B-000 |
from US $0.80 |
||
|
34
|
34
02162-0612A-000 SCREWBolt, bracket H27A; 2005-05-01~2006-06-01 |
02162-0612A-000 |
from US $0.80 |
||
|
35
|
35
15872-65J00-000 PROTECTOR,FUEL PIPEH27A; 2005-05-01~2006-06-01 |
15872-65J00-000 |
US $4.38 |
||
|
36
|
36
09115-06001-000
Bolt, lh
H27A; 2005-05-01~2006-06-01 |
09115-06001-000 |
— | ||
| replacement | |||||
|
36
|
36
09115-06005-000 BOLT(6X16)H27A; 2005-05-01~2006-06-01 |
09115-06005-000 |
US $1.28 |
||
|
37
|
37
09160-06126-000 WASHER(6.5X14X2)H27A; 2005-05-01~2006-06-01 |
09160-06126-000 |
from US $0.80 |
||
|
38
|
38
09408-00083-000 CLAMPH27A; 2005-05-01~2006-06-01 |
09408-00083-000 |
US $17.30 |
||
|
39
|
39
01550-06163-000
Bolt
H27A; 2005-05-01~2006-06-01 |
01550-06163-000 |
— | ||
| replacements | |||||
|
39
|
39
01550-0616B-000 BOLTH27A; 2005-05-01~2006-06-01 |
01550-0616B-000 |
from US $0.76 |
||
|
39
|
39
01550-0616A-000 BOLTH27A; 2005-05-01~2006-06-01 |
01550-0616A-000 |
from US $0.76 |
||
