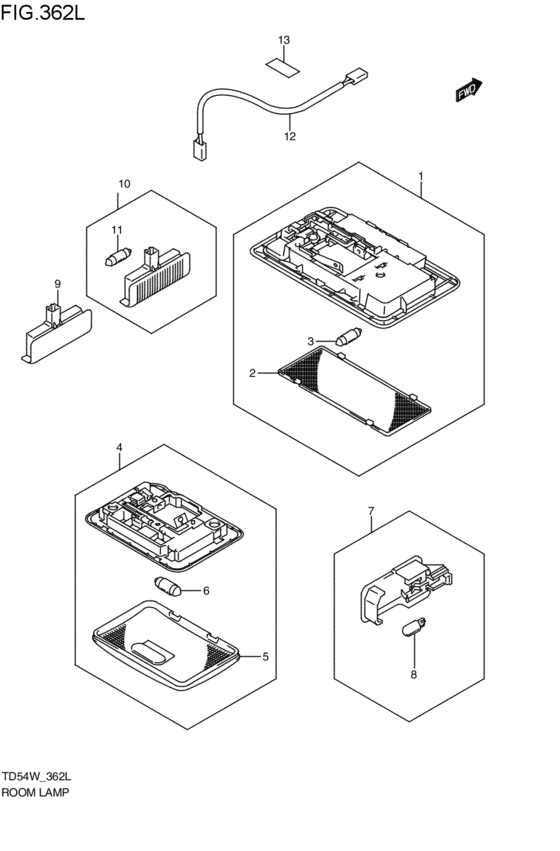

interior lamp (2005-05-01~2006-06-01) Diagram Suzuki ESCUDO
- Year
- 2005 - 2011
- Sales region
- Japan
- Engine
- H27A
- transmission
- AT
- grade
- XS
- air bag
- 6AB
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
36210-65J00-6GS
ランプアッシ,ルーム(グレー)
グレ-; 2005-05-01~2006-06-01 |
36210-65J00-6GS |
— | ||
| replacements | |||||
|
1
|
1
36210-65J02-6GS
LAMP ASSY,ROOM
グレ-; 2005-05-01~2006-06-01 |
36210-65J02-6GS |
— | ||
|
1
|
1
36210-65J03-6GS Lamp Assy,roomグレ-; 2005-05-01~2006-06-01 |
36210-65J03-6GS |
from US $40.11 |
||
|
2
|
2
36212-65J00-000
レンズ
2005-05-01~2006-06-01 |
36212-65J00-000 |
— | ||
| replacement | |||||
|
2
|
2
36212-65J01-000 LENS2005-05-01~2006-06-01 |
36212-65J01-000 |
US $161.60 |
||
|
3
|
3
09471-12181-000 BULB(12V10W)2005-05-01~2006-06-01 |
09471-12181-000 |
US $38.30 |
||
|
4
|
4
36210-58J00-6GS
Lamp assy,rr room
グレ-; 2005-05-01~2006-06-01 |
36210-58J00-6GS |
— | ||
| replacement | |||||
|
4
|
4
36210-58J03-6GS LAMP ASSY,RR ROOMグレ-; 2005-05-01~2006-06-01 |
36210-58J03-6GS |
from US $17.12 |
||
|
5
|
5
36212-58J00-000 LENS2005-05-01~2006-06-01 |
36212-58J00-000 |
US $5.92 |
||
|
6
|
6
09471-12181-000 BULB(12V10W)2005-05-01~2006-06-01 |
09471-12181-000 |
US $38.30 |
||
|
7
|
7
36210-54G20-000 LAMP ASSY,LUGGAGE ROOM2005-05-01~2006-06-01 |
36210-54G20-000 |
US $16.52 |
||
|
8
|
8
09471-12081-000
Bulb (12v,5w)
TOKAI DENSO; 2005-05-01~2006-06-01 |
09471-12081-000 |
— | ||
| replacement | |||||
|
8
|
8
09471-12216-000 BULB(12V5W)Bulb (12v5w) TOKAI DENSO; 2005-05-01~2006-06-01 |
09471-12216-000 |
from US $2.84 |
||
|
10
|
10
36550-65J50-000 LAMP ASSY,DR ILLUMXG,XGF,XS; 2005-05-01~2006-06-01 |
36550-65J50-000 |
from US $22.41 |
||
|
11
|
11
09471-12073-000 BULB(12V,5W)TOKAI DENSO; XG,XGF,XS; 2005-05-01~2006-06-01 |
09471-12073-000 |
from US $2.40 |
||
|
12
|
12
36826-65J00-000
ワイヤ,ドアランプ
XG,XGF,XS; 2005-05-01~2006-06-01 |
36826-65J00-000 |
— | ||
| replacement | |||||
|
12
|
12
36826-65J01-000 WIRE,DR LAMPXG,XGF,XS; 2005-05-01~2006-06-01 |
36826-65J01-000 |
US $26.40 |
||
|
13
|
13
36930-82010-000 COVER,HARNESSCover, roof wire XG,XGF,XS; 2005-05-01~2006-06-01 |
36930-82010-000 |
from US $1.73 |
||
