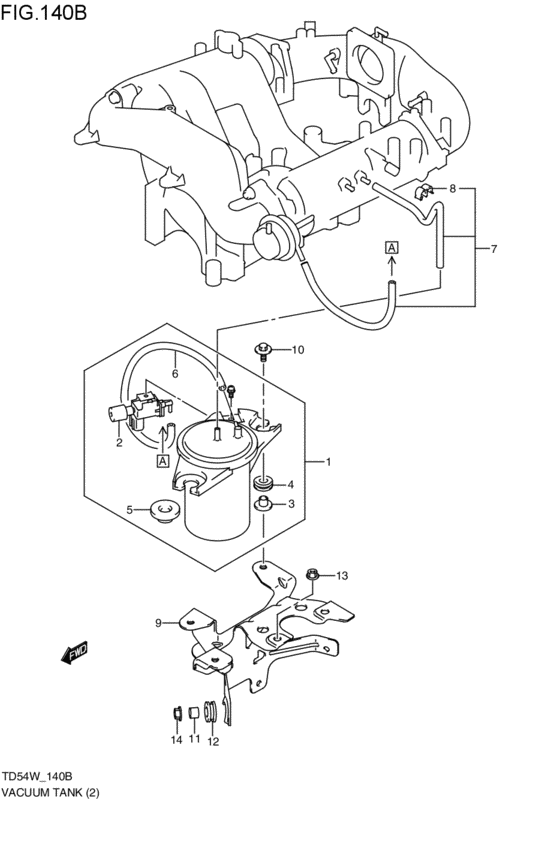

バキユ - ムタンク (H27A; 2005-05-01~2006-06-01) Diagram Suzuki ESCUDO
- Year
- 2005 - 2011
- Sales region
- Japan
- Engine
- H27A
- transmission
- AT
- grade
- XS
- air bag
- 6AB
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
13480-65J00-000 TANK ASSY,VACUUMH27A; 2005-05-01~2006-06-01 |
13480-65J00-000 |
US $211.20 |
||
|
2
|
2
1348A-65J00-000 VALVE,VACUUM SWITCHINGH27A; 2005-05-01~2006-06-01 |
1348A-65J00-000 |
US $111.20 |
||
|
3
|
3
13484-65J00-000 COLLARH27A; 2005-05-01~2006-06-01 |
13484-65J00-000 |
US $6.15 |
||
|
4
|
4
13488-65J00-000 CUSHION,NO.1H27A; 2005-05-01~2006-06-01 |
13488-65J00-000 |
US $5.12 |
||
|
5
|
5
13489-65J00-000 CUSHION,NO.2H27A; 2005-05-01~2006-06-01 |
13489-65J00-000 |
US $5.12 |
||
|
6
|
6
09355-35754-601
HOSE(3.5X7.5X601)
L:601>230; H27A; 2005-05-01~2006-06-01 |
09355-35754-601 |
— | ||
| replacement | |||||
|
6
|
6
09355-35006-601 Hose(3.5X7.5X601)L:601>230; H27A; 2005-05-01~2006-06-01 |
09355-35006-601 |
from US $5.78 |
||
|
7
|
7
13495-66J00-000 HOSE ASSY,VACUUMH27A; 2005-05-01~2006-06-01 |
13495-66J00-000 |
US $21.60 |
||
|
8
|
8
09408-00033-000 CLAMPClamp H27A; 2005-05-01~2006-06-01 |
09408-00033-000 |
from US $1.60 |
||
|
9
|
9
13485-65J00-000
ブラケット,バキュームタンク
H27A; 2005-05-01~2006-06-01 |
13485-65J00-000 |
— | ||
| replacement | |||||
|
9
|
9
13485-65J02-000 BRACKET,VACUUM TANKH27A; 2005-05-01~2006-06-01 |
13485-65J02-000 |
US $19.14 |
||
|
10
|
10
09116-06167-000 BOLT(6X20)Bolt (6x20) H27A; 2005-05-01~2006-06-01 |
09116-06167-000 |
from US $1.37 |
||
|
11
|
11
09180-06132-000 SPACER(6.5X13.5X7.5)Spacer (6.5x13.5x7.5) H27A; 2005-05-01~2006-06-01 |
09180-06132-000 |
US $34.20 |
||
|
12
|
12
09320-12036-000 CUSHIONCushion, holder H27A; 2005-05-01~2006-06-01 |
09320-12036-000 |
from US $1.92 |
||
|
13
|
13
08316-10063-000
Nut
H27A; 2005-05-01~2006-06-01 |
08316-10063-000 |
— | ||
| replacement | |||||
|
13
|
13
08316-1006B-000 NUTH27A; 2005-05-01~2006-06-01 |
08316-1006B-000 |
from US $0.76 |
||
|
14
|
14
09159-06081-000 NUTH27A; 2005-05-01~2006-06-01 |
09159-06081-000 |
US $12.50 |
||
