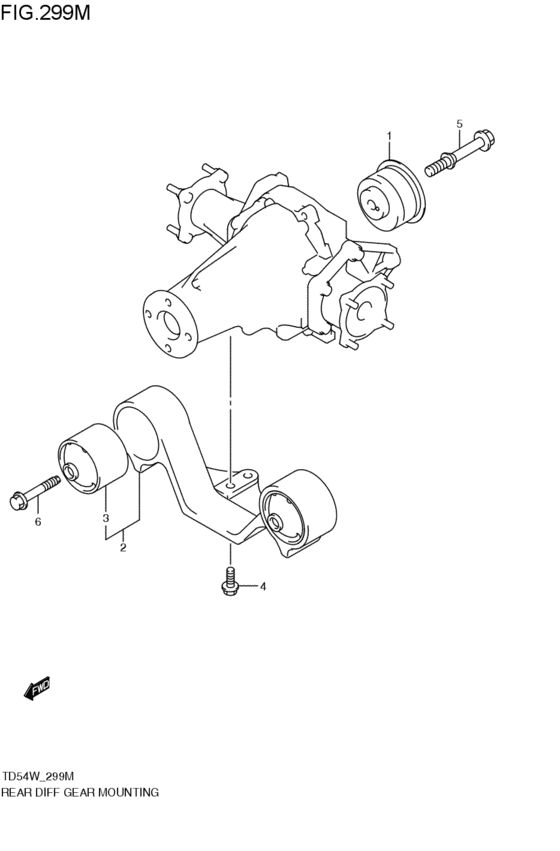

リヤデファレンシャルマウンチング (2005-05-01~2006-06-01) Diagram Suzuki ESCUDO
- Year
- 2005 - 2011
- Sales region
- Japan
- Engine
- H27A
- transmission
- AT
- grade
- XS
- air bag
- 6AB
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
27561-66J20-000
Mounting comp,rr diff rear
H27A; 2005-05-01~2006-06-01 |
27561-66J20-000 |
— | ||
| replacement | |||||
|
1
|
1
27561-66J21-000 MOUNTING,RR DIFF RRH27A; 2005-05-01~2006-06-01 |
27561-66J21-000 |
from US $51.30 |
||
|
2
|
2
27680-66J40-000 BRACKET,RR DIFF MTG FRONT2005-05-01~2006-06-01 |
27680-66J40-000 |
US $207.92 |
||
|
3
|
3
27562-66J20-000 MOUNTING,RR DIFF FR2005-05-01~2006-06-01 |
27562-66J20-000 |
from US $55.87 |
||
|
4
|
4
01550-10403-000
Bolt
2005-05-01~2006-06-01 |
01550-10403-000 |
— | ||
| replacements | |||||
|
4
|
4
01550-1040B-000 BOLT2005-05-01~2006-06-01 |
01550-1040B-000 |
from US $3.74 |
||
|
4
|
4
01550-1040A-000 BOLT2005-05-01~2006-06-01 |
01550-1040A-000 |
from US $1.12 |
||
|
5
|
5
27692-66J00-000 BOLT,RR DIFF MTG REAR2005-05-01~2006-06-01 |
27692-66J00-000 |
US $25.60 |
||
|
6
|
6
09135-14015-000 BOLT(14X92)2005-05-01~2006-06-01 |
09135-14015-000 |
from US $8.51 |
||
