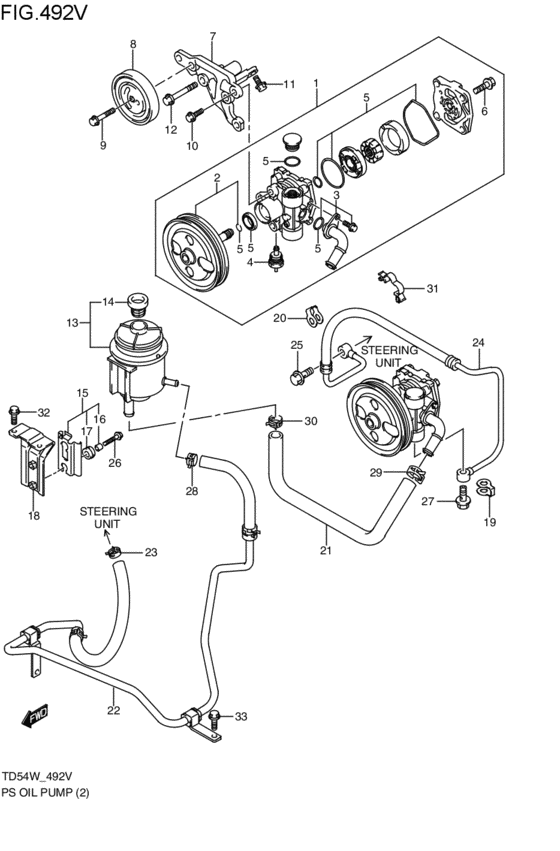

power steering oil pump (H27A; 2005-05-01~2006-06-01) Diagram Suzuki ESCUDO
- Year
- 2005 - 2011
- Sales region
- Japan
- Engine
- H27A
- transmission
- AT
- grade
- XS
- air bag
- 6AB
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
49100-66J00-000
ポンプアッシ,パワーステアリング
H27A; 2005-05-01~2006-06-01 |
49100-66J00-000 |
— | ||
| replacement | |||||
|
1
|
1
49100-66J01-000 PUMP ASSY,POWER STEERINGH27A; 2005-05-01~2006-06-01 |
49100-66J01-000 |
US $675.84 |
||
|
2
|
2
49111-66J00-000 SHAFT ASSY SETH27A; 2005-05-01~2006-06-01 |
49111-66J00-000 |
US $138.74 |
||
|
3
|
3
49112-66J00-000
CONNECTOR SET
H27A; 2005-05-01~2006-06-01 |
49112-66J00-000 |
— | ||
|
4
|
4
49113-65D00-000 TERMINAL SETH27A; 2005-05-01~2006-06-01 |
49113-65D00-000 |
US $40.80 |
||
|
5
|
5
49114-75J00-000 SEAL SETH27A; 2005-05-01~2006-06-01 |
49114-75J00-000 |
US $54.72 |
||
|
6
|
6
49115-56B30-000 BOLT SETH27A; 2005-05-01~2006-06-01 |
49115-56B30-000 |
US $10.56 |
||
|
7
|
7
49120-65D30-000 BRACKET,POWER STRG PUMPH27A; 2005-05-01~2006-06-01 |
49120-65D30-000 |
US $110.03 |
||
|
8
|
8
49160-66J00-000
プーリ,ベルトテンション
H27A; 2005-05-01~2006-06-01 |
49160-66J00-000 |
— | ||
| replacement | |||||
|
8
|
8
49160-77E01-000 PULLEY,BELT TENSIONH27A; 2005-05-01~2006-06-01 |
49160-77E01-000 |
from US $184.28 |
||
|
9
|
9
09103-08071-000 BOLT(8X36)H27A; 2005-05-01~2006-06-01 |
09103-08071-000 |
from US $2.40 |
||
|
10
|
10
01550-08253-000
Bolt, rear
H27A; 2005-05-01~2006-06-01 |
01550-08253-000 |
— | ||
| replacements | |||||
|
10
|
10
01550-0825B-000 BOLTH27A; 2005-05-01~2006-06-01 |
01550-0825B-000 |
from US $0.96 |
||
|
10
|
10
01550-0825A-000 BOLTH27A; 2005-05-01~2006-06-01 |
01550-0825A-000 |
from US $1.06 |
||
|
11
|
11
01550-10253-000
Bolt
H27A; 2005-05-01~2006-06-01 |
01550-10253-000 |
— | ||
| replacements | |||||
|
11
|
11
01550-1025B-000 BoltBolt, rr swgarm bracket, l H27A; 2005-05-01~2006-06-01 |
01550-1025B-000 |
from US $5.59 |
||
|
11
|
11
01550-1025A-000 BOLTBolt, drive gear H27A; 2005-05-01~2006-06-01 |
01550-1025A-000 |
from US $1.06 |
||
|
12
|
12
01550-10603-000
Bolt
H27A; 2005-05-01~2006-06-01 |
01550-10603-000 |
— | ||
| replacements | |||||
|
12
|
12
01550-1060B-000 BoltH27A; 2005-05-01~2006-06-01 |
01550-1060B-000 |
US $1.60 |
||
|
12
|
12
01550-1060A-000 BoltH27A; 2005-05-01~2006-06-01 |
01550-1060A-000 |
from US $1.60 |
||
|
13
|
13
49140-65J00-000 TANK ASSY,POWER STEERING OILH27A; 2005-05-01~2006-06-01 |
49140-65J00-000 |
from US $67.59 |
||
|
14
|
14
49142-65D00-000 CAP,PS OIL TANKH27A; 2005-05-01~2006-06-01 |
49142-65D00-000 |
from US $5.02 |
||
|
15
|
15
49150-60G00-000 BRACKET ASSY,PS TANKH27A; 2005-05-01~2006-06-01 |
49150-60G00-000 |
US $10.16 |
||
|
16
|
16
09180-06038-000 SPACER(6.1X9X7.5)Spacer (6.1x9x7.5) H27A; 2005-05-01~2006-06-01 |
09180-06038-000 |
from US $1.52 |
||
|
17
|
17
09320-08501-000 CUSHIONH27A; 2005-05-01~2006-06-01 |
09320-08501-000 |
from US $5.17 |
||
|
18
|
18
49152-65J00-000 BRACKET,PS TANK NO.2H27A; 2005-05-01~2006-06-01 |
49152-65J00-000 |
US $7.62 |
||
|
19
|
19
49211-63G03-000 GASKET,PRESSURE PIPEH27A; 2005-05-01~2006-06-01 |
49211-63G03-000 |
US $4.96 |
||
|
20
|
20
49211-65J00-000 GASKET,GEAR BOXH27A; 2005-05-01~2006-06-01 |
49211-65J00-000 |
from US $6.95 |
||
|
21
|
21
49214-66J00-000 HOSE,SUCTIONH27A; 2005-05-01~2006-06-01 |
49214-66J00-000 |
from US $28.01 |
||
|
22
|
22
49220-65J00-000
ホースアッシ,リターン
H27A; 2005-05-01~2006-06-01 |
49220-65J00-000 |
— | ||
| replacement | |||||
|
22
|
22
49220-65J02-000 HOSE ASSY,RETURNH27A; 2005-05-01~2006-06-01 |
49220-65J02-000 |
from US $99.63 |
||
|
23
|
23
49225-65D10-000 CLAMP,RETURN GEAR SIDEH27A; 2005-05-01~2006-06-01 |
49225-65D10-000 |
US $2.98 |
||
|
24
|
24
49230-66J00-000
ホース,プレッシャ
H27A; 2005-05-01~2006-06-01 |
49230-66J00-000 |
— | ||
| replacement | |||||
|
24
|
24
49230-66J01-000
HOSE,PRESSURE
H27A; 2005-05-01~2006-06-01 |
49230-66J01-000 |
— | ||
|
25
|
25
49237-65J00-000 BOLT,UNION GEAR BOXH27A; 2005-05-01~2006-06-01 |
49237-65J00-000 |
from US $6.77 |
||
|
26
|
26
09136-06133-000 BOLT(6X16)Screw H27A; 2005-05-01~2006-06-01 |
09136-06133-000 |
US $12.50 |
||
|
27
|
27
09360-16003-000 UNIONH27A; 2005-05-01~2006-06-01 |
09360-16003-000 |
from US $5.94 |
||
|
28
|
28
09401-15404-000 CLIPH27A; 2005-05-01~2006-06-01 |
09401-15404-000 |
from US $1.06 |
||
|
29
|
29
09401-20405-000 CLIPClip, tank H27A; 2005-05-01~2006-06-01 |
09401-20405-000 |
from US $5.56 |
||
|
30
|
30
09401-20405-000 CLIPClip, tank H27A; 2005-05-01~2006-06-01 |
09401-20405-000 |
from US $5.56 |
||
|
31
|
31
09408-00151-000 CLAMPH27A; 2005-05-01~2006-06-01 |
09408-00151-000 |
US $16.90 |
||
|
32
|
32
02162-06123-000
Bolt (6x12)
H27A; 2005-05-01~2006-06-01 |
02162-06123-000 |
— | ||
| replacements | |||||
|
32
|
32
02162-0612B-000 SCREWBolt H27A; 2005-05-01~2006-06-01 |
02162-0612B-000 |
from US $0.80 |
||
|
32
|
32
02162-0612A-000 SCREWBolt, bracket H27A; 2005-05-01~2006-06-01 |
02162-0612A-000 |
from US $0.80 |
||
|
33
|
33
02162-06123-000
Bolt (6x12)
H27A; 2005-05-01~2006-06-01 |
02162-06123-000 |
— | ||
| replacements | |||||
|
33
|
33
02162-0612B-000 SCREWBolt H27A; 2005-05-01~2006-06-01 |
02162-0612B-000 |
from US $0.80 |
||
|
33
|
33
02162-0612A-000 SCREWBolt, bracket H27A; 2005-05-01~2006-06-01 |
02162-0612A-000 |
from US $0.80 |
||
